• Model NO.：P600
• Application：Construction
• Disc(Wheel) Type：Claw Discs
• Material：Steel
• Working Style：Grain
• Disc Diameter：600mm
• Variable Speed：With Variable Speed
• Power：7.5kw,10p
• Voltage：380V
• Rotation Speed：0-1800rpm
• Working Width：600mm
• Water Tank Volume：60L
• Weight：220kgs
• Claw Discs Size：14mm
• Motor：Siemens Motor
• Motor Shell：Aluminium Shell
• Water Tank Material：304 Stainless Steel
• Display Mode：LED Display
• Vacuum Function：Yes
• Structure：Cast Aluminium
• Gearbox Type：Biax
• Dry/Wet Use：Yes
• Transport Package：Packing in Wooden Cases
• Specification：Working width: 600cm*600cm
• Trademark：Pivot
• Origin：China
• HS Code：8205590000
• Production Capacity：60000PCS,Year
• Package size per unit product：1300.00cm * 860.00cm * 1150.00cm
• Gross weight per unit product：350.000kg

Basic Info.

Model NO. P600 Application Construction Disc(Wheel) Type Claw Discs Material Steel Working Style Grain Disc Diameter 600mm Variable Speed With Variable Speed Power 7.5kw/10p Voltage 380V Rotation Speed 0-1800rpm Working Width 600mm Water Tank Volume 60L Weight 220kgs Claw Discs Size 14mm Motor Siemens Motor Motor Shell Aluminium Shell Water Tank Material 304 Stainless Steel Display Mode LED Display Vacuum Function Yes Structure Cast Aluminium Gearbox Type Biax Dry/Wet Use Yes Transport Package Packing in Wooden Cases Specification Working width: 600cm*600cm Trademark Pivot Origin China HS Code 8205590000 Production Capacity 60000PCS/Year

Packaging & Delivery

Package size per unit product 1300.00cm * 860.00cm * 1150.00cm Gross weight per unit product 350.000kg

Product Description

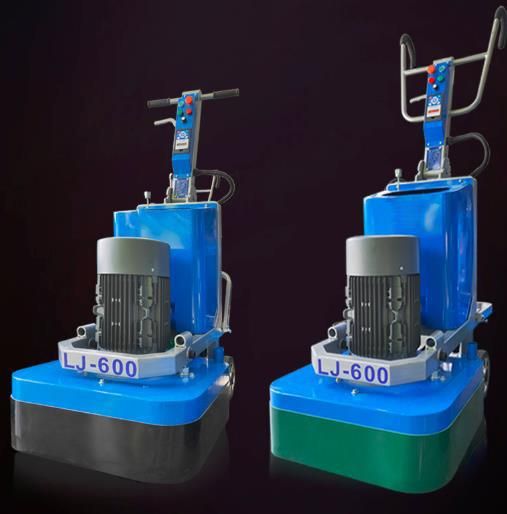

Part I: Introduction of the Floor Grinder Machine

1. Disc plate, counter rotate, grind and polish surface excellently;
2. Frequency converter could change the motor speed, for meet different requirements of grinding;
3. All aluminum alloy gear box, completely gear driven for superior durability and reliability.
4. Ergonomically designed handles provide improved handling and comfort;
5. Vacuum port allows for dust-free dry grinding;best industrial vacuum cleaner for floor grinder;
6. Two-position wheel carriage for grinding and easy transport.


Part II: Technical Parameter

Model: P600	Power: 7.5kW/10P
Voltage: 380V	Speed: 0-1800RPM
Working width:600*600cm	Weight: 230KG

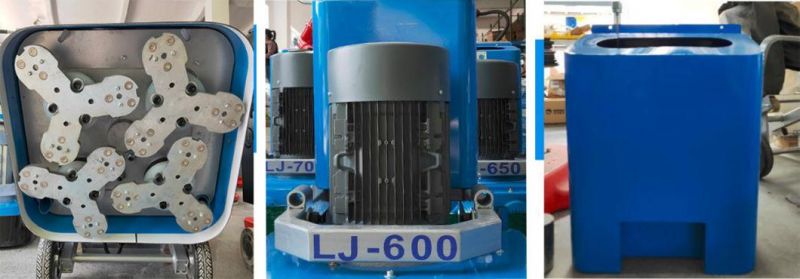

Part III: Performance Characteristics
1. Claw Plate
14mm thickened claw plate, grinding to the edge, without trimming.

2. Siemens Motor
Strong power, stable output power. Durable, good heat dissipation of aluminum shell motor.

3. Water Tank
304 stainless steel water tank is strong and durable.

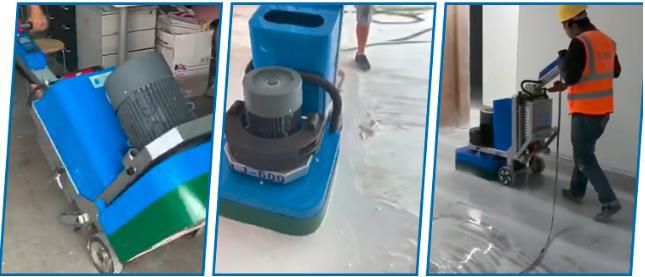

Part IV: Application

For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...

Available abrasive:

Diamond resin pads
Diamond grinding shoes
Metal diamond grinding discs

Part V: FAQ
Q1:What are the advantages of your products compared with other products?
A1:Our products are excellent in terms of productivity, handling, reliability and construction results.Laser cutting and aluminum casing gear box make the machine parts more accurate. We make the machine, polishing pads and chemical, so we can offer you the full set of product you need for the floor.

Q2.What is the payment?
A2. T/T, Western Union, Wechat

Q3: How long your product's warranty ?
A3: One year warranty .

Q4: What is your MOQ ?
A4: 1 set

Q5: What is your packaging ?
A5: We package in carton with iron frame.

Q6 :Can you customize the machine for the customer?
A6:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us

Q7: What is your delivery time ?
A7: 7~20 days ( according to the total quantity
