Resin Bond Mesh Diamond, Friable Diamond
Henan E-Grind Abrasives Co., Ltd.- Natural Abrasive Type:Natural Diamond
- Artificial Abrasive Type:Corundum Abrasives
- Application:Metal Parts
- Function:Surface Finish
- Source:Artificial Abrasives
- Particle Size:Powder
Base Info
- Model NO.:EA-R15, EA-R23, EA-R21, ED-B100
- Hardness:Superabrasive
- Transport Package:Box
- Specification:60,80 through 400,500
- Trademark:E-Grind
- Origin:China
- HS Code:7105102000
- Production Capacity:3000000cts,Year
Description
Basic Info.
Model NO. EA-R15, EA-R23, EA-R21, ED-B100 Hardness Superabrasive Transport Package Box Specification 60/80 through 400/500 Trademark E-Grind Origin China HS Code 7105102000 Production Capacity 3000000cts/YearProduct Description
Friable DiamondEach Particle is with sub-crystal structure. Irregular and Very rough surface. New cutting edges come out during working.
Also available in electroless plating of both nickel (30% and 56% by wt.) and copper (50% by wt.) allowing for better crystal retention in both phenolic and polyimide bond systems.
Application:
For Resin Bond system
Application: grinding tungsten carbide, ceramics, glass, and other non-metal materials.
EA-R15
Rough and very irregular, Highest Friable, Yellow Green Color
Best self-sharpening performance and high thermal stability, suitable for creep grinding, the good choice for high precision grinding where premium surface finish and form remaining are demanded.
Available sizes: 60/80 through 400/500
EA-R23
Irregular, medium-high Friable, Yellow Green Color.
Good combination of high free cutting and high surface finish. The first choice for the products with critical cost.
Available sizes: 60/80 through 400/500
EA-R21
Irregular, low Friable, light Green Color
Similar to EA-R23
Available sizes: 60/80 through 400/500
ED-B100
Semi-blocky, very low friability, Black
Premium performance in thermal stability
For Vit bond system with good profile retention and sharpness

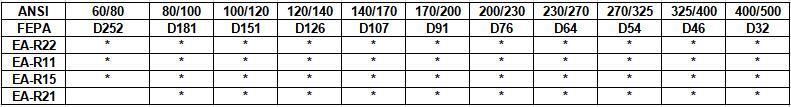

Available Size:
Applications:
