SAE-J444 Standard Cast Steel Grit Gh40 for Removing Paint
Jinan Junda Industrial Technology Co., Ltd.- Natural Abrasive Type:Steel Abrasive
- Artificial Abrasive Type:Artificial Abrasive
- Application:Instrumentation
- Function:Surface Finish
- Source:Artificial Abrasives
- Particle Size:0.2-2.8mm
Base Info
- Model NO.:gh40
- Hardness:Gh60-63HRC, Gl53-60hl, Gp40-50HRC
- Product Name:Cast Steel Grit Gh40
- Apprance:Angular
- Fatigue Life:3000 Times
- Diameter:0.2-2.5mm
- Type:G10-G120
- Durability:Very Good
- Chemical Composition:C, Si, Mn, S, P, Cr
- C:0.8-1.2%
- Sample:Yes, We Can Provide 500g
- Applications:Sandblasting, Rust Removal
- Certificate:SGS
- Standard:SAE-J444
- S:<0.05
- P:<0.05
- Payment:T,T L,C
- Transport Package:25 Kg,Bag, 40 Bags in One Ton Bag
- Specification:G40
- Trademark:Honest Horse
- Origin:China
- HS Code:72051000
- Production Capacity:3000tons,Month
Description
Basic Info.
Model NO. gh40 Hardness Gh60-63HRC, Gl53-60hl, Gp40-50HRC Product Name Cast Steel Grit Gh40 Apprance Angular Fatigue Life 3000 Times Diameter 0.2-2.5mm Type G10-G120 Durability Very Good Chemical Composition C, Si, Mn, S, P, Cr C 0.8-1.2% Sample Yes, We Can Provide 500g Applications Sandblasting, Rust Removal Certificate SGS Standard SAE-J444 S <0.05 P <0.05 Payment T/T L/C Transport Package 25 Kg/Bag, 40 Bags in One Ton Bag Specification G40 Trademark Honest Horse Origin China HS Code 72051000 Production Capacity 3000tons/MonthProduct Description

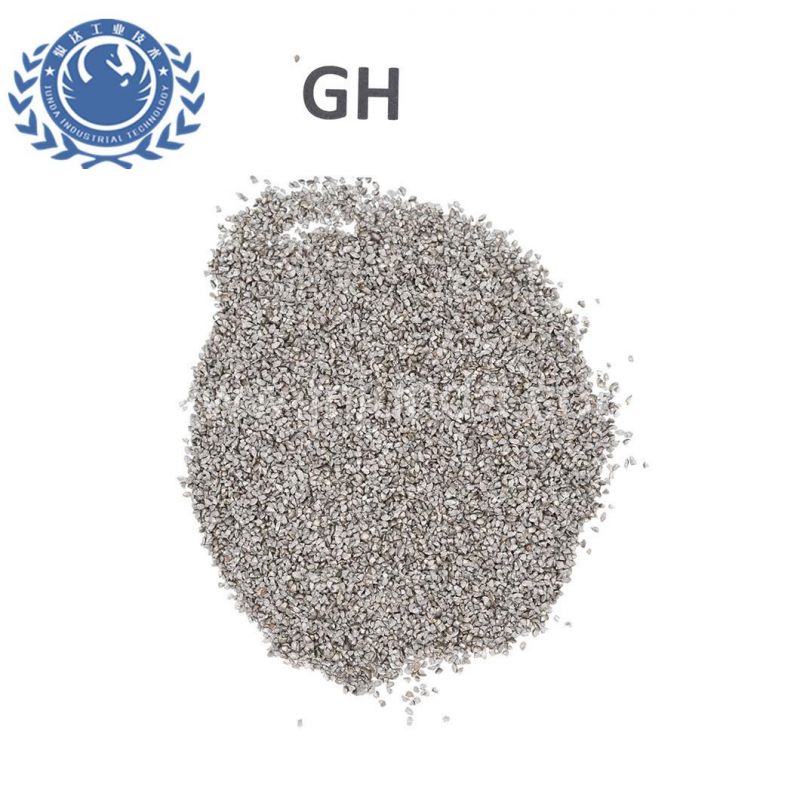

SAE-J444 standard Cast Steel Grit Gh40 for Removing Paint1.Cast Steel grit picture
Steel grit meet American SAE standard, ISO9001 quality standard. have Moderate hardness, toughness, impact resistance, long lifetime, good elasticity and adhesion, low consumption, good technical effect.
2.Cast Steel grit specification
Project | Quality |
C | 0.8-1.2% |
Si | 0.4-1.2% |
Mn | 0.6-1.2% |
S | <0.05% |
Hardness | GP 41-50HRC; GL 50-55HRC; GH 63-68HRC |
Density | 7.6g/cm3 |
Micro structure | Martensite structure |
Appearance | Angular Hollow particles<5% Crack particle<3% |
Type | G120,G80,G50,G40,G25,G18,G16,G14,G12,G10 |
Diameter | 0.2mm,0.3mm,0.5mm,0.7mm,1.0mm,1.2mm,1.4mm,1.6mm,2.0mm,2.5mm |
Application | 1.Blast cleaning: Used for blast cleaning of casting, die-casting,forging; sand removal of casting, steel plate, H type steel, steel structure. 2..Rust removal: Rust removal of casting, forging, steel plate, H type steel,steel structure. 3.Shot peening: Shot penning of gear, heat treated parts. 4.Shot blasting: Shot blasting of profile steel, ship board, steel board, steel material,steel structure. |

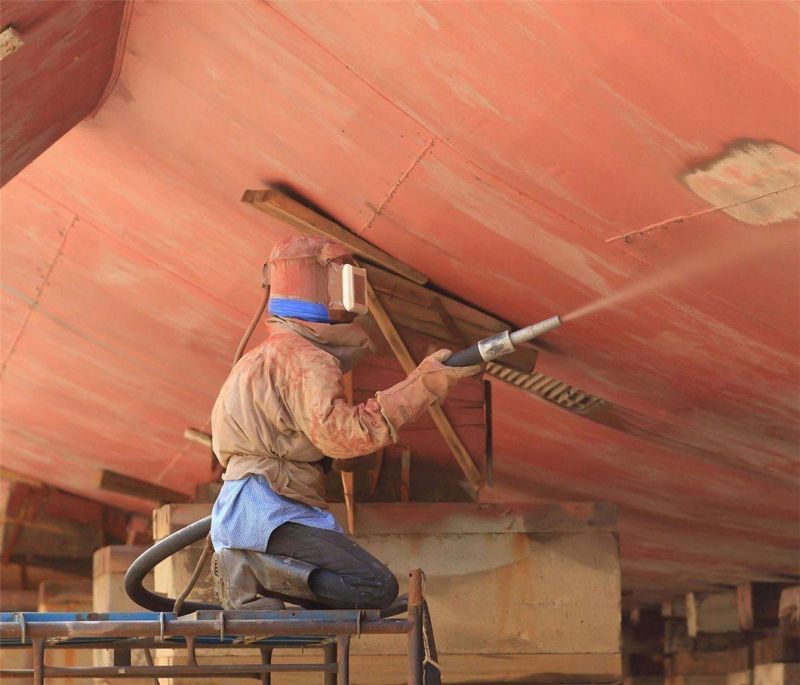

3.Cast Steel grit application
Derusting
Casting rust, forgings, rust removing, iron removal, steel derusting, h-steel derusting, steel structure derusting.

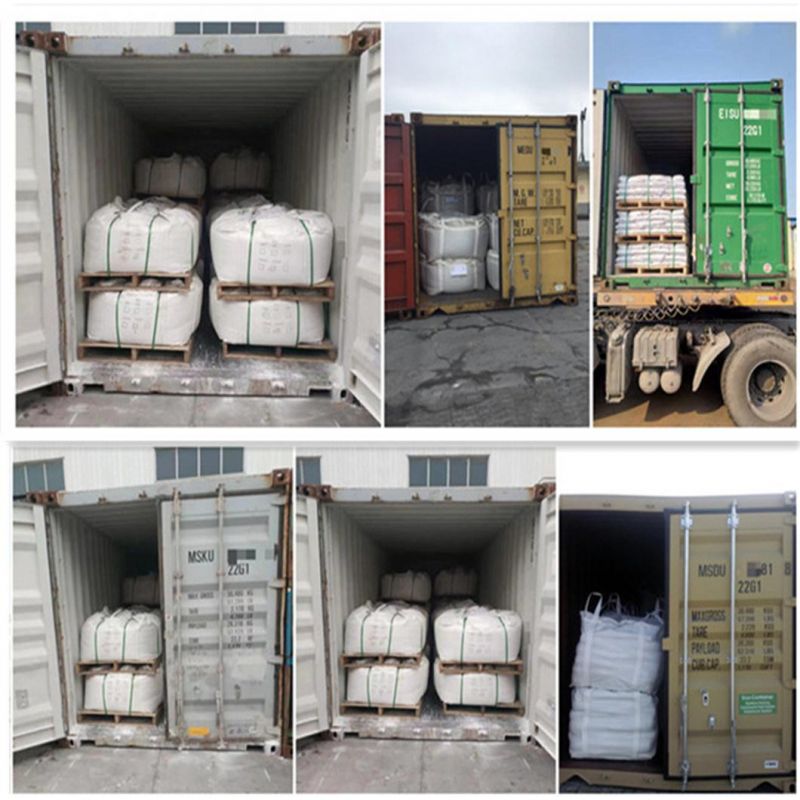

4.Cast Steel grit package
1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.

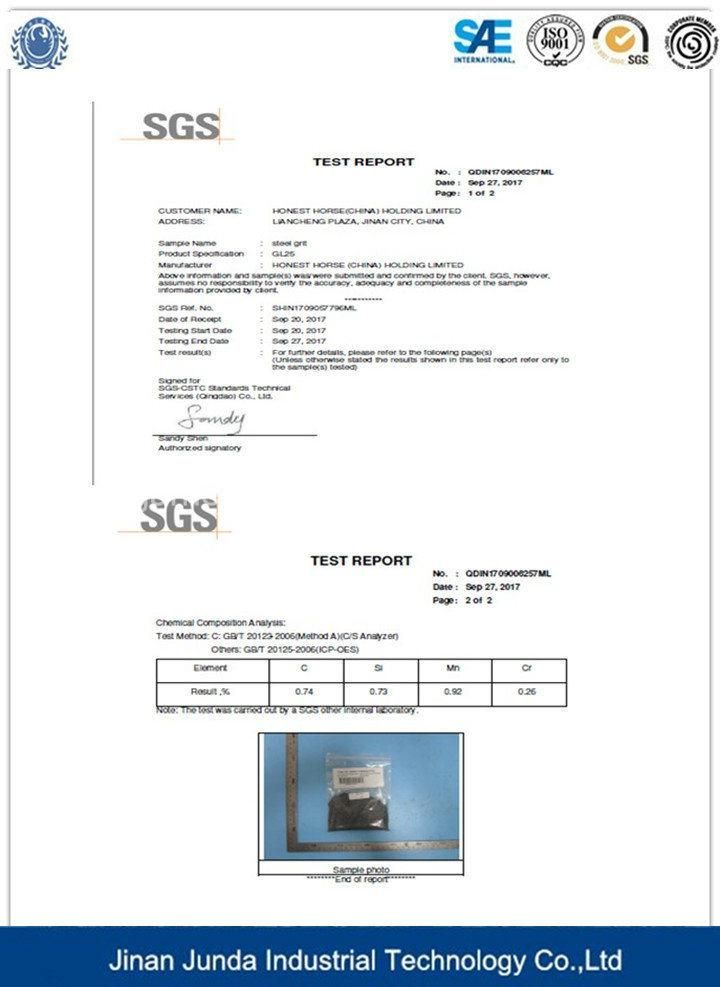

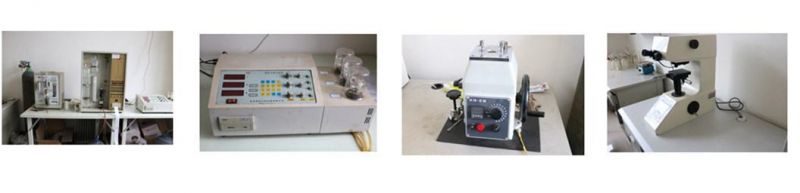

5.Cast Steel grit test and SGS report

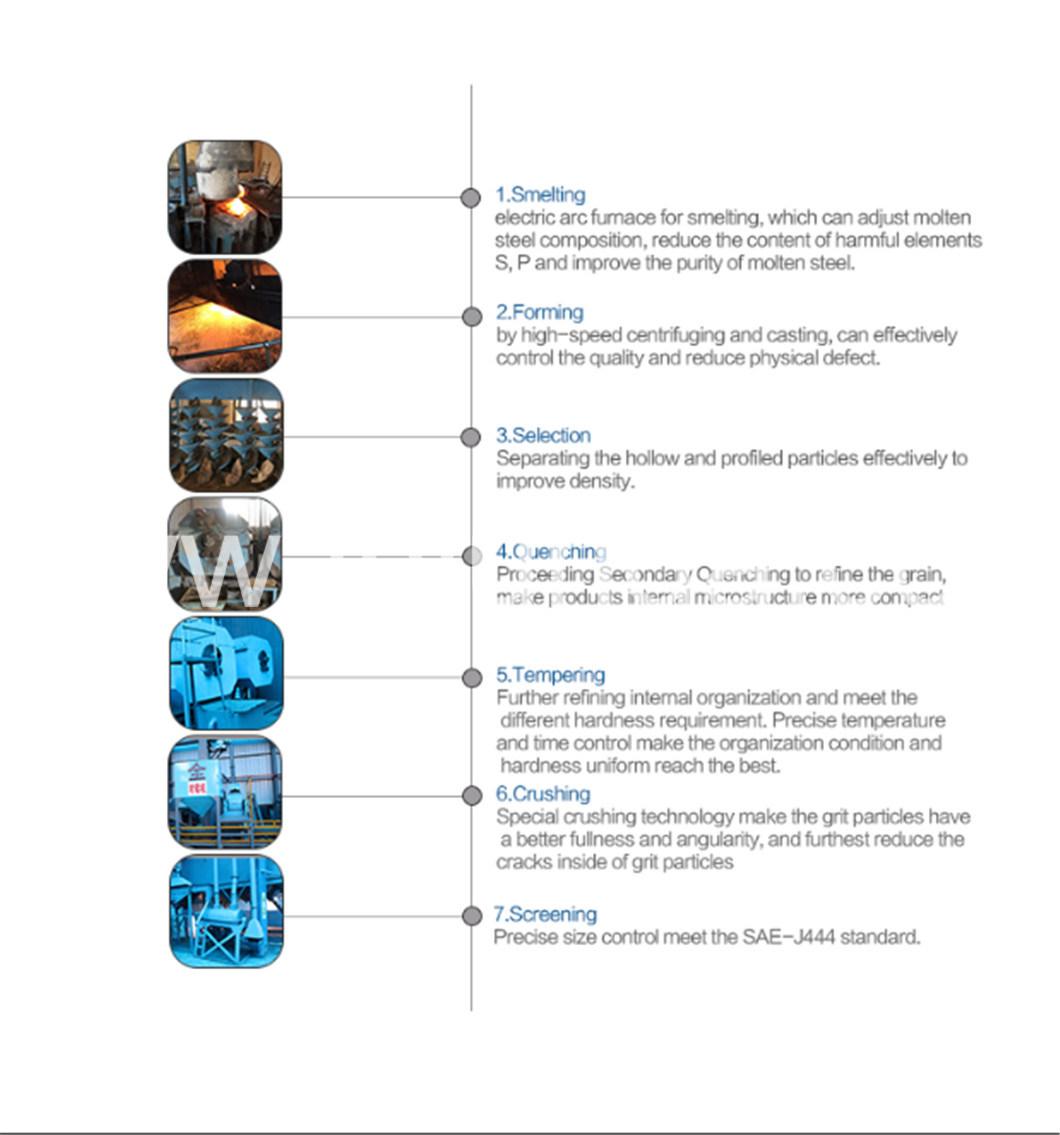

6.Cast Steel grit production
7.Company profile

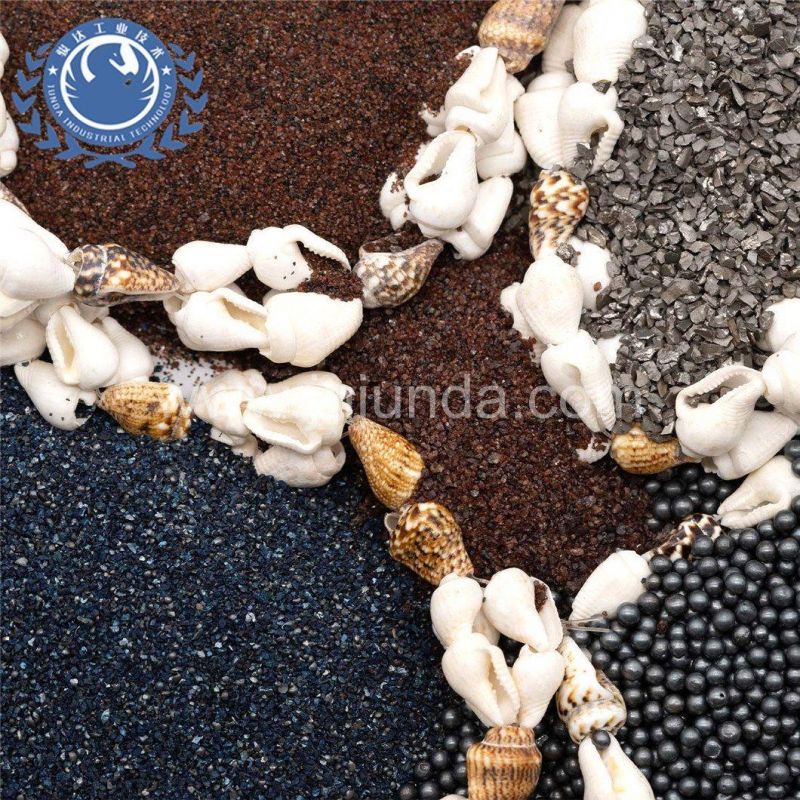

Jinan Junda Industrial Technology Co.,Ltd. , authorized by Honest Horse (CHINA) Holding Limited, is established in 2005. Our company headquarters is located in Jinan city,Shandong Province,China. We are the manufacturer of abrasive media in north China which products include
bearing steel grit, cast steel grit, cast steel grit, steel shot and garnet sand.
Based on our good qualified product and good service,we have a good reputation among our customers. And we welcome customers all over the world do cooperation with us!
8.RFQ
