Hot Sales Dia 125mm Grinding Media Ball for Ball Mill in Stock

Shandong Huamin Steel Ball Joint-stock Co., Ltd.
  • Material：Alloy Steel, Steel
  • Content：>90%, >90%
  • Usage：Construction, Machinery, Chemical, Grind, Refractory Material, Construction, Machinery, Grind
  • Processing Type：Hot Rolled or Forging, Forging
  • Size：Middle, Big
  • Color：Black, Black

Base Info

  • Model NO.：20-150mm
  • Standard：GB, DIN, BS, ASTM, AISI
  • Application：Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant
  • Type：Grinding Ball
  • Hardness：55HRC ---65HRC
  • Diameter：20mm-150mm
  • Impact Value：More Than 12j,Cm2
  • Delivery：Prompt
  • Drop Test Times：More Than 10000
  • Packaging：Steel Drum, Container Bag
  • Field：Mine, Cement, Electric Power Plant
  • Transport Package：Bags or Drums, Pallets
  • Specification：Dia. 20-150mm
  • Trademark：HM
  • Origin：China
  • HS Code：73261100
  • Production Capacity：150, 000 Mt,Year

Description

 Nominal Diameter(mm)Dimensional Tolerance(mm)Roundness %Φ20±2  ≤6Φ25±2   ≤6Φ30±2   ≤5Φ35±2   ≤5Φ40±2   ≤5Φ50+3,-1   ≤4Φ60+3,-1   ≤4Φ70+3,-1   ≤4Φ75+3,-1   ≤4Φ80+3,-1   ≤4Φ90+4,-2   ≤4Φ100+4,-2   ≤4Φ120+4,-2   ≤4Φ125+4,-2   ≤4Φ130+4,-2   ≤4Φ140+4,-2   ≤4Φ150+4,-2   ≤4
3.Picture show

4. Packing Instruction:
Barrel with wooden pallet: Steel Drum or Steel Barrel
Barrel size(cm): 89 χ 58 (Volume: 800kgs N. G. Avaliable)
Pallet size(cm): 168 χ 59 χ 13
Two Barrel tie on the wooden pallet, steel tape for bundle
Strong Nylon Bag:
Avalible Bag: 50kgs; 100kgs; 1000kgs

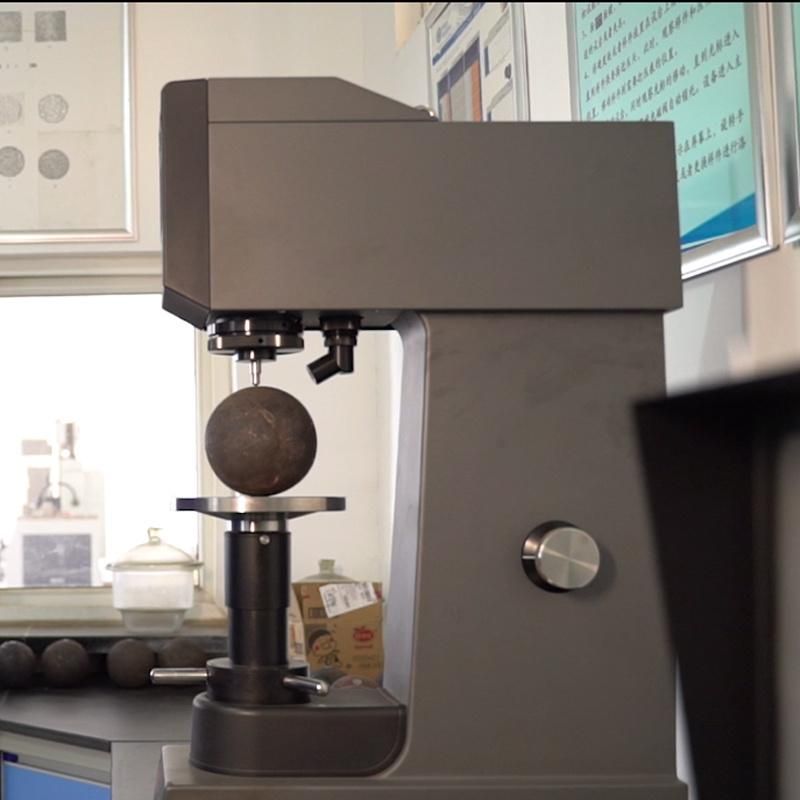

5.Inspection and testing



Hot Sales Dia 125mm Grinding Media Ball for Ball Mill in Stock
