• Model NO.：9A1,6A1 500X200X305MM
• Types：Centerless Grinding Wheel
• Grain Size：120#
• Cylindricity：<0.02
• Circular Degree：<0.01
• Technics：Pressed Processing
• Working Style：Cylindrical Grinding
• Color：Red,Black,Blue,Brown
• OEM：Yes
• Application：for Hard Alloy, Ceramic, PCD,PCBN
• Package：10PCS,CTN
• Payment：Payple, T,T, C,L
• Disposit：30%
• Delivery：15days
• Size：20"
• Certificate：MPa
• Hscode：8202391000
• Capacity：100PCS,Day
• Export：Japan, Ameria, Germany, Korea
• Machine Qty：40PCS New Machines
• Employee：200
• Quality：High
• Transport Package：Carton
• Specification：4" - 20"
• Trademark：BOSDI
• Origin：China
• HS Code：8202391000
• Production Capacity：100PCS,Day
• Package size per unit product：45.00cm * 35.00cm * 21.00cm
• Gross weight per unit product：22.000kg

Basic Info.

Model NO. 9A1/6A1 500X200X305MM Types Centerless Grinding Wheel Grain Size 120# Cylindricity <0.02 Circular Degree <0.01 Technics Pressed Processing Working Style Cylindrical Grinding Color Red/Black/Blue/Brown OEM Yes Application for Hard Alloy, Ceramic, PCD/PCBN Package 10PCS/CTN Payment Payple, T/T, C/L Disposit 30% Delivery 15days Size 20" Certificate MPa Hscode 8202391000 Capacity 100PCS/Day Export Japan, Ameria, Germany, Korea Machine Qty 40PCS New Machines Employee 200 Quality High Transport Package Carton Specification 4" - 20" Trademark BOSDI Origin China HS Code 8202391000 Production Capacity 100PCS/Day

Packaging & Delivery

Package size per unit product 45.00cm * 35.00cm * 21.00cm Gross weight per unit product 22.000kg

Product Description

ZHENGZHOU BOSDI ABRASIVES CO.,LTD

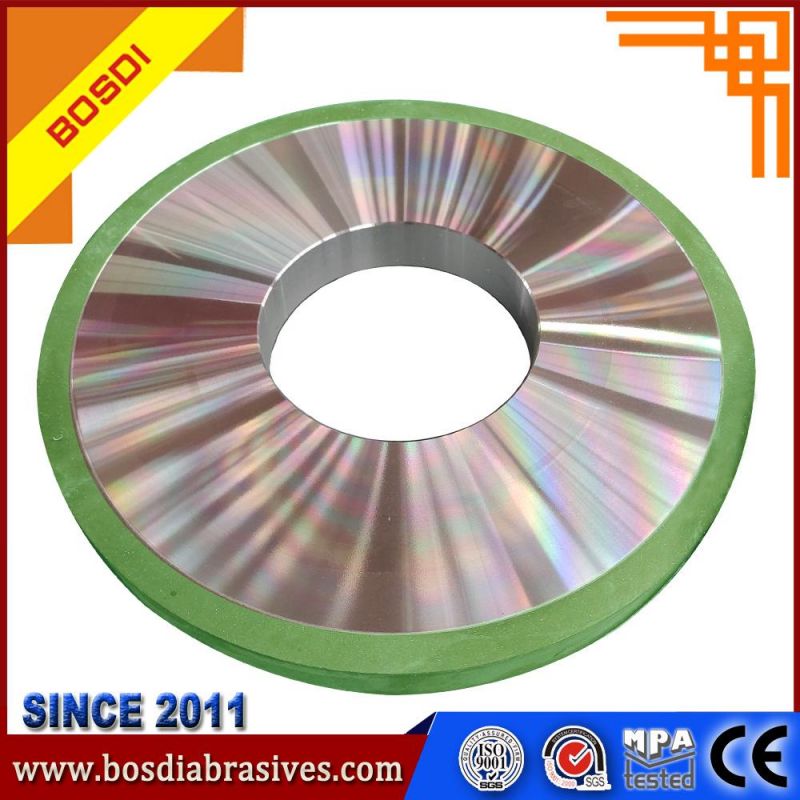

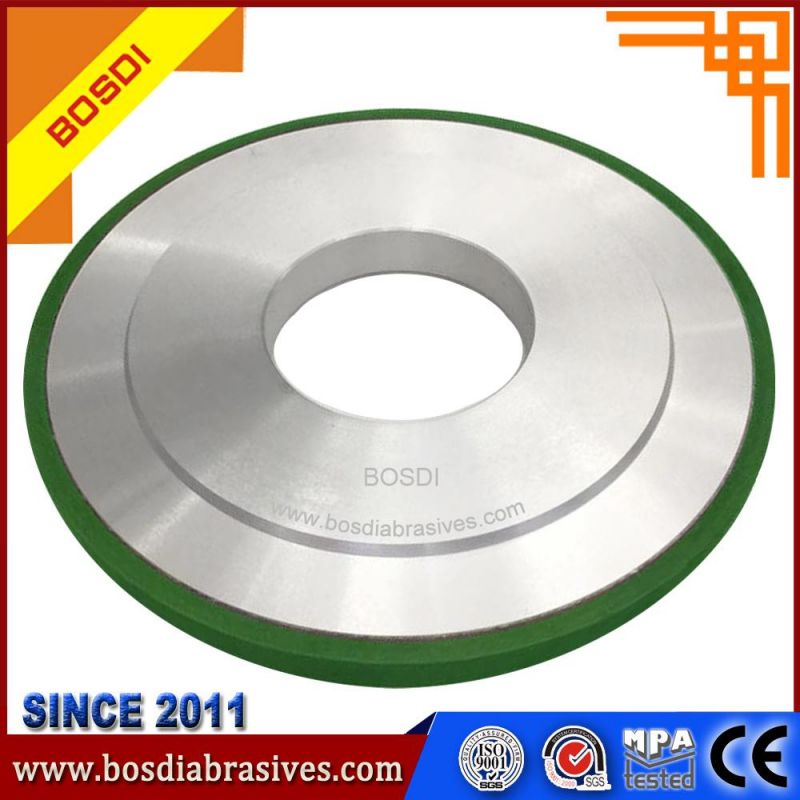

Parallel grinding wheel (Model Code: 1A1)
It is mainly used in external grinding, internal grinding, surface grinding, slotting, forming grinding and other grinding processes of cemented carbide, precision ceramics, magnetic materials, thermal spraying alloy and other materials; It has the characteristics of good self sharpening, high grinding efficiency, low surface roughness of machined workpiece, less heating and not easy to burn workpiece.

Diameter	total thinkness	abrasive layer thickness	hole	Qty/wood box	Qty/pallet	Gw.
mm	mm	mm	mm	Pcs	Pcs	Kgs
100/125/150	3/5/8/10/15/20/25	3/5/6/8/10	10/20/31.75/40	10	200
200/300/350	15/20/25/30/35/40/50	3/5/6/8/10	10/20/31.75/40	5	100
300/400/500	15/20/25/30/35/40/50	10	127/203	3	60
400/500/600	15/20/25/30/35/40/50	10/16/25/38/50	203/305	2	40
750/850/900	15/20/25/30/35/40/50	10/16/25/38/50	203/305	1	20

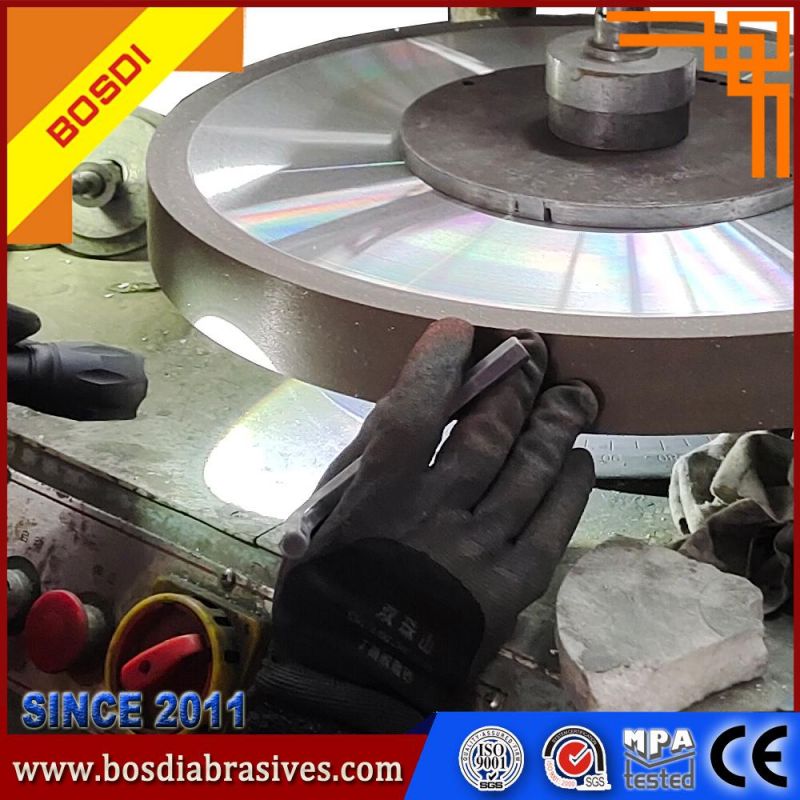

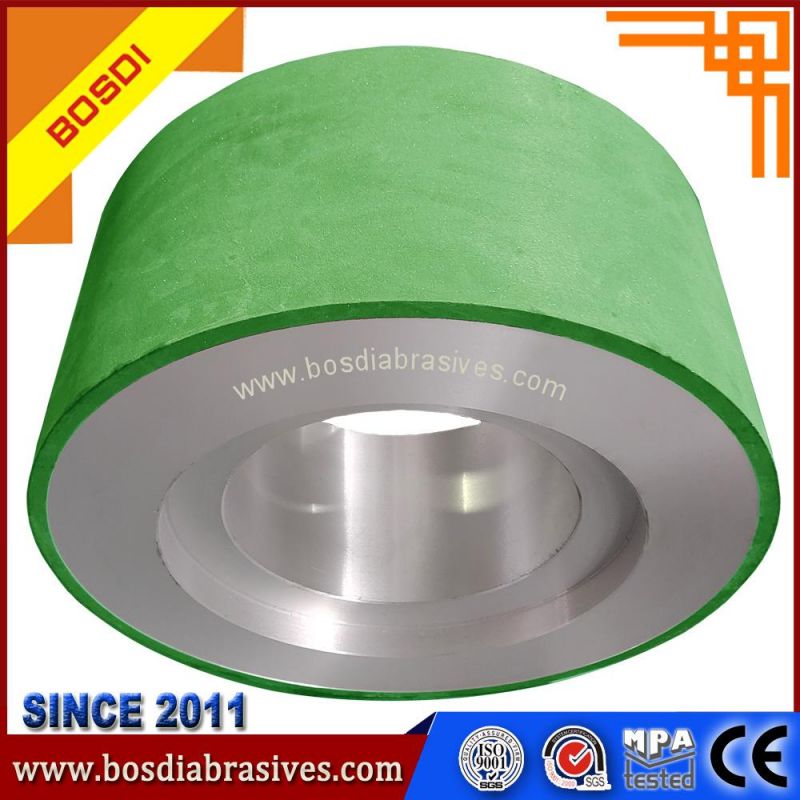

Centerless grinding wheel (model code 9a1 / 6A1)
It is applied to the processing of cemented carbide, precision ceramics, magnetic materials, PCD / PCBN composite sheets and other materials. It is suitable for 1040 / 105010100 series centerless grinding machines; It has high efficiency batch cylindrical grinding and processing, high cylindricity accuracy, good dimensional consistency, and good surface finish of workpieces after fine grinding.

Diameter	total thinkness	abrasive layer thickness	hole	Qty/wood box	Qty/pallet	Gw.
mm	mm	mm	mm	Pcs	Pcs	Kgs
300	125/150	5/10	127/203
350	125/150	10	127/203
400	150/200	10	127/203
450	150/200	10	127/203
500	150/200	10	127/203

Reinforced grinding wheel (model code 14a1 / 3A1)
It is mainly used in the processing of cemented carbide, CNC cutting tools, ferrite magnetic materials, abrasive steel and other special shape requirements; It has the advantages of sharp grinding, high machining efficiency and easy forming.


Diameter	total thickness	abrasives layer width	abrasive layer thickness	hole	Qty/wood box	Qty/pallet
mm	mm	mm	mm	mm	Pcs	Pcs
75	5/6	3/4/5	3	20
100	5/6/8	5/8/10	3/6	20/32
150	6/8/10	5/8/10	3/5/6/8	32/40
175	8/10/12/15	5/10	6/8/10/12	32/40
200	8/10/12/15	5/10	6/8/10/12	32/75
