Trend Ele Basket Mill with Lab and Industrial Scale Production for Painting and Coating Micro and Nano Grinding
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Mill
- Power Source：Electricity
- Object：Wet Grinding Machine
- Application：Chemical
- Disc(Wheel) Type：Grinding Disc
- Material：Zirconia, Stainless Steel
Base Info
- Model NO.：EBM
- Working Style：High-speed universal
- Disc Diameter：180mm
- Variable Speed：With Variable Speed
- Function：Wet Grinding, Milling
- Grinding Medium：Zirconia Beads
- Applicable Industry：Coating, Paint, Ink, Pigment, Latex
- Materials：Stainless Steel or Pure Zirconia
- Usage：Industrial
- Product Type：Paint
- Transport Package：Wooden Case
- Specification：EBM0.75-EBM55
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：200-2000L
Description
Basic Info.
Model NO. EBM Working Style High-speed universal Disc Diameter 180mm Variable Speed With Variable Speed Function Wet Grinding/ Milling Grinding Medium Zirconia Beads Applicable Industry Coating, Paint, Ink, Pigment, Latex Materials Stainless Steel or Pure Zirconia Usage Industrial Product Type Paint Transport Package Wooden Case Specification EBM0.75-EBM55 Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000LProduct Description

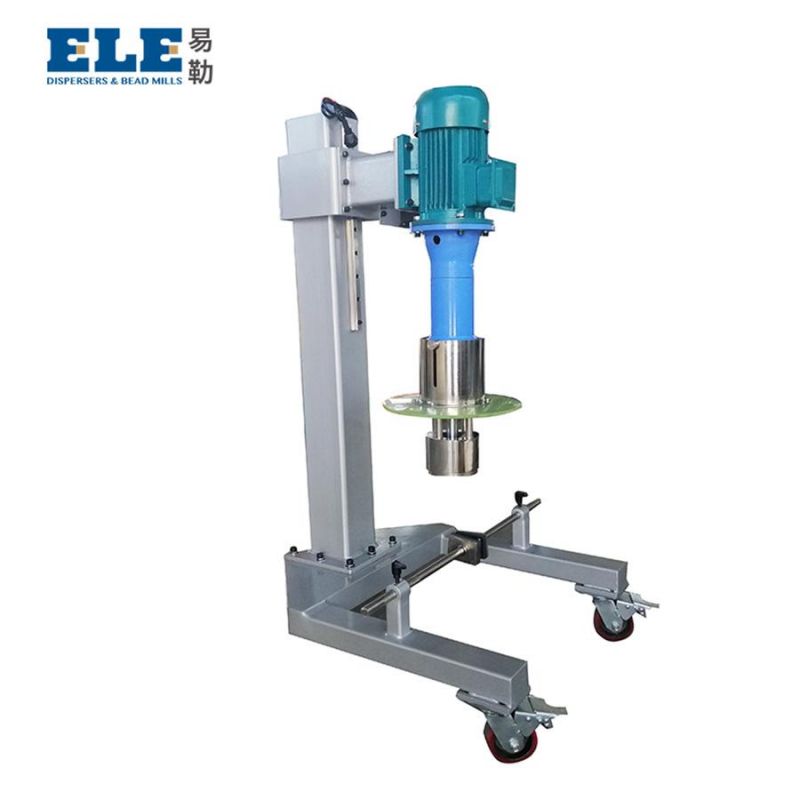

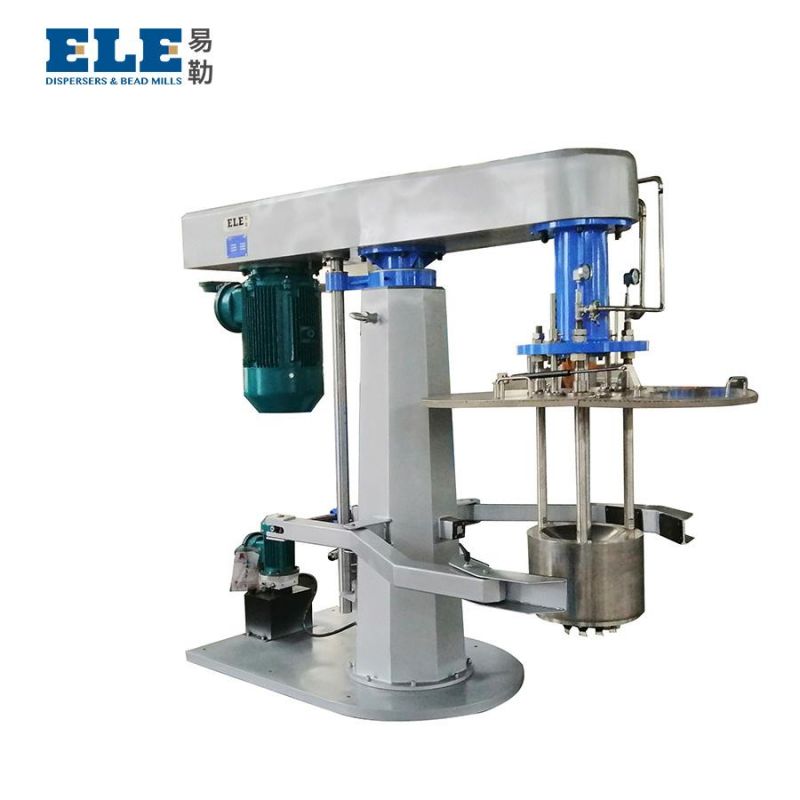

ELE Basket Mill (EBM)
Working principle
with dispersion disc and beads mill complex structure, Basket Bead Mill (EBW)
Integrates high speed dispersing and superfine wet-grinding in the same machine. Dispersing disc speed up the particle wetting and contribute dispersion effect, so high viscosity materials can be dispersed rapidly for high speed running of dispersion disc.
Features
1, no need using of pump, pipe, valve, other tank, and thus no leftover, large output
2, low cost, high efficiency, short processing time
3, one machine can process kinds of materials, users can change to produce different products and colors.
4, flexible operation, one worker can operate several basket dispersing mills.
5, hydraulic lifting
Specifications&Parameter:
| Model | Basket volume(L) | Main power | Speed(rpm) | Capacity(L) | Media(mm) | Lifting Height(mm |
| EBM-4 | 3.6 | 4 | 0-3000 | <120 | 1.8-2.4 | 800 |
| EBM-7.5 | 4.9 | 7.5 | 0-1500 | <200 | 1.8-2.4 | 900 |
| EBM-11 | 6.6 | 11 | 0-1500 | <260 | 1.8-2.4 | 900 |
| EBM-15 | 9.1 | 155 | 0-1500 | <350 | 1.8-2.4 | 900 |
| EBM-18.5 | 17.2 | 18.5 | 0-1500 | <500 | 1.8-2.4 | 1100 |
| EBM-22 | 20.1 | 22 | 0-1500 | <800 | 1.8-2.4 | 1100 |
| EBM-30 | 32.3 | 30 | 0-1500 | <1200 | 1.8-2.4 | 1100 |
| EBM-37 | 39.2 | 37 | 0-1500 | <1500 | 1.8-2.4 | 1600 |
| EBM-45 | 52.3 | 45 | 0-1500 | <2000 | 1.8-2.4 | 1600 |
| EBM-75 | 85.4 | 75 | 0-1500 | <3000 | 1.8-2.4 | 1800 |
