• Model NO.：CL-650AB
• Working Style：Shaking
• Variable Speed：With Variable Speed
• Name：Large Vibratory Polishing Tumbler
• Warranty：1 Year
• Working Voltage：380V ,3 Phase or as Request
• Delivery Time：Within One Week
• Size：2000*1850*1300
• Weight(Kg)：1250
• Rubber Lining(mm)：6-20
• Amplitude(mm)：0.8-8
• Speed(R/Min)：1450
• Motor Power(Kw)：7.5
• Disc Type：Round
• Item：Vibratory Polishing Deburring Tumbler
• Transport Package：Wood Case
• Specification：650L
• Trademark：kafan
• Origin：Hangzhou, Cina
• HS Code：8460901000

Basic Info.

Model NO. CL-650AB Working Style Shaking Variable Speed With Variable Speed Name Large Vibratory Polishing Tumbler Warranty 1 Year Working Voltage 380V ,3 Phase or as Request Delivery Time Within One Week Size 2000*1850*1300 Weight(Kg) 1250 Rubber Lining(mm) 6-20 Amplitude(mm) 0.8-8 Speed(R/Min) 1450 Motor Power(Kw) 7.5 Disc Type Round Item Vibratory Polishing Deburring Tumbler Transport Package Wood Case Specification 650L Trademark kafan Origin Hangzhou, Cina HS Code 8460901000

Product Description

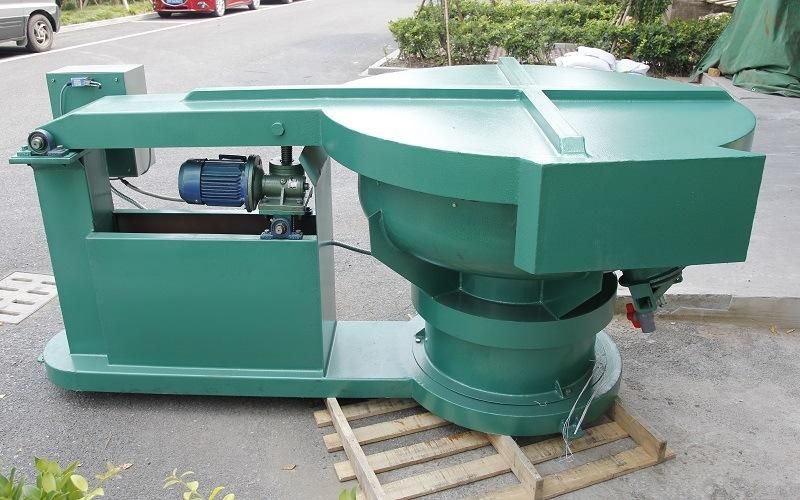

Large Vibratory Polishing Tumbler, Industrial Parts Tumbler

Vibratory polishing machine's working process involves rubbing of workpiece to be finished with suitable grinding media (ceramic, plastic, steel, etc) to realize the glossy and bright surface of workpiece.
This vibratory polishing deburring tumbler has a bowl to hold workpiece, media, water & finishing compound. The vibratory motor generates intense spiral motion of parts & media in the bowl. The relative motion between workpiece and media results in deburring, descaling, polishing and rust removing. Capacity of the bowl is 650L, suits for mass finishing.

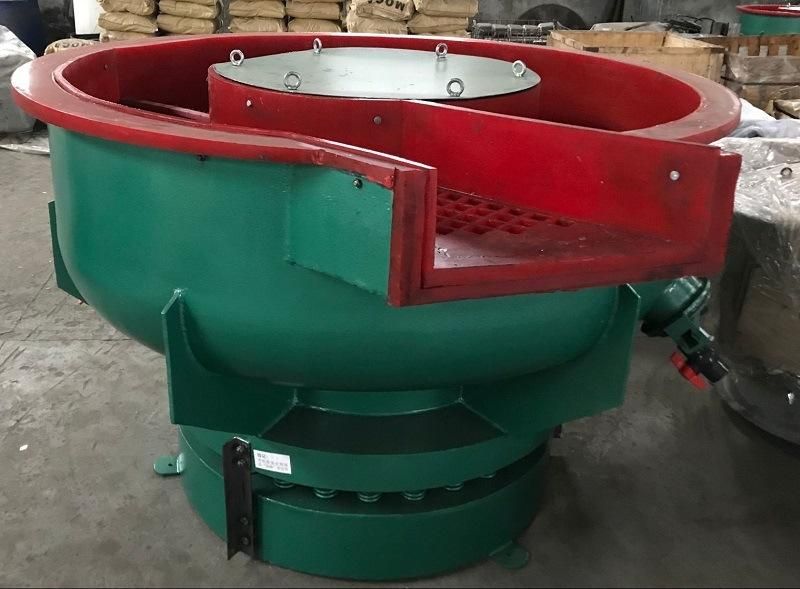

Parts & Media Separation Section of Vibratory Deburring Polishing Tumbler

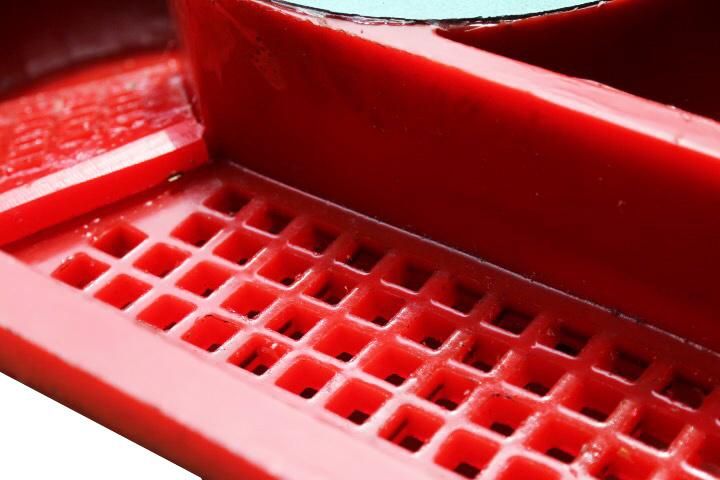

This tumbler is used when part-media separation is required. There is in-built part-media separation arrangement in this machine. At the end of the process, this machine features a mechanical flap that directs the media and parts to a separation grid with openings which the media falls and back into the bowl, the parts continue to a separate container. Separation can be achieved depending on various parameters. This type of machine should be used when part media separation is feasible by screening method.
(The hole size of screen can be customized to suit the media and parts.)




Large Vibratory Deburring Finishing Tumbler Specifications

Mode	CL-650(AB)
Capacity	650L
Motor Power(kw)	7.5
Speed(r/min)	1450
Amplitude(mm)	0.8-8
Rubber lining(mm)	6-20
Weight(kg)	1250
Size L*W*H(mm)	2000*1850*1300

Other Features of Vibratory Polishing Tumbler
Variable speed drive suits for polishing or deburring different sizes and shapes workpieces.
Sound cover can effevtively reduce noice and prevent the splash of liquid, create more friendly working condition.

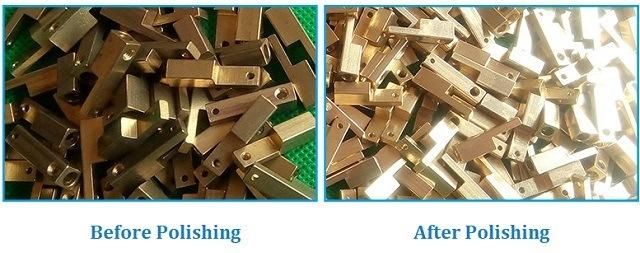

The Benefits of Polishing by Vibratory Tumbler

1. Rubber materials is PU lining which can prolong the machine's service life and reduce the direct damage between parts and tumbler.
2. The treatment will not destory original shape and dimensional accuracy but polish a more smooth and bright surface.

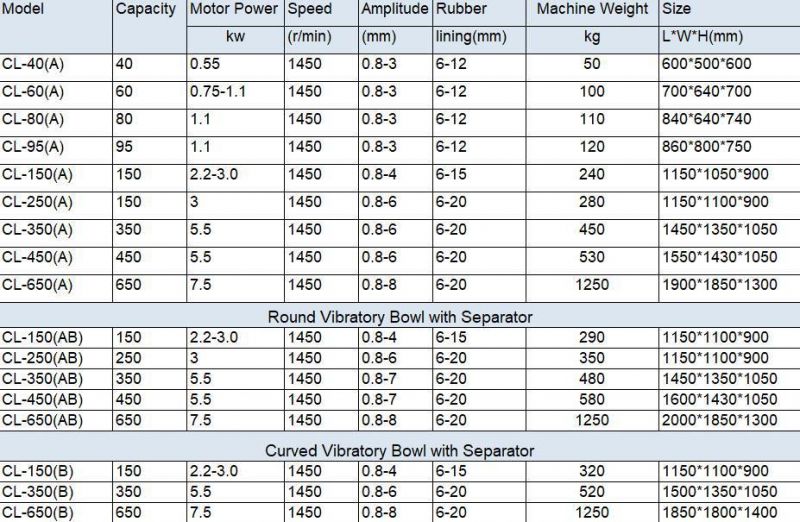

Different Capacity of Vibratoy Deburring Bowl for your choice
