• Model NO.：ZBW5L
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Product Type：Paint
• Transport Package：Packed in a Standard Exported Wooden Case.
• Trademark：Longteng
• Origin：China
• HS Code：8479820090
• Production Capacity：90-160 PCS,Year

Basic Info.

Model NO. ZBW5L Disc Diameter 230mm Variable Speed With Variable Speed Product Type Paint Transport Package Packed in a Standard Exported Wooden Case. Trademark Longteng Origin China HS Code 8479820090 Production Capacity 90-160 PCS/Year

Product Description

1.Descriptions:

This is a kind of Nanometer grade sand mill. The sand mill can be used to make: (1)Printing ink: Flexo printing ink; (2) Car paint and Industrial metal coatings: Coil coatings; (3)Industrial anti-corrosion coatings: Woodenware paint; 4)Screen printing ink: UV printing ink; (5)Waterborne color paste: Varnish.

(China)Shandong Longxing Chemical Machinery Group Co., Ltd is a fineness machinery manufacturer. We design and produce 4 kinds of Sand Mill/bead mill/pigment dispersing machine/coating sand mill/pearl mill/pesticide mill:
(1). Horizontal sand/bead/pearl mill;
(2). Vertical sand/bead/pearl mill;
(3). Basket sand/bead/pearl mill;
(4). Experimental sand/bead/pearl mill.


2. Applications:
The sand mill can be used to make Paints, printing inks, high quality auto paints, pigments, dyes, pesticides, papermaking, sub-micron level grinding, pharmaceutical industries.

3. Technical Parameters:

Type	ZBW/5L
Grinding chamber volume	5L
Adjustable grinding chamber volume	4L
Main motor power	22Kw
Diaphragm pump for the imported material	1/2"
Zirconium beads volume	4L
Spindle speed	735r/min
Working pressure	< =0.1MPa
The maximal output pressure	0.7MPa
Production capacity	200~600 Kg/h
weight	1050 kg
Overall dimensions (length *width  * height)	1660*850*1940mm

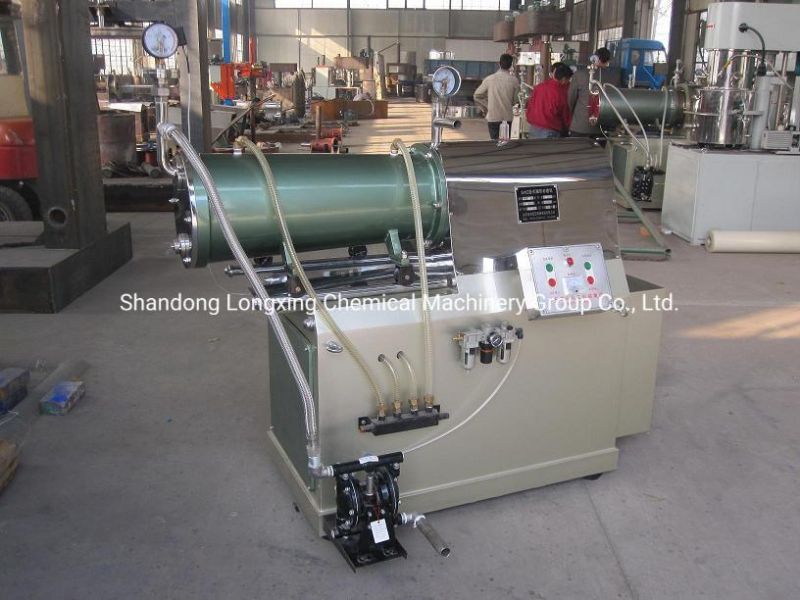

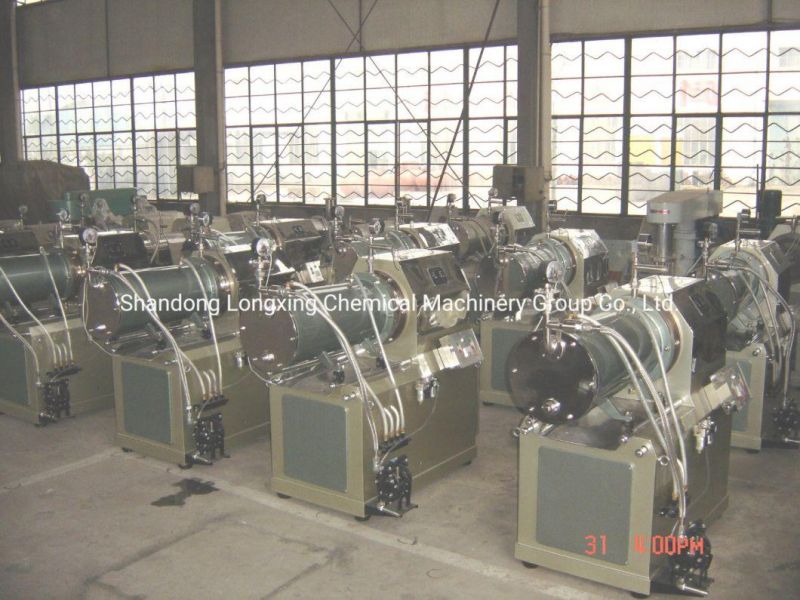

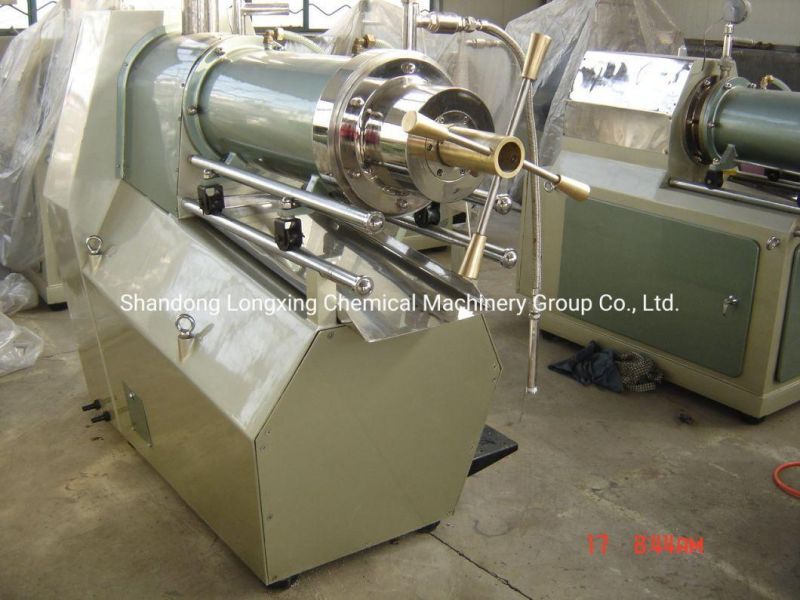

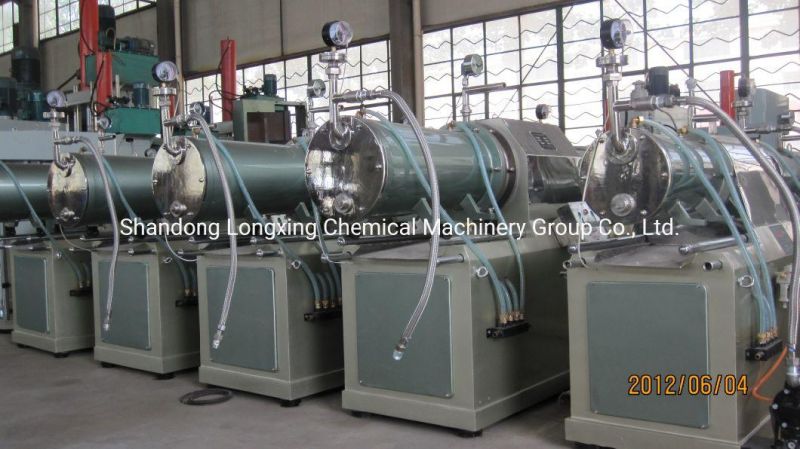

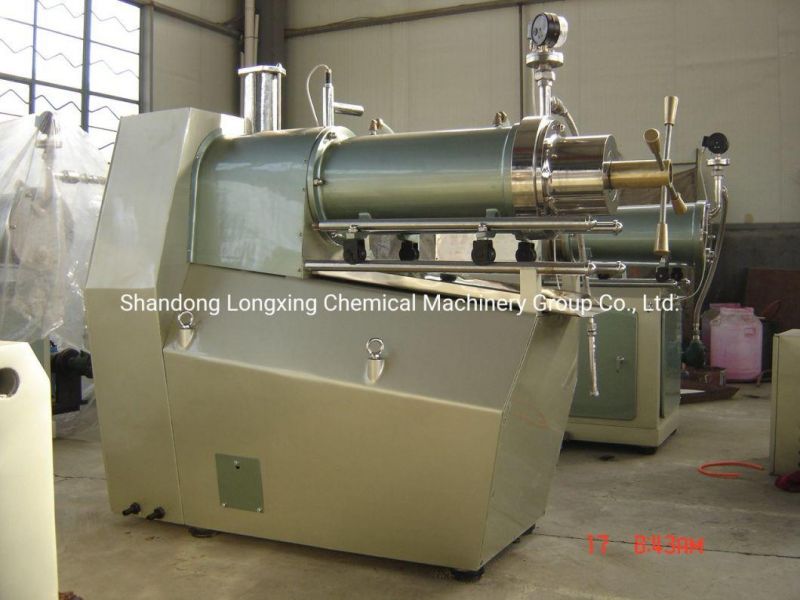

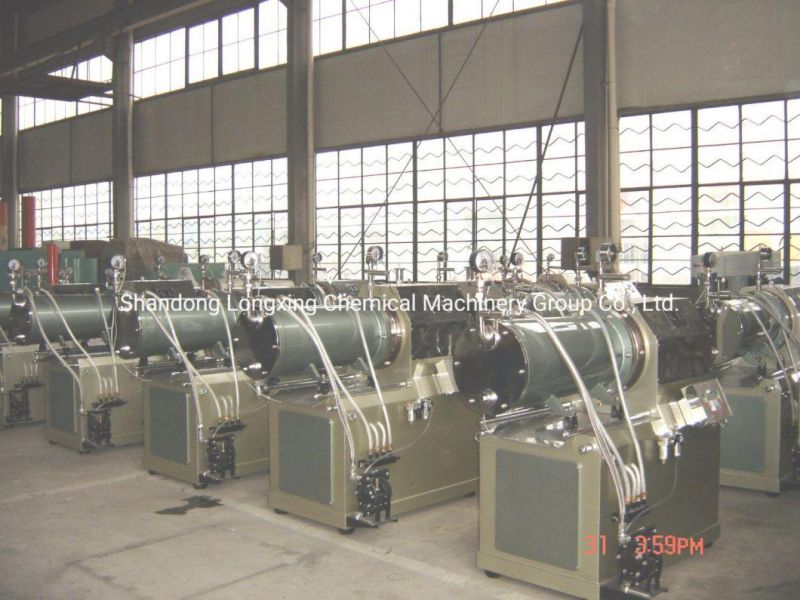

4.More Product Photos:

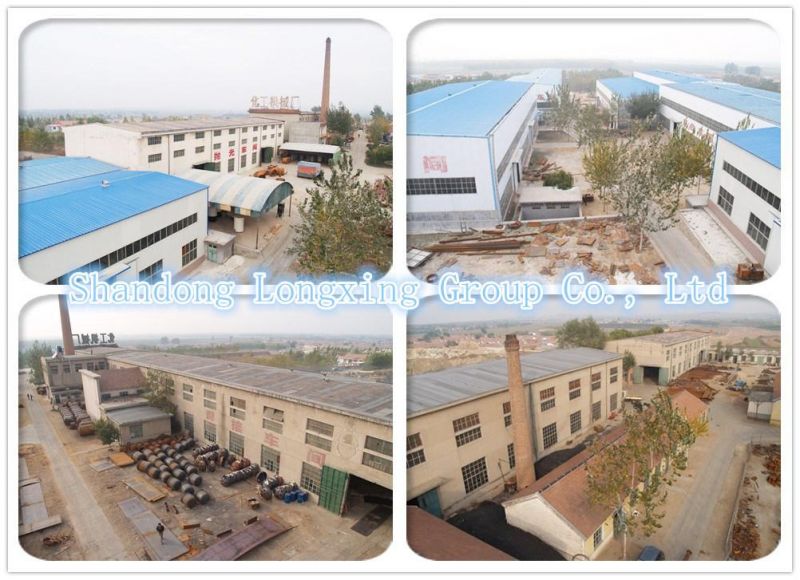

5.Company Photo:
