Auto Surface Punch Press Tool Grinding Machine for Different Dies Grinder

RSM Machinery Co.,Ltd.
  • Type：Angle Grinder
  • Power Source：Electricity
  • Object：Grinding Machine
  • Application：Sheet Metal
  • Disc(Wheel) Type：Grinding Disc
  • Material：Metal

Base Info

  • Model NO.：RG-160
  • Working Style：High-speed universal
  • Disc Diameter：OEM
  • Variable Speed：With Variable Speed
  • Name：Punch Press Tool Grinding Machine
  • Spindle Motor：2.2 Kw
  • Grinding Speed：0.06mm,Min-0.9mm,Min
  • Spindle Rotating Speed：2800rpm,50Hz
  • Table Motor：0.1 Kw,4p,1,30
  • Transport Package：Export Wooden Box
  • Specification：1000*900*1920
  • Trademark：RSM
  • Origin：China
  • HS Code：846019000
  • Production Capacity：20-30sets,Month

Description

Maximum tool diameter160 mm (6.299") (Type E (4-1/2") die)Vertical feed fast speed300mm/minMinimum tool diameter1.51mmVertical feed slow speed1.2mm/minMaximum tool height150 mm (5.906") Grinding speed0.06mm/min-0.9mm/minMinimum tool heightChuck jaw heightTable motor0.1 KW,4P,1/30Standard grinding wheelMade of CBN and 135 mm (5.315") in diameter (conductive)Table speed50 rpmSpindle motor2.2 KW,2PCoolant motor0.06 KW 2PSpindle rotating speed0.1 KW servo motor with 1/12 gear headCoolant tank34 LVertical feed motor0.1 KW servo motor with 1/12 gear headPower3.0 KVAVertical travel distance240mmAir0.5 MPaWeight500 kgMachine dimensions813 × 858 × 1930 mm
Auto Surface Punch Press Tool Grinding Machine for Different Dies GrinderAuto Surface Punch Press Tool Grinding Machine for Different Dies GrinderAuto Surface Punch Press Tool Grinding Machine for Different Dies GrinderAuto Surface Punch Press Tool Grinding Machine for Different Dies GrinderAuto Surface Punch Press Tool Grinding Machine for Different Dies Grinder
Operate:

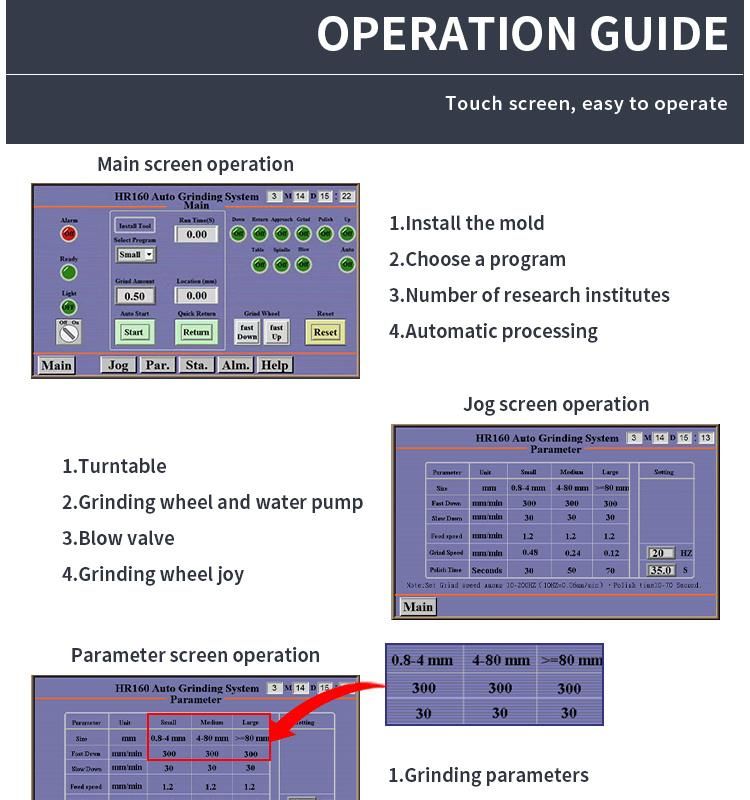

1.Touch-screen interface simplifies all set-up and maintenance operations.Supports multiple language and units of measure.Easily updateable software via USB port and SD card.

2.Data tracking-Number of punch press tools sharpened,wheel and coolant life, motor life and more. Predictive wheel replacement warning.

3.Solid-surface 7.8''(200mm)CBN grinding wheel optimizes performance. Eliminating the perpendicular solts directly translates to a longer-lasting wheel.

4.Innovative design allows automatic coolant flow directly through the grinding wheel.5.On screen alerts/warnings for "Add Coolant"(low coolant) and "change filter"(high coolant).
