• Model NO.：1A1, 1V1, 11V9, 12V9
• Circular Degree：<0.05
• Technics：Sinter
• Working Style：Tool Grinding
• Application：Fluting, Gashing, Clearance
• Wheel Body：Solid Copper, Powdered Copper
• Manufacturer：E-Grind
• Machine：CNC
• Packing：Box
• Advantages：Higher Productivity
• Transport Package：Paper Box
• Specification：Diamond, CBN
• Trademark：E-Grind
• Origin：China
• HS Code：68042210
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 1A1, 1V1, 11V9, 12V9 Circular Degree <0.05 Technics Sinter Working Style Tool Grinding Application Fluting, Gashing, Clearance Wheel Body Solid Copper, Powdered Copper Manufacturer E-Grind Machine CNC Packing Box Advantages Higher Productivity Transport Package Paper Box Specification Diamond, CBN Trademark E-Grind Origin China HS Code 68042210 Production Capacity 5000PCS/Year

Product Description

Hybrid wheels ensure higher material removal without compromising on the surface finish, while ensuring considerable reduction in cycle times. These wheels can be used for both Fresh tool manufacturing and re-sharpening, on CNC Tool and Cutter Grinders.

Hybrid wheels can provide below benefits:
1)Extremely high stock removal rates
2)Maximum cutting ability
3)Easy dressing
4)Higher productivity
5)Shorter process time during flute grinding
6)Low grinding forces
7)High process stability
8)Quiet and even grinding process
9)Best tool quality

Hybrid diamond and CBN wheels are used for Fluting, Clearance & Gashing grinding operations.

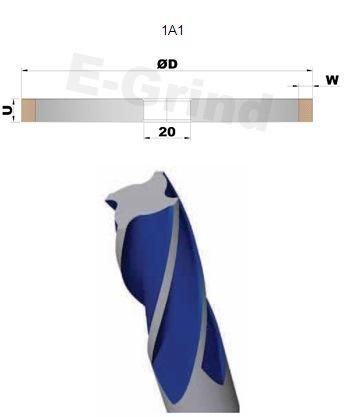

 1A1 wheels are used for grinding the tool fultes to remove massive amounts of stock.
Recommended speed is 14 - 18m/s.

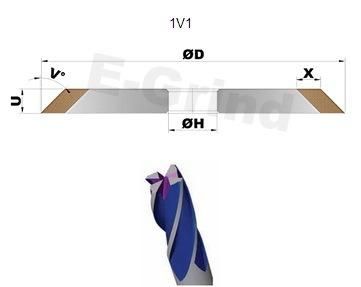

1V1 wheels are used mainly for gashing. Also can be used for fluting if angle less than 20 degrees.
Recommended speed is 20 - 30m/s.


 12V9/45 wheel is an alternative for Gashing to replace 1V1 wheel.
Recommended speed is 20 - 30m/s.

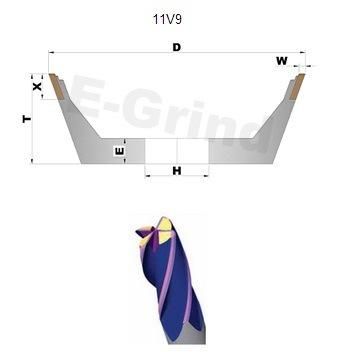

 11V9 wheel are used for grinding cutting edge of OD and ends. Need finer grit size to offer better
surface.
Recommended speed is 25 - 35m/s.
