• Model NO.：WZM series
• Working Style：High-speed universal
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Transport Package：Wooden Case or as Customer Request
• Specification：WZM series
• Trademark：Jinchuan
• Origin：China
• HS Code：84742090
• Production Capacity：Depend on Model

Basic Info.

Model NO. WZM series Working Style High-speed universal Disc Diameter 230mm Variable Speed With Variable Speed Transport Package Wooden Case or as Customer Request Specification WZM series Trademark Jinchuan Origin China HS Code 84742090 Production Capacity Depend on Model

Product Description

Small scale ceramic grinding machine ceramic ball mill
----Description
Small scale ceramic grinding machine ceramic ball mill
    The rotational speed of the ball mill is divided into two kinds of constant speed and speed regulation, and the corresponding rotational speed is chosen according to the properties of the ball milling raw materials. The ball mill can be used for dry grinding and wet grinding.

----Parameter
Small scale ceramic grinding machine ceramic ball mill spec.

Model	Jar quantity	Jar volume	Single jar maximum grinding capacity	Speed(r)	Motor power	Dimension(mm)	Weight(kg)
WZM- 1L -1	1	1L	200g	100	120W-2	500* 400* 400	46
WZM- 2L -2	2	2L	500g	0-95	550W-2	550* 450* 450	100
WZM- 3L -1	1	3L	2KG	90	120W-2	600* 480* 500	52
WZM- 5L -1	1	5L	4KG	80	120W-3	650* 500* 500	56
WZM- 3L -2	2	3L	2KG * 2	90	120W-5	700* 600* 520	80
WZM- 5L -2	2	5L	4KG * 2	80	120W-5	750* 650* 520	87
WZM-10L -2	2	10L	8KG * 2	70	550W	900* 650* 520	110
WZM-15L -2	2	15L	10KG * 2	68	550W	900* 650* 520	140
WZM-20L -2	2	20L	15KG * 2	65	750W	1000* 730* 550	160
WZM- 3L -4	4	3L	2KG * 4	80	550W	900* 480* 500	70
WZM- 5L -4	4	5L	4KG * 4	60	750W	1300* 680* 520	120
WZM-10L -4	4	10L	8KG * 4	60	1.5KW	1400* 700* 520	160
WZM-15L -4	4	10L	10KG * 4	60	1.5KW	1200* 1000* 520	200
WZM-20L -4	4	10L	15KG * 4	60	1.5KW	1600* 1200* 600	300

 ----Features
Small scale ceramic grinding machine ceramic ball mill features
1.: general dry grinding ball milling powder according to the raw material feed particle size corresponding ball mill, such as feed particles can choose the larger diameter ball mill, according to the milling time increasing fineness is high, the general material can reach more than 600 mesh.
2. wet grinding: wet grinding process can effectively increase the fluidity of material in ball mill, and can reach more than 1000 mesh according to ball milling time and process fineness.
3. speed: speed of conventional ball milling can speed 50-70r/min, of course, is not suitable for all materials, commonly used methods for determining speed milling tank ball mill ball mill the louder the sound proof in the tank on the material milling effect is more obvious.
4. timing: timer adopts digital display timing, setting time is 1-99 hours
It is necessary to unplug the socket and set the time before setting.

----Magnetic tube pictures

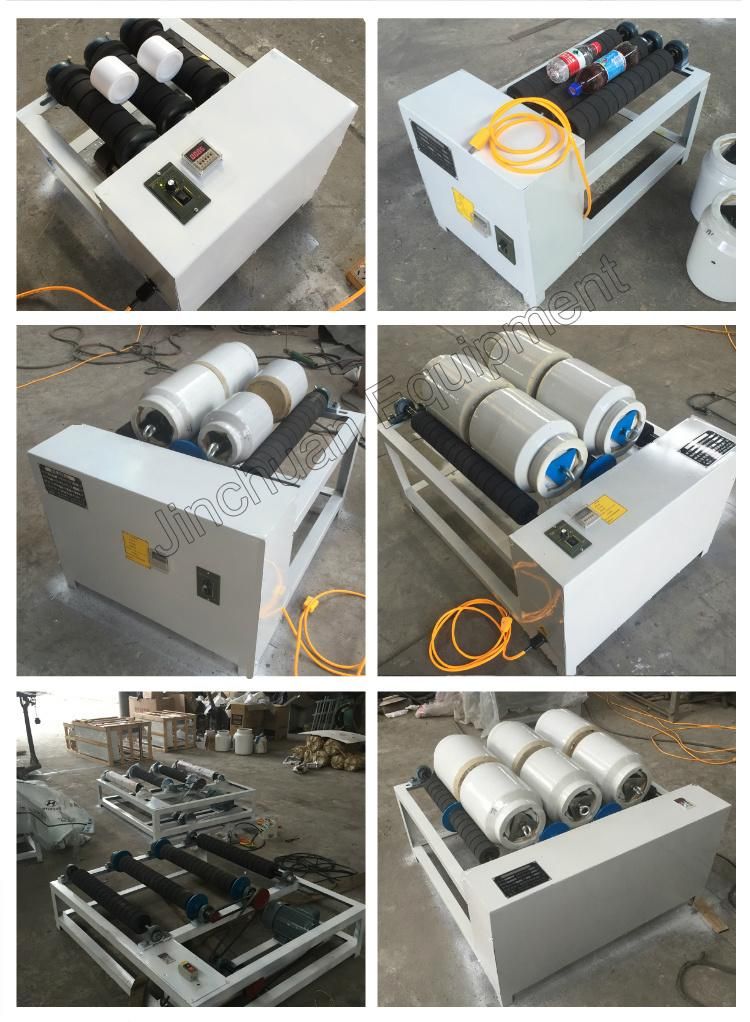

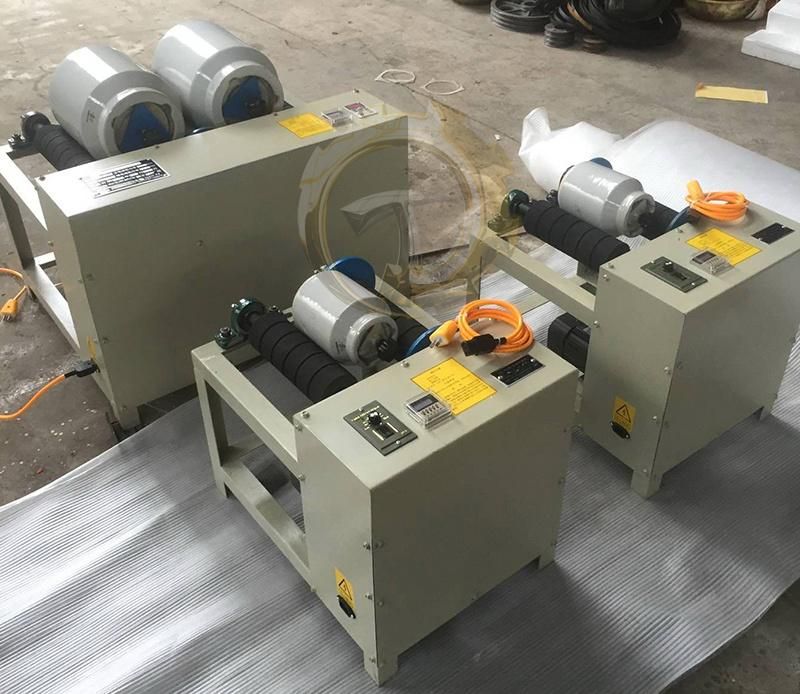

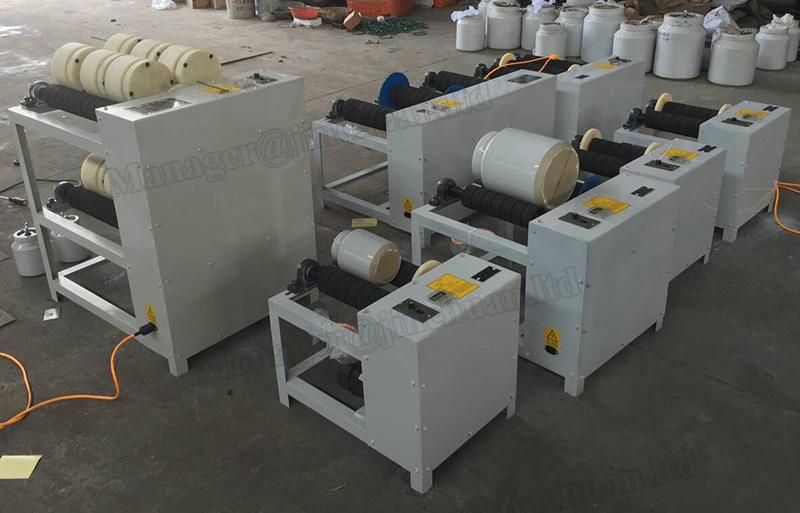

Small scale ceramic grinding machine ceramic ball mill pictures

----Our service
Pre-Sales Service:* Inquiry and consulting support.
                 * Sample testing support.
                 * View our Factory.
After-Sales Service: * Training how to instal the machine, training how to use the machine.
                   * Engineers available to service machinery overseas.
----FAQ
1Q:What information should customers give us in order to let us provide more efficient & suitable quotation and assistance.
A:Which product and specification do you want?
B:What's the purpose of buying the machine?
C:What is the capacity per hour?
2Q:What about the price?
A:We would give you a cheapest price according to the model and quantity.
3Q:what's the payment terms?
A:Negotiable
4Q:Are customized products accepted?
A:Your idea, your choice, we design. Nothing is impossible. We are always waiting for you here, where are you.
5Q:Why choose Jinchuan mineral eauipment co., ltd ?
A:We are the professional manufacturer in China for such industry.
B: We have R&D team who can design fully new and automatic machine to update the processing.
C: Excellent pre-sale and after-sale services. If you give me a chance, you will get it Extremely worthy value.

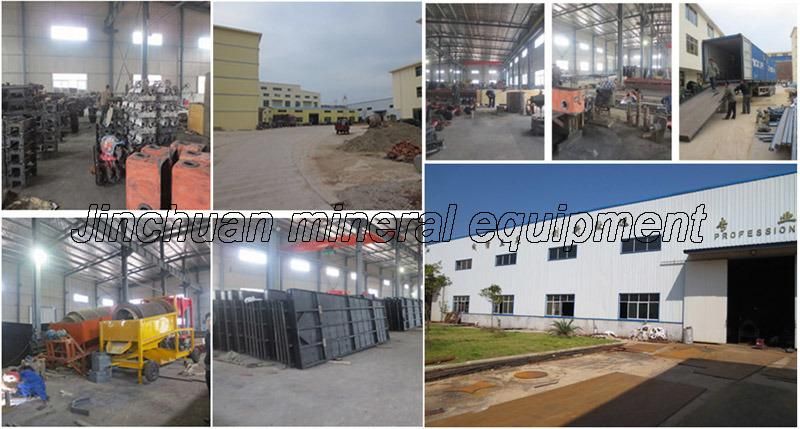

----About Jinchuan mineral equipment Co.,Ltd
 We are a high-tech company which was founded in 2003. We specialize in the research and production of mineral processing equipment.
Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.

We have a strong R&D department and experienced engineers. We can design and make OEM/ODM products according to your ideas and samples.

Quality control is more an action than a slogan. Strict quality control is implemented in all aspects of operations to meet the high standards of top-tier customers. This philosophy has permeated all levels of the production process, covering:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Finished product inspection
(4)Random warehouse inspections

Through many years of development, our company has become a large-scale enterprise with research, production, assembly and marketing capabilities. Our products are distributed all over the world.
We are looking forward to receiving your inquiries!
