PD125 Tapered Chisel Integral Steel Grinder

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Grinding Machine
  • Name：Grinder Machine
  • Brand：Prodrill
  • Air Pressure：6-8bar
  • Air Consumption：2m3,Min
  • Output Power：1.8kw

Base Info

  • Model NO.：PD 125
  • Spindle Speed：22, 000 r.p.m
  • Flushing Air Pressure：4 Bar
  • Water Consumption：5-6 L,Min
  • Air Hose Inner Diameter：19mm(1,2")
  • Water Hose Inner Diameter：6mm(1,4")
  • Transport Package：Wood Package
  • Specification：CE, SGS, ISO9001
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：10000pic,Months

Description

Basic Info.

Model NO. PD 125 Spindle Speed 22, 000 r.p.m Flushing Air Pressure 4 Bar Water Consumption 5-6 L/Min Air Hose Inner Diameter 19mm(1/2") Water Hose Inner Diameter 6mm(1/4") Transport Package Wood Package Specification CE, SGS, ISO9001 Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10000pic/Months

Product Description

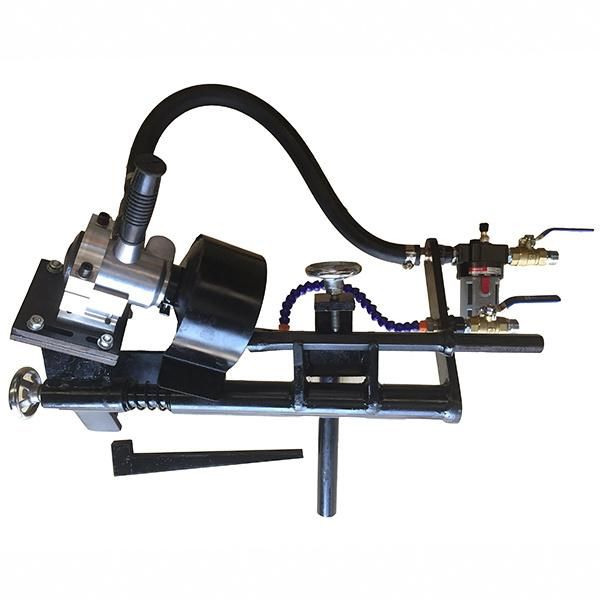

                                                          PD125 integral rod Grinder
PD125 Tapered Chisel Integral Steel Grinder
From Rock drilling tools manufacturer ProDrill: PD125 Pneumatic Integral Steel Grinder is a milling machine surface grinding, capable for re-grinding blunted drilling steel integral bits carbide at an angle of 110 degrees, since this Integral Drill Steel Grinder is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Chisel bit type Integral Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.

This pneumatic machine is designed for grinding the chisel bits and integral drill rods. Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and save your money.

It's hand-held using, very convenient. And we have CE certificate for this machine.

Integral Drill Rod Grinder Technical Parameters

 Rotation speed 3500 RPM max
 Motor power HP2
 Sharpening angle 110°
 Sharpening radius 125 mm
 Operating pressure insufficient 6.0 bar
 Air consumption at 6 bar 1.5 mc/min
 Abrasive grinder diameter 152 mm
 Grinder height 70 mm
 Grinder thickness 22 mm
 Grinder hole(diameter) 32 mm
 Bench version weight 36 kg
 Portable version weight 37 kg
