Ervin Fatigue Testing 3000 Times Steel Grit for Sandblasting/Polishing
Jinan Junda Industrial Technology Co., Ltd.- Shotblast Type:Steel Grit Abrasive
- Shotblast Material:Steel Grit
- Sandblasting Type:Automatic Sandblasting
- Shotblast Application:Shipbuilding
- Sandblasting Method:Dry Spray
- Sandblasting Applications:Metallurgy
Base Info
- Model NO.:G25
- Product Name:3000 Times Steel Grit
- C:0.8-1.2%
- Hardness:Gh60-63HRC, Gl53-60hl, Gp40-50HRC
- Apprance:Angular
- Chemical Composition:C, Si, Mn, S, P, Cr
- Applications:Casting, Scale Removal of Forging and Heat-Treated
- Durability:Very Good
- Fatigue Life:3000 Times
- Diameter:1mm
- Type:G 10-G 120
- Micro Structure:Martensite Structure
- Cr:0.26%
- Si:0.4-1.2%
- Sample:Within 500g
- Shape:Angular
- Transport Package:25 Kg,Bag, Then 40 Bags in One Ton Bag
- Specification:g25
- Trademark:Honest Horse
- Origin:China
- HS Code:720510
- Production Capacity:3000tons,Month
Description
Basic Info.
Model NO. G25 Product Name 3000 Times Steel Grit C 0.8-1.2% Hardness Gh60-63HRC, Gl53-60hl, Gp40-50HRC Apprance Angular Chemical Composition C, Si, Mn, S, P, Cr Applications Casting, Scale Removal of Forging and Heat-Treated Durability Very Good Fatigue Life 3000 Times Diameter 1mm Type G 10-G 120 Micro Structure Martensite Structure Cr 0.26% Si 0.4-1.2% Sample Within 500g Shape Angular Transport Package 25 Kg/Bag, Then 40 Bags in One Ton Bag Specification g25 Trademark Honest Horse Origin China HS Code 720510 Production Capacity 3000tons/MonthProduct Description
Ervin fatigue testing 3000 Times Steel GritG25 for SandblastingOur steel shot and steel grit products have passed the Ervin fatigue life test and SAE-J444 standard

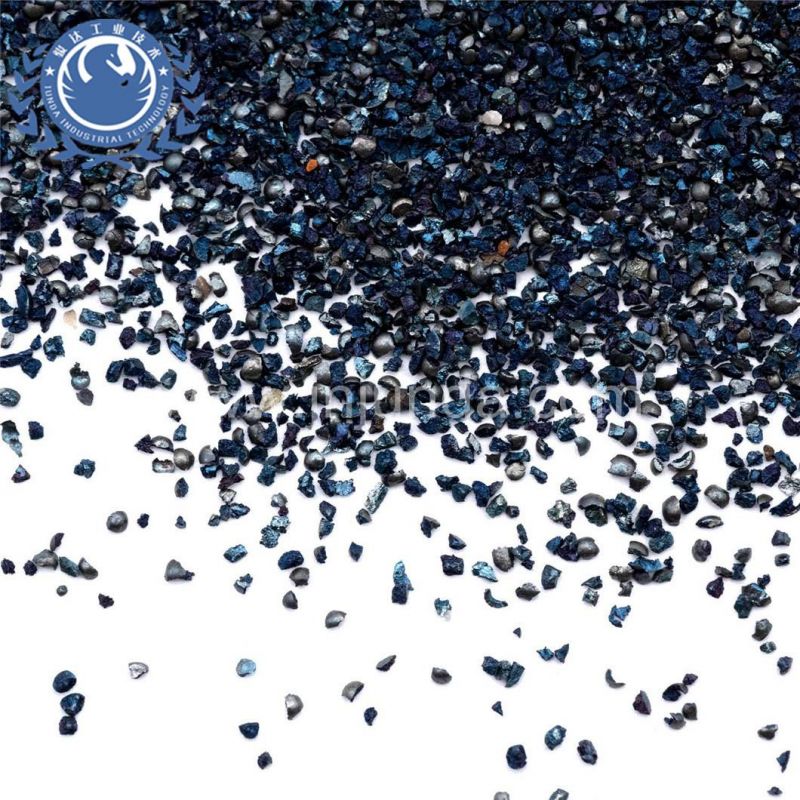

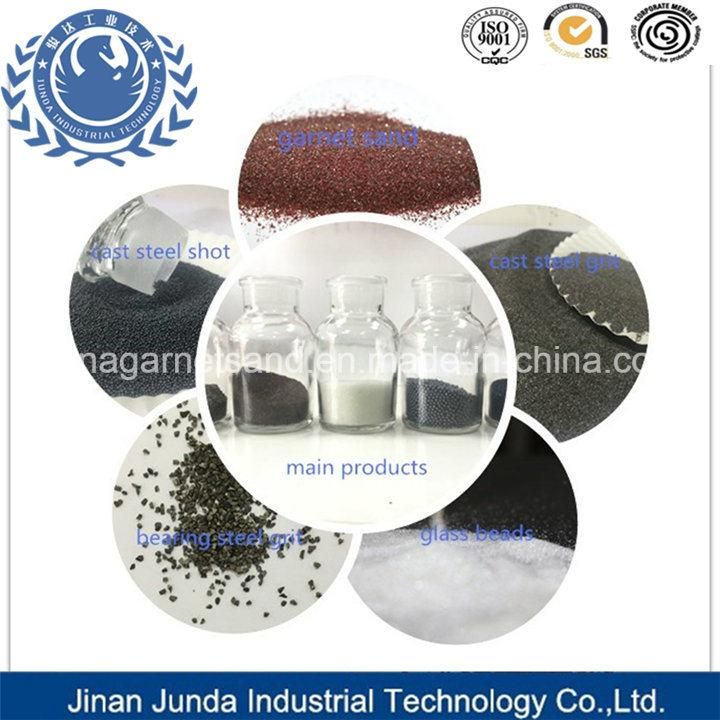

1.PICTURES OF STEEL GRIT
2.SPECIFICATION OF STEEL GRIT
Project | Quality |
C | 0.8-1.2% |
Si | 0.4-1.2% |
Mn | 0.6-1.2% |
Cr | 0.26% |
Hardness | GP 41-50HRC;GL 50-55HRC;GH 63-68HRC |
Density | 7.6g/cm3 |
Micro structure | Martensite structure |
Appearance | Angular Hollow particles<5% Crack particle<3% |
Type | G120,G80,G50,G40,G25,G18,G16,G14,G12,G10 |
Diameter | 0.2mm,0.3mm,0.5mm,0.7mm,1.0mm,1.2mm,1.4mm,1.6mm,2.0mm,2.5mm |
Application | 1.Blast cleaning: Used for blast cleaning of casting, die-casting,forging; sand removal of casting, steel plate, H type steel, steel structure. 2..Rust removal: Rust removal of casting, forging, steel plate, H type steel,steel structure. 3.Shot peening: Shot penning of gear, heat treated parts. 4.Shot blasting: Shot blasting of profile steel, ship board, steel board, steel material,steel structure. |

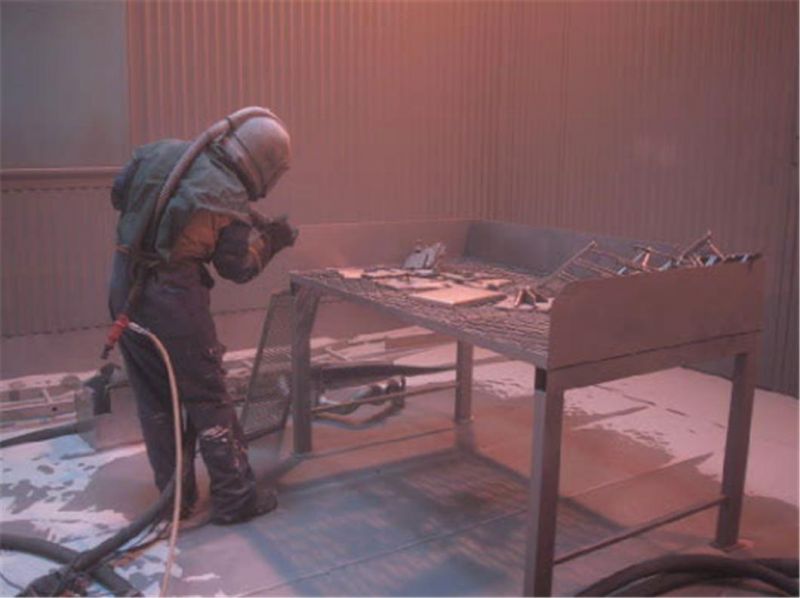

3. APPLICATION OF STEEL GRIT
(1)Cleaning: blast cleaning, steel blasting cleaning, casting, die casting, forging, forging the shotblast cleaning, the shotblast cleaning steel blasting plate for castings deoxidization, cleaning, cleaning, clean, H section steel, steel structure.
(2)Derusting: blast cleaning, blast cleaning, casting rust, forgings, rust removing, forgings, iron removal, steel derusting, h-steel derusting, steel structure derusting.
(3)Reinforcement: heat treatment part shot shot strengthening, gear shot strengthening.
Steel grit blasting: shaped steel grit blasting, steel grit blasting, ship plate shot blasting, steel plate spray shot, steel grit blasting.

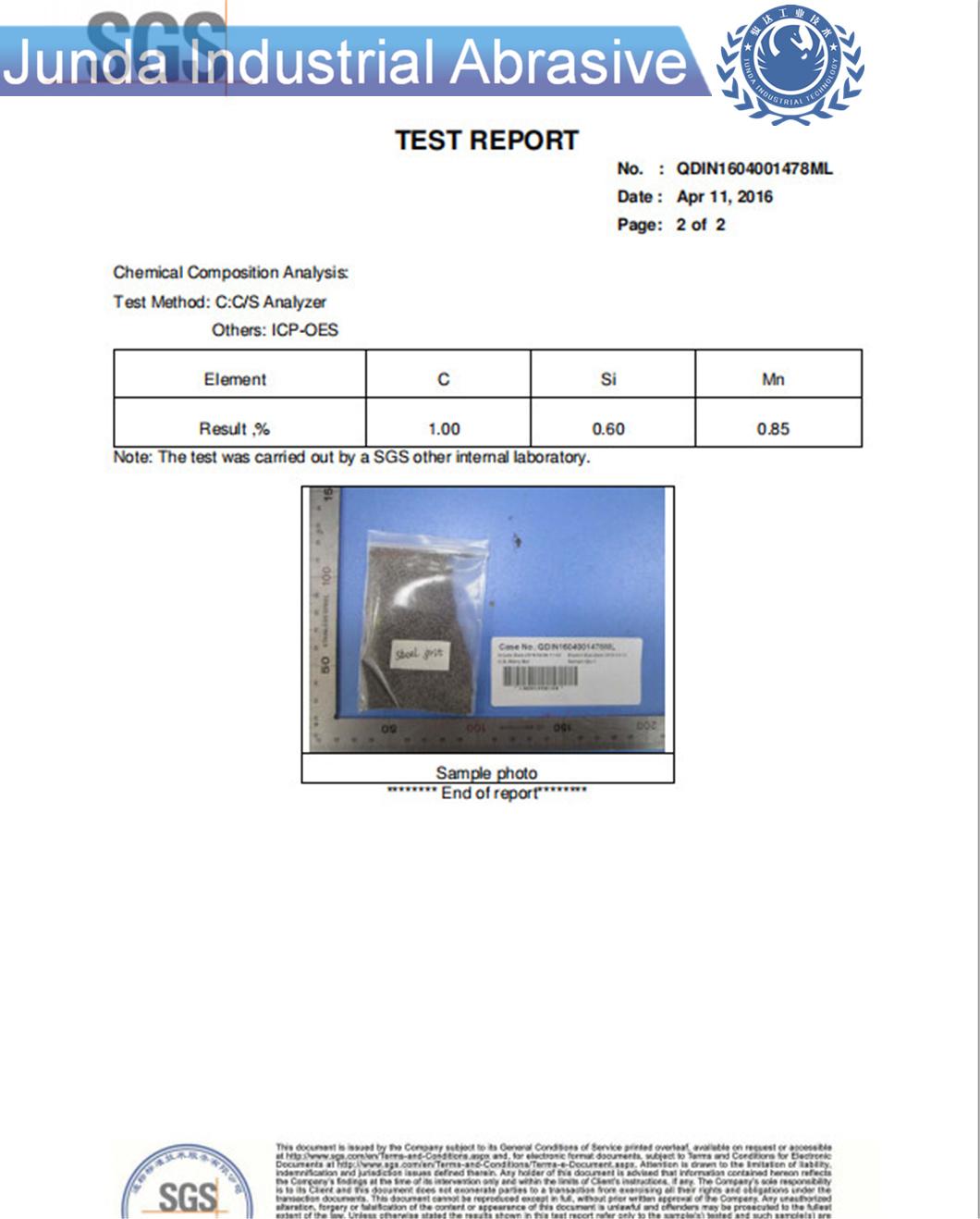

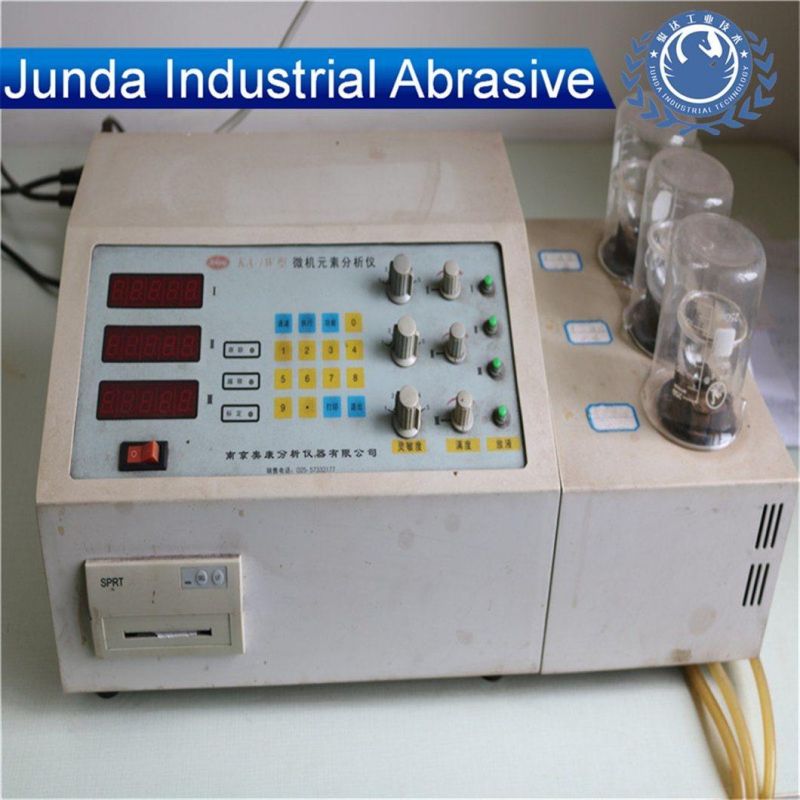

4.TESTING EQUIPMENT and SGS REPORT OF STEEL GRIT

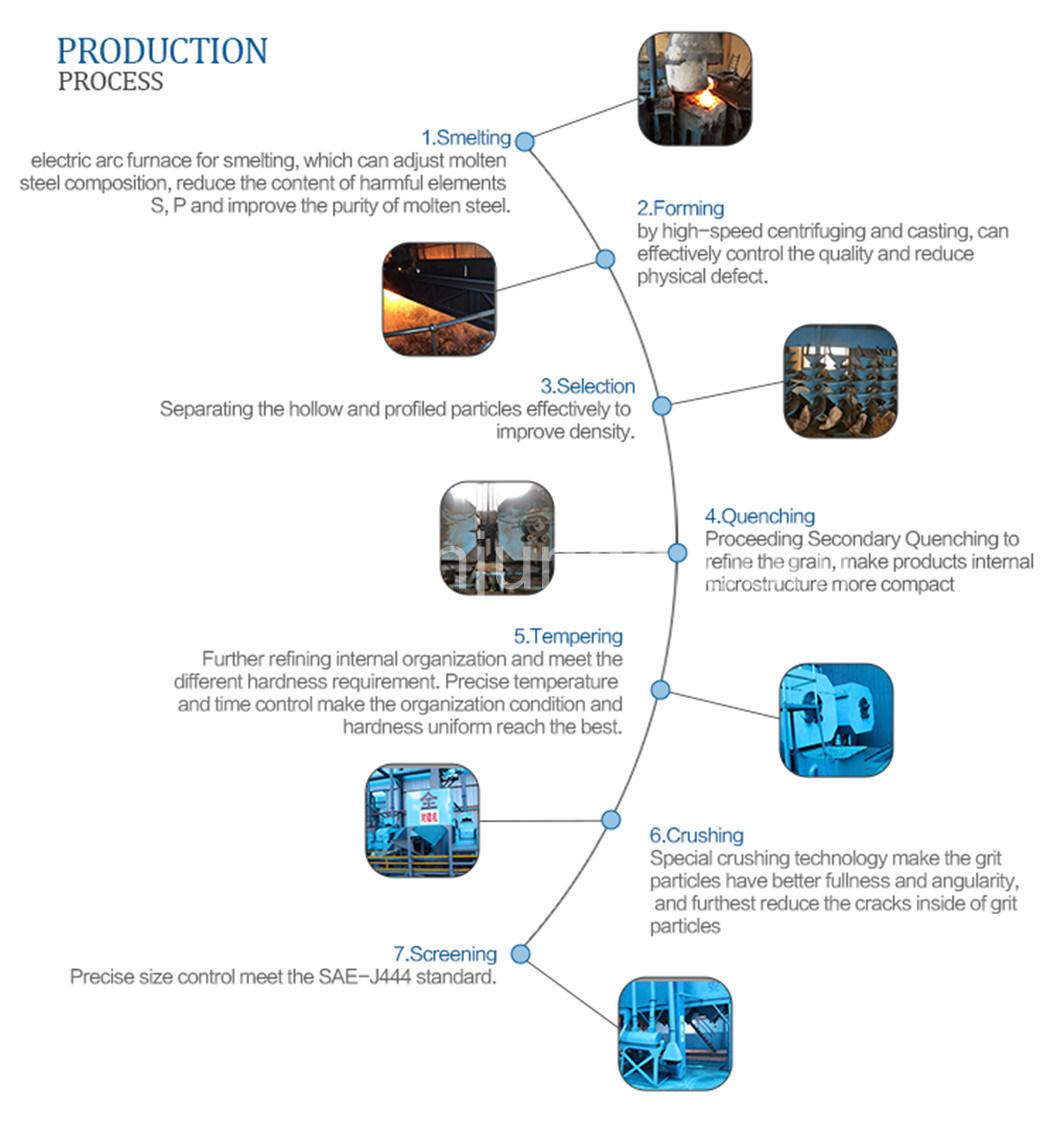

5.PRODUCTION OF STEEL GRIT

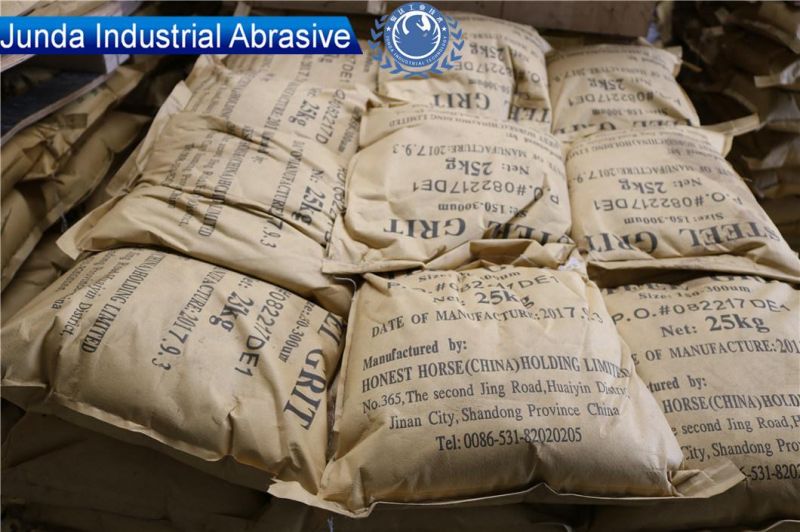

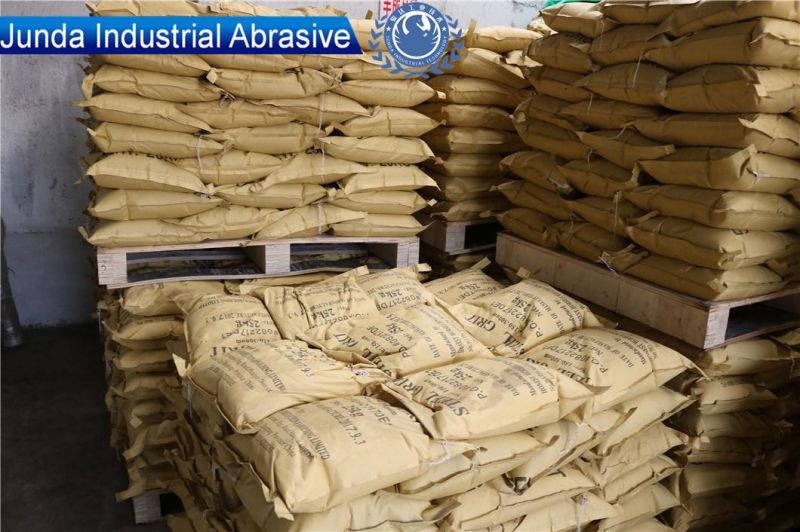

6.PACKAGE
1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.
4. One ton loose in one ton bulk bag.
5. All pakages are lined with waterproof materials.
6. Gnerally, one 20GP container can load 25 tons, 27 tons at most.
We can also pakage according to costomers' requirements.
7.COMPANY INFORMATION
Jinan Junda Industrial Technology Co.,Ltd. ,authorized by Honest Horse (CHINA) Holding Limited ,is established in 2005.Our company headquarters is located in Jinan city,Shandong Province,China. We are the manufacturer of abrasive media in north China which products include bearing steel grit, cast steel grit, cast steel grit, steel shot and garnet sand.
Based on our good qualified product and good service,we have a good reputation among our customers. And we welcome customers all over the world do cooperation with us!
8.RFQ
Q1. What is the mode of your payment?
T/T: 50% advance payment and the rest 50% payment oay us when you get the scanned B/L from our E-mail.
L/C:100% irrevocable L/C at sight.
Q2. What's the MOQ of your product?
As usual MOQ is 5TONS.Or as your require, we need to calculate the new price to you.
Q3. Can you provide the free samples?
Yes, we can send free samples less than 500g to you. Normally, we can send samples to customer by
express, such as DHL,TNT,Fedex,Aramex, etc.
Q4. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
