Ym-630 Type 280 Kgs Weight Epoxy Grinding Machine

Henan Ideal Machinery Equipment Co., Ltd.
  • Type：Disc Grinder
  • Power Source：Electricity
  • Object：Drilling Bit
  • Application：Construction
  • Disc(Wheel) Type：Grinding Disc
  • Material：Metal

Base Info

  • Model NO.：YM-630
  • Working Style：High-speed universal
  • Disc Diameter：180mm
  • Variable Speed：With Variable Speed
  • Power：7.5kw
  • Votage：380V
  • Frequency：50Hz
  • Electric Current：22.0A
  • Noisy：50-60 Dba
  • Speed：0-750rpm
  • Working Width：650*650mm
  • Water Tank：60L
  • Driving Method：Gear
  • Weight：330kg
  • Transport Package：Wooden Case
  • Specification：1280*650*1100mm
  • Trademark：IDEAL
  • Origin：Henan
  • Production Capacity：500,Month

Description

ModelYM330YM630YM700Pan diameter330MM630mm700mmMotor power 3KW7.5kw15kwPan speed0-1800R/MIN0-1800r/min0-1800r/minGrinding bit amount3PCS OR 5PCS12pcs12pcsWork efficiency2500-3500m/8h3000-4000m/8h3000-4000m/8hMotor Speed1440r/min1440r/min1440r/minOutline size1100*500*950mm1280*650*1100mm1280*710*1100mmWeight120kgs280kgs350kgs

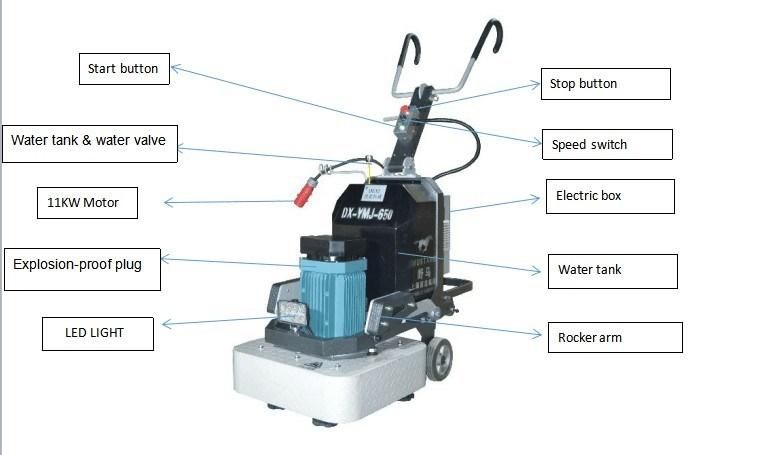

Instruction:

  1. Turn up the machine, clean up the three-blades pan, put the rotary vane disc equip the head of three blades, Put down the machine to the working site.
  2. Connect the power by explosion-proof plug,(must use international standard cable conductor equal or more than 4²),turn on the red start button, red power led lights up.
  3. press the green start button, frequency charger start working.
  4. Rotate the speed switch , the motor start working , machine start normal work.
  5. After finish working, turn down the speed switch to minimum value, press red stop button after the machine completely finished working, then close the power;(attention:Red stop button is allowed when emergency.)

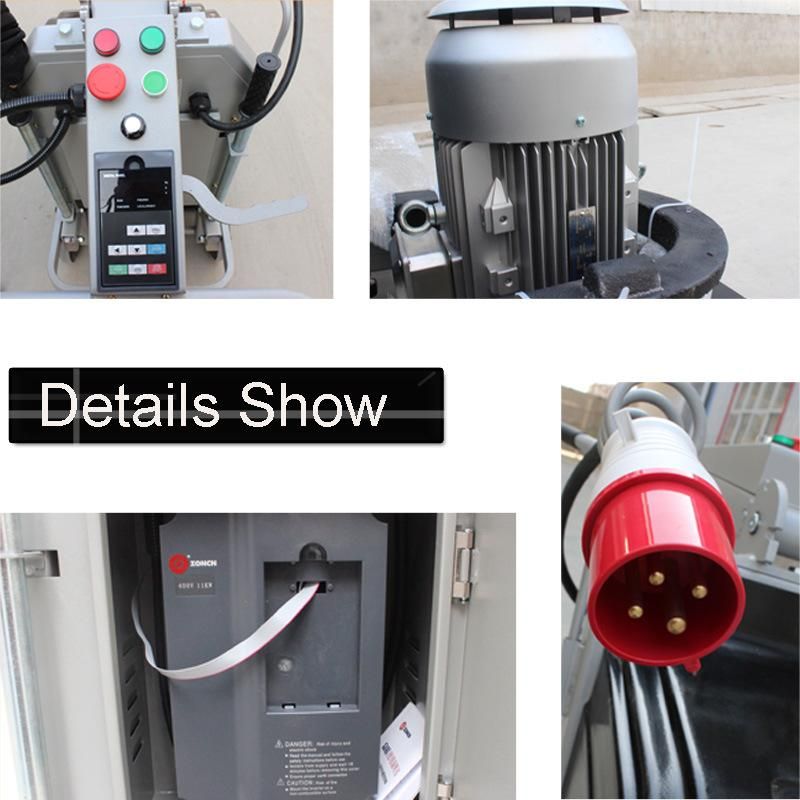

product details:


Ym-630 Type 280 Kgs Weight Epoxy Grinding Machine

Ym-630 Type 280 Kgs Weight Epoxy Grinding Machine

Ym-630 Type 280 Kgs Weight Epoxy Grinding Machine
