Main character:

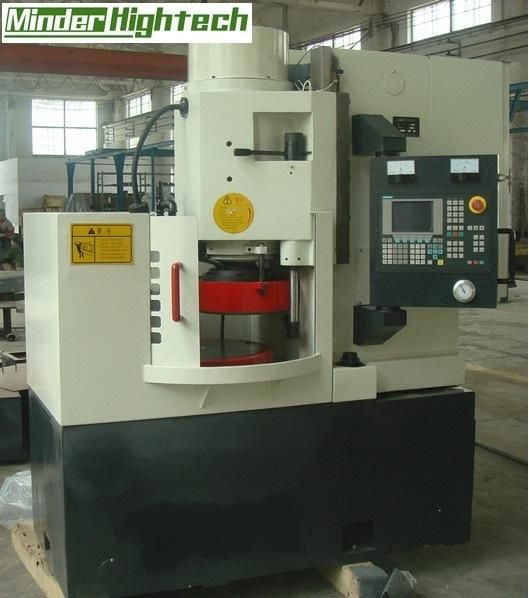

this grinder using high power built-in generator, config sand tile chuck at the axis end, driving by motor directly. the grinding head is feeding vertically and the electromagnetism chuck rotate on the bed saddle, and the bed saddle moving horizontally. this grinder is a very high power, high efficiency grinder, main application at rough and precise the surface of component, as its high precision and easy operation, suitable for machining mass production of middle or small component.
1, grinding head: spindle is together with the motor armature, working stable because of processed dynamic balance, with high precision rolling bearing assembly.
2, chuck table: with electromagnetism chuck table or customized.
3, pillar: pillar and the main body is connected by 3 adjustable supportive screw, if we incline the grinding head by changing the vertical range of main spindle and the worktable, it will be more efficiency.
4, safety: grinder standard GB15760 and JB5029-88.Main specification:

model	MDFD-7100LM	MDFD-7080LM
max grinding dimension(diameter* height):	dia 1000*400mm	dia 800*300mm
chuck table diameter	dia 1000mm	dia 800mm
chuck table speed	11 to 22r/min	11 to 22r/min
chuck table stroke	570mm	500mm
chuck table feeding speed	3.7m/min	3.7m/min
main spindle speed	740r/min	920r/min
grinding head feeding speed	0.008 to 1.6 mm/min(20grade)	0.008 to 1.6 mm/min(20grade)
grinding motor power	35HP	35HP
chuck table rotate motor power	2/3 HP	2/3 HP
chuck table feeding motor power	1.5HP	1.5HP
grinding head feeding distance by manual wheel	0.4 mm/r	0.4 mm/r
grinding head feeding distance by division circle	0.8mm/r; 0.01mm/scale	0.8mm/r; 0.01mm/scale
sand tile dimension	80*25*150mm	80*25*150mm
weight	~6T	~6T

Accuracy and acceptance
1, chuck table beat: 0.015mm
2, chuck table flatness: 0.015mm
3, main spindle axial float: 0.008mm 4, main spindle radial float: 0.015mm
Manufactural standard
GB/T 15760-2004; GB/T 25373-2010; GB/T10927-2004; GB/T13574-1992 JB/T9909.-1999; JB/T9909.3-1999; GB/T5226.1-2002IE60204-1:2000
Main configuration
Packing list

item	name	supplier
1	lead screw	HANJIANG
2	lubrication pump	MIQIER NANJING
3	main bearing	tile bearing
4	main electrical component	CHINT

name	spec	qty	note
main machine		1	including control part
cooling device	M74100a-50	1set
wrench	M74100a-60-01	1set	for main spindle
wrench	M74100a-60-02	1set	for screws on spindle
wrench	M74100a-60-03	1set	for 3 screws on pillar
wrench	M74100a-60-04	1set	for 3 screws on pillar
metal pad	200*100	8pcs
anchor bolt	M20*400	3pcs
nuts	M20	3pcs
flat gasket	20	3pcs
sand tile	25*80*150	20pcs
sand tile chuck	M74100a-61	1pc	on main machine
