• Model NO.：GT-PULSE
• Circular Degree：<1
• Technics：Electroplating
• Working Style：Tool Grinding
• Material Type：Tungsten
• Application：TIG Welding
• Suitable Diameter：1.6,2.4,3.2
• Bevel Angel：22.5 and 30 Degree
• Transport Package：Tool Box+Carbon Box on Pallet
• Specification：310*155*135MM
• Trademark：TAOLE
• Origin：Shanghai, China
• HS Code：820790900
• Production Capacity：8000 Sets, Month

Basic Info.

Model NO. GT-PULSE Circular Degree <1 Technics Electroplating Working Style Tool Grinding Material Type Tungsten Application TIG Welding Suitable Diameter 1.6/2.4/3.2 Bevel Angel 22.5 and 30 Degree Transport Package Tool Box+Carbon Box on Pallet Specification 310*155*135MM Trademark TAOLE Origin Shanghai, China HS Code 820790900 Production Capacity 8000 Sets/ Month

Product Description

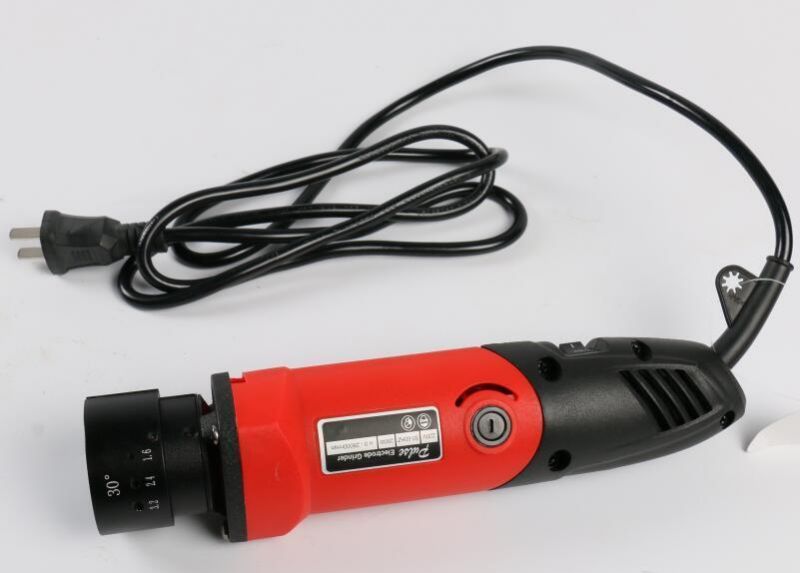

GT-PULSE Handheld Tungsten Grinder for TIG welding

Tungsten electrode grinder is the best and safe way for improving TIG argon ARC Welding & Plasma welding etc. Generally it request to grind on tungsten and it is very necessary to use a tungsten electrode grinder to shape the tungsten and achieve a surface roughness for improving welding quality and reduce harmful operation by human body. Portable electrode Grinder Sharpener is easy to adjust on the sizes and bevel angel, Efficient operation with high quality.



Specifications for GT-PULSE Handheld Tungsten Grinder for TIG welding


Product Model	GT-PULSE	ST-40
Input Voltage	220V AC50-60Hz	220V AC50-60Hz
Total Power	200W	500W
Wire Length	2 meters	2 meters
Rotating Speed	28000 r/min	30000 r/min
Noise	65 db	90 db
Milling Diameter	1.6/2.4/3.2mm	1.0/1.6/2.0/2.4/3.2/4.0/6.0mm
Bevel Angel	22.5/30 degree	20-60 degree
Packing Box	310*155*135mm	385*200*165mm
N.W	1.2 KGS	1.5 KGS
G.W	2 KGS	2.5 KGS

Main Characteristics for Handheld Tungsten Grinder for TIG welding

1. Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.
2. Unique design for with dust collection to reduce human harm.
3. Easy adjust on bevel angel and tungsten diameter and portable design.
4. High Precision on surface to improve welding quality.
5. Electrodes and tips are sharpened to confirm to recognized standards
6. Replaceable grinding wheel diamond coated on both sides
7. Suitable for vary electrode angels and diameters with OEM service.
8. Customized available with OEM Service
