• Model NO.：SW30L
• Working Style：High-speed universal
• Disc Diameter：180mm
• Variable Speed：Without Variable Speed
• Hscode：8479820090

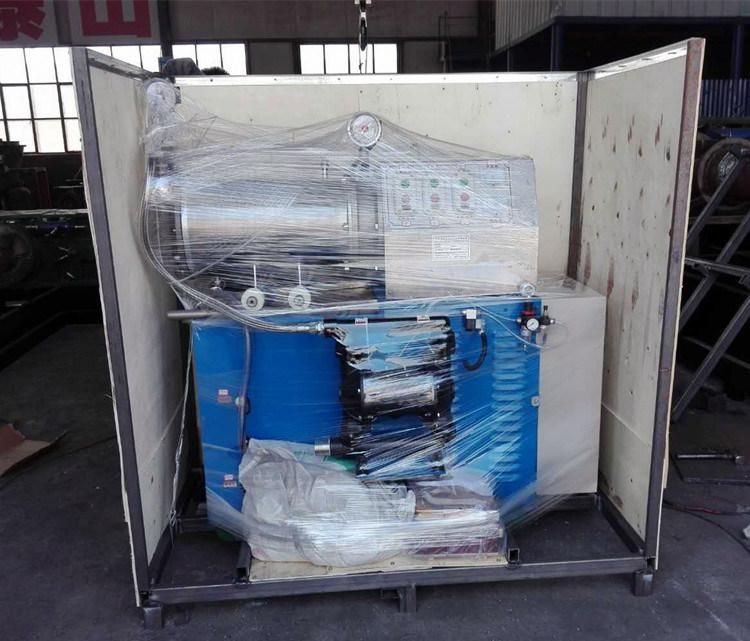

• Transportpackage：Plywood Packing
• Transport Package：Plywood Packing
• Specification：30L
• Trademark：keda
• Origin：Shandong
• HS Code：8479820090
• Production Capacity：1000PCS , Year

AgrochemicalsPesticide, Herbicide, Fertilizer, SCCeramic IndustryCeramic inks, Ceramic pigmentsPrinting InksInkjet, Screen printing inks, Flexo printing inksPigments and DyesPigment, Titanium dioxidePaint and CoatingConstruction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear CoatMineralsCalcium carbonate, Pharmaceuticals, Cosmetics

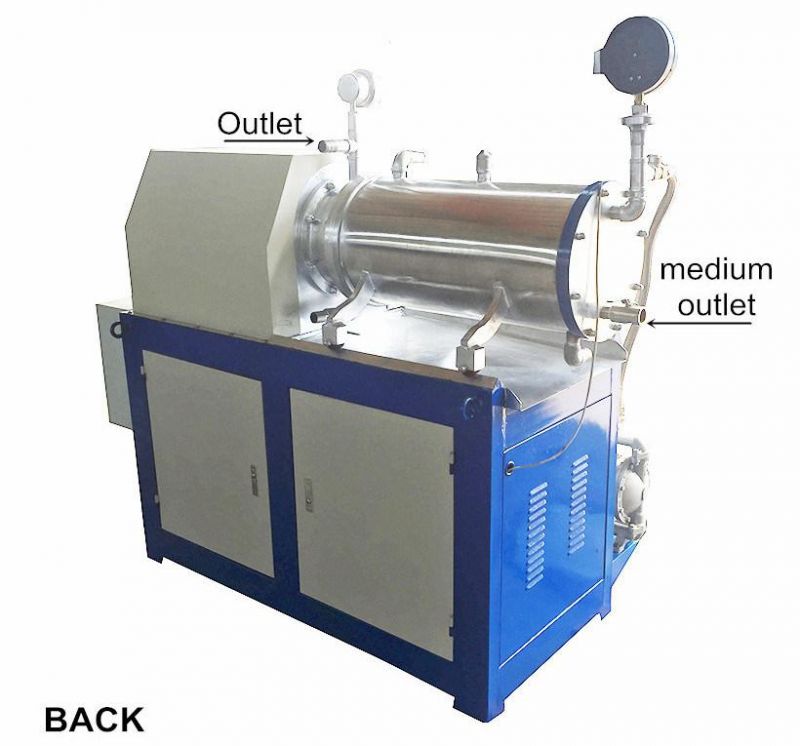

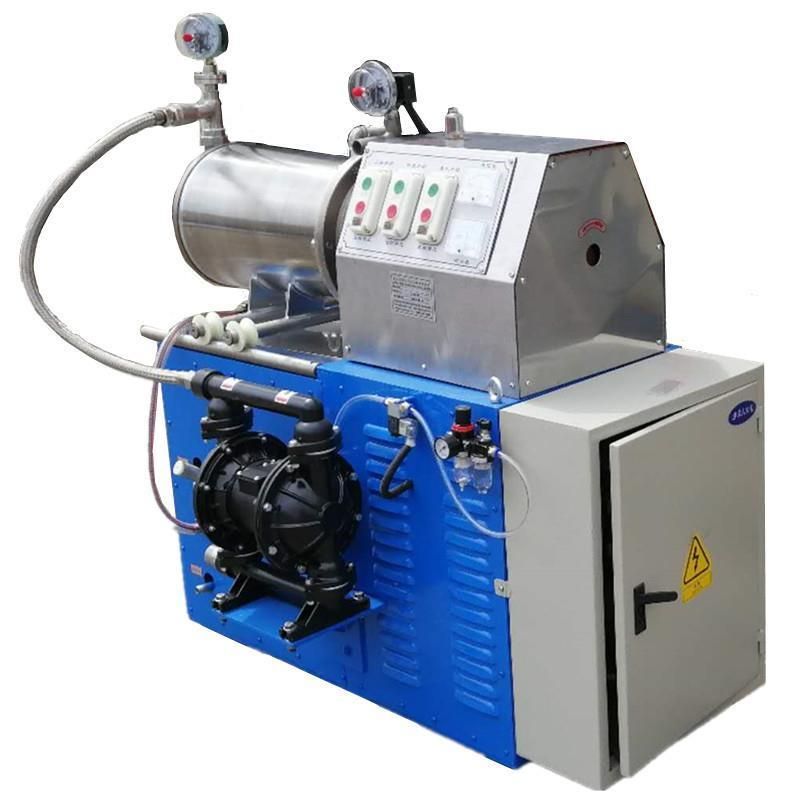

 Disc bead mill is a type of horizontal bead mill with large flow capacity. As a type ultra-fine grinding mill, the disc beas mill is the most widly used, most advanced and most efficient grinding equipment. The disc bead mill can grind the material to be 2-20um, is widely used in mineral, coatings,dyes,inks,photosensitive material, pesticides, medicine, lithium batteries, nano new material, carbon nonatubes, cosmetics,graphene etc.

Working principle of disc bead mill

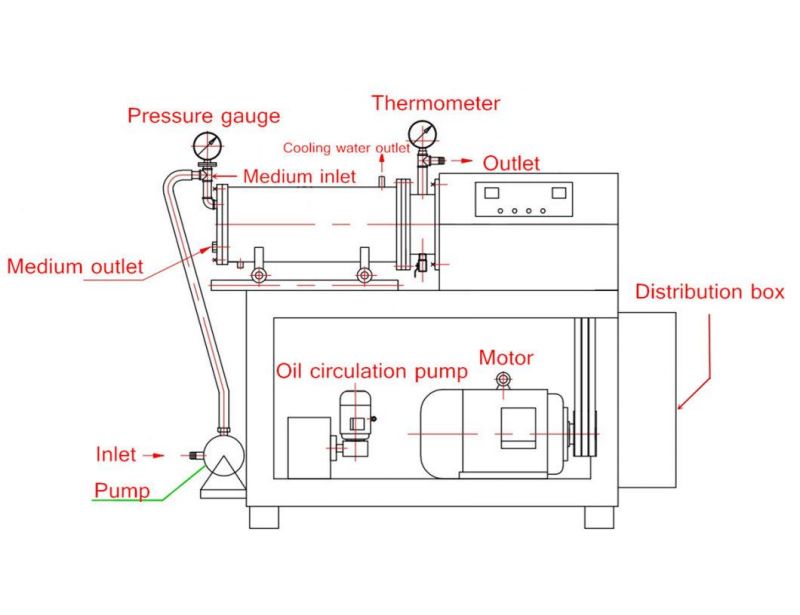

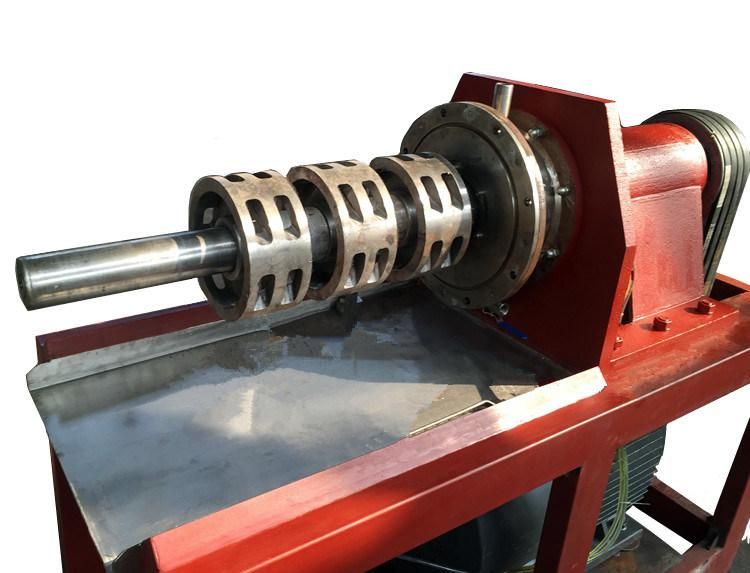

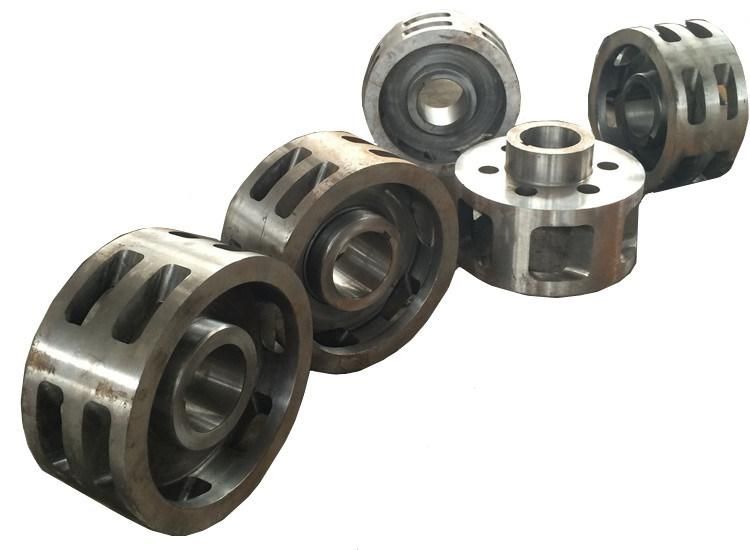

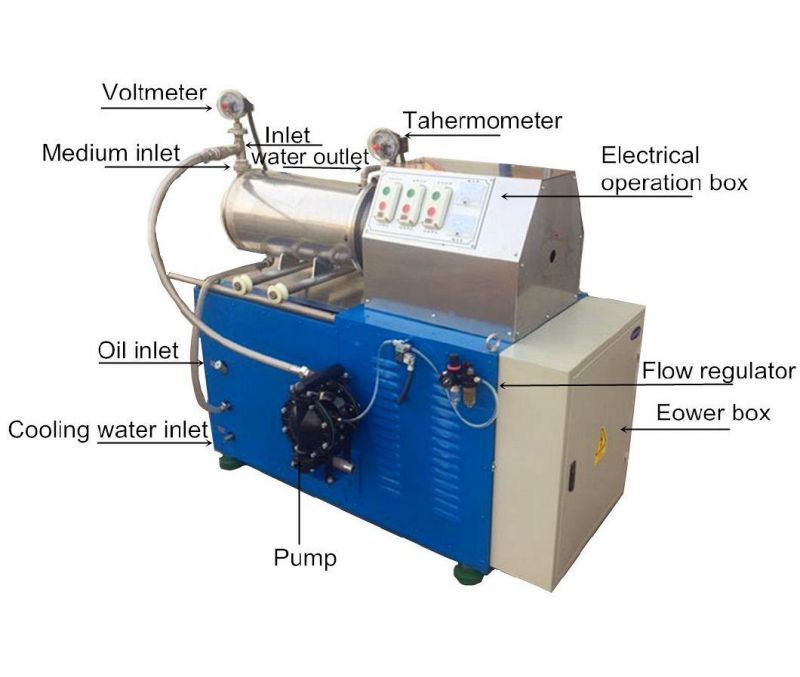

The dispersing device of disc bead mill is composed of a main shaft, a dispersing disc, a reflecting cage and a bushing. During operation, the mechanical energy generated by the rotation of the dispersing disc is transmitted to the grindingmedium through the rotation of the main shaft, so that the material is ground and dispersed uniformly. A reflective cage is arranged at the front end of the main shaft to prevent the grinding medium from collecting at the discharge scree and causing wear on the screen.

Features of disc bead mill

1.Elimination of all radial openings in the mill chamber.
2.Allowing for installation of exchangeable, through-hardened liner.
3.Exchangeable,through-haedened front & end plates and hardened wear bushing at exposed loacations.
4.Combination of neutral and conveying high intensity agitator discs,specific design featuring increased diameter.
5.Bead retention by centrifugal implement screen.
