• Model NO.：AGM18
• Working Style：High-speed universal
• Disc Diameter：100mm
• Variable Speed：With Variable Speed
• Button Size：6-25mm
• Power：1.5 Kw
• Weight (Kg)：600
• Transport Package：by Carton
• Specification：1600*700*1500mm
• Trademark：D Miningwell
• Origin：Zhejiang, China
• Production Capacity：300 Set,Sets Per Month

Basic Info.

Model NO. AGM18 Working Style High-speed universal Disc Diameter 100mm Variable Speed With Variable Speed Button Size 6-25mm Power 1.5 Kw Weight (Kg) 600 Transport Package by Carton Specification 1600*700*1500mm Trademark D Miningwell Origin Zhejiang, China Production Capacity 300 Set/Sets Per Month

Product Description

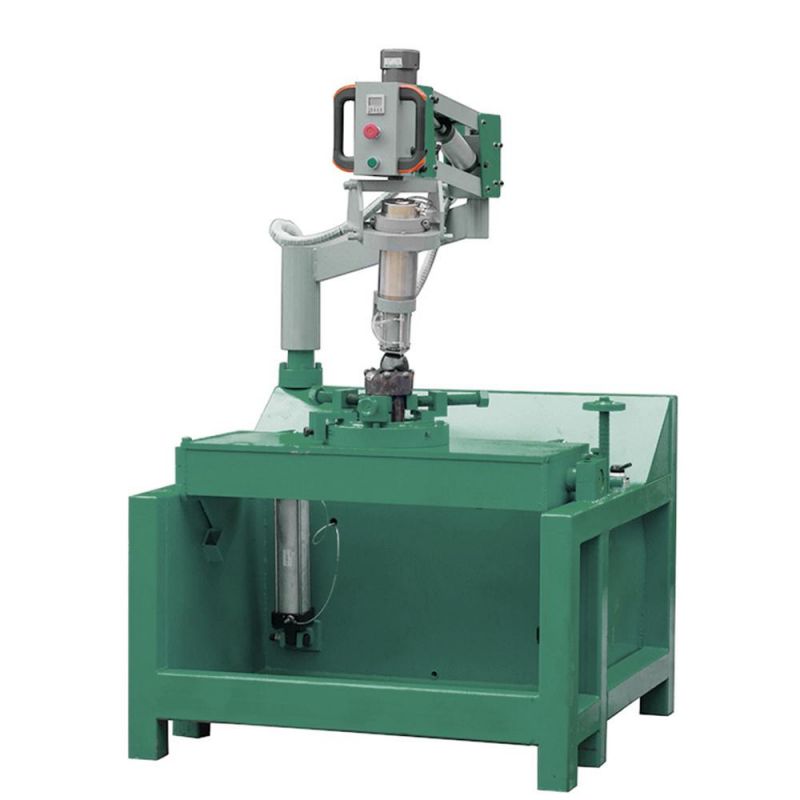

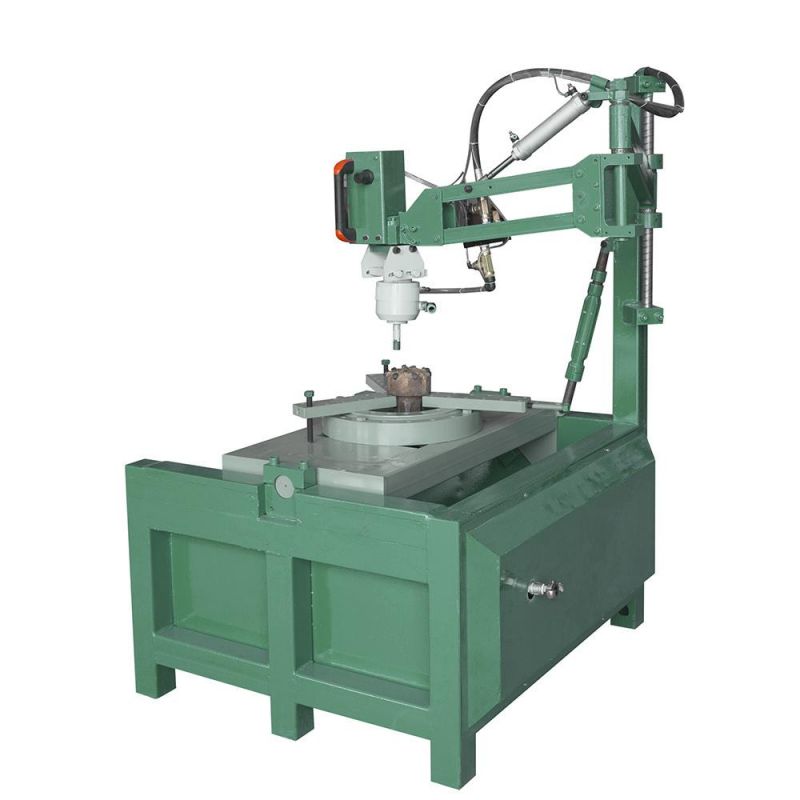

D miningwell Automatic Pnematic Drilling Bits Button Grinding Machine with Robot Arm

1. Button Bits Grinding Machine

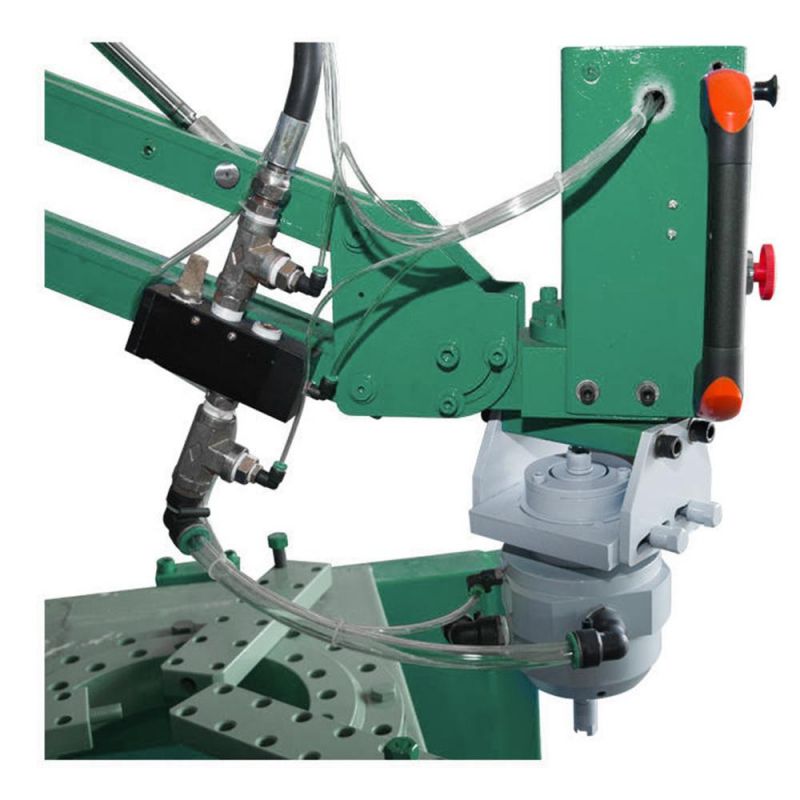

AGM18 button bit grinder is a high power, pneumatic tool for drill button bit, including tapered button bits, thread button bit, DTH hammer bit. Which is designed with robot arm to do the grinding automaticly and also with ajustable holding rack to make sure it's suitable for various size of button bits.

Our Air Grinders require a clean and dry air supply of 100 psi and 80 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.

Specification:

Rotation speed	20000 rpm
Motor: Pneumatic (air powered) Power output	1.5 KW
Work pressure	5-7 bar (100 psi)
Max. air pressure	8 bar (115 psi)
Air consumption	2.2 m3 / min (80ft3/min)
Max. water pressure	4 bar (60 psi)
Air hose diameter	19 mm
Water hose diameter	6 mm
Weight excl. packaging	330.0 Kg
Weight incl. Packaging	350.0 Kg
Transport dimensions:	1600*700*1500mm
Sound level	92 dB(A)

Advantage of Button Bits Grinder:
1). Automatic grinding-----makes it's easy to operate and save labour.
2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.
3). Quick chuck-----it's suitable for difference type of grinding cups.
4). Cooling system-----a recycling cooling system makes a safe and sustaining working.
