• Model NO.：SGB-MG72
• Certification：SGS, ISO
• Qaulity：a
• Size：All Sizes Can Be Produced
• Usage：Stone Cutting
• Manufacturing Arts：Sinter
• Kind：Stone Sawing Machine
• Transport Package：Carton, Wooden Box
• Specification：ISO, SGS
• Trademark：SANG
• Origin：Fujian, Quanzhou
• HS Code：82079010
• Production Capacity：300000PCS,Month

Basic Info.

Model NO. SGB-MG72 Certification SGS, ISO Qaulity a Size All Sizes Can Be Produced Usage Stone Cutting Manufacturing Arts Sinter Kind Stone Sawing Machine Transport Package Carton, Wooden Box Specification ISO, SGS Trademark SANG Origin Fujian, Quanzhou HS Code 82079010 Production Capacity 300000PCS/Month

Product Description

Advantage:
1.Long lifespan formular
2.High daily output
3.Strict quality control
4.Quick delivery 5-7 days

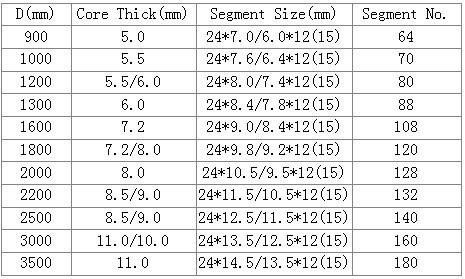

Some segment specifications for large diameter blade:

Customized specification is also available.

Points

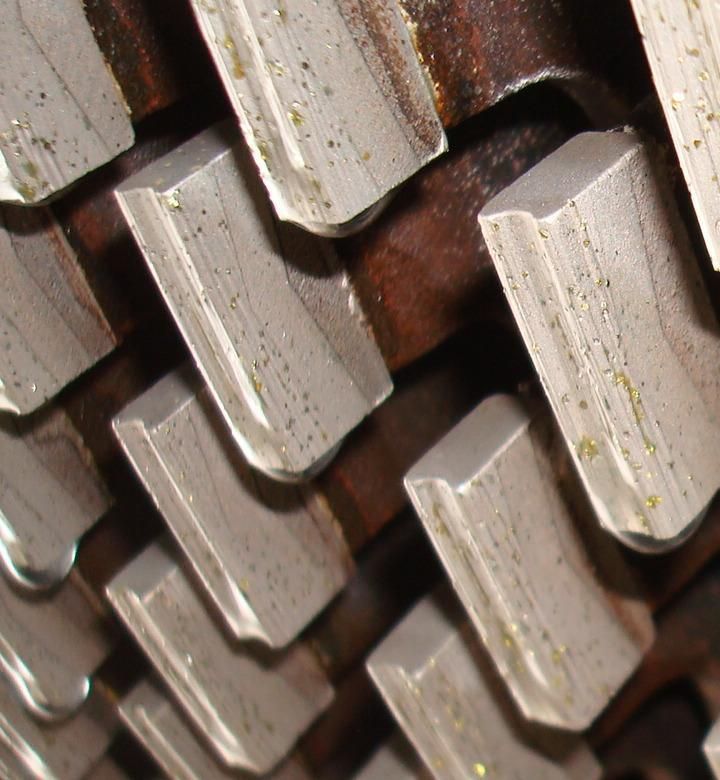

** The segments are attached to the core by brazing with silver solder;

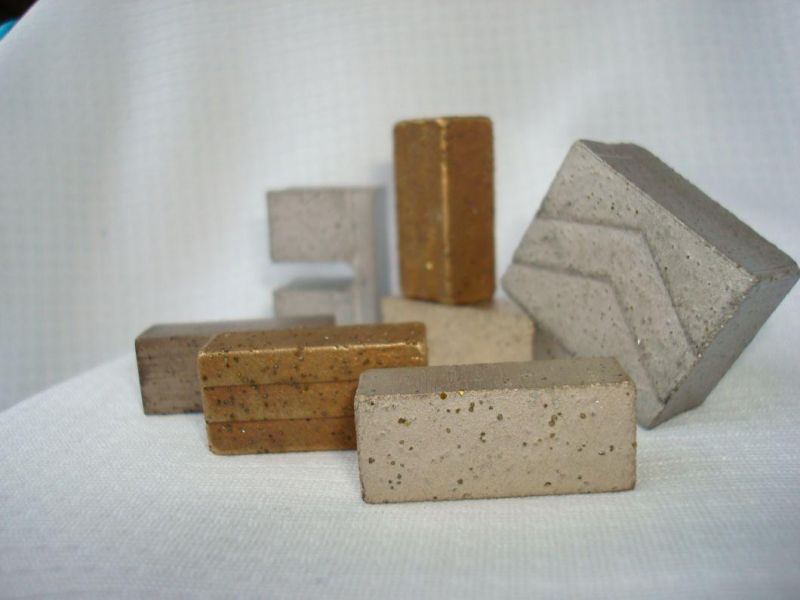

**High-quality Diamond Segment Made from high-grade Diamond by special and advanced technics;
**Segment  for diameter 300mm to 4200mm;
**Specifications supplied by customers are available;
**Segment can be produced for single blade, multi-blade;
**Professional formula are used coorespondently for cutting granite , marble,limestone, Lava stone,onxy,con;
**DImaonds and bond in the outer and inner layers are carefully designed to ensure cutting stability;

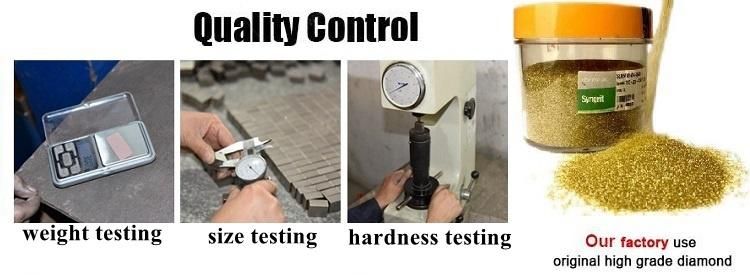

Picture of Inspection


Brief introduce of company:

With 18 years experience, SANG is increasingly supplying wide items of diamond tools internationally.  Under ISO rule, we have had the proved qualities systemized, with 3 basic grades which are characterized by fast cutting, long life and economic world wide, and effective formulas to fit exact machine/stone hardness/Country for higher match.

Diameter(mm)	core thick(mm)	segment size	segment  numbers
300/350	2.0/2.2/2.4	40*3.0*8	22/25
300/350	2.0/2.2/2.4	40*3.0*10	22/25
400	2.6/2.8	40*3.4*8	29
400	2.6/2.8	40*3.4*10	29
500	3.0	40*4.0/4.2*8	36
500	3.0	40*4.0/4.2*10	36
600	3.6	40*4.6/4.8*8	42
600	3.6	40*4.6/4.8*10	42
700	4.0	40*5.2*8	42/46
700	4.0	40*5.2*10	42/46
800	4.5	40*6.0*8	46/57
800	4.5	40*6.0*10	46/57
