• Model NO.：BTON200 Button Bits Sharpener
• Variable Speed：Without Variable Speed
• Usage：for Sharpening Button Bits
• Weight：5kgs
• Transport Package：Wooden Box
• Specification：900X630X1500mm
• Trademark：Bestlink
• Origin：Xiamen, China
• HS Code：84609090
• Production Capacity：1000sets,Month

Working air pressure5-7 bar (100   psi)Air consumption1.2-1.8 m3   / min (40-65ft3/min)Max. Water pressure4 bar (60 psi)Water consumption2-4 L/min *Rated power (motor)1.5 KWCoolant/flushing mediumWaterAir connection, air hose19 mmWater connection, water hose6mmDimensions: H*W*D900x630x1500mmWeight200kgElectric power data1phase 220V,50   Hz or 3 phases, 380V,50 Hz**
* With cooling tank unit:0.2-0.3L/min.
** Customized is available

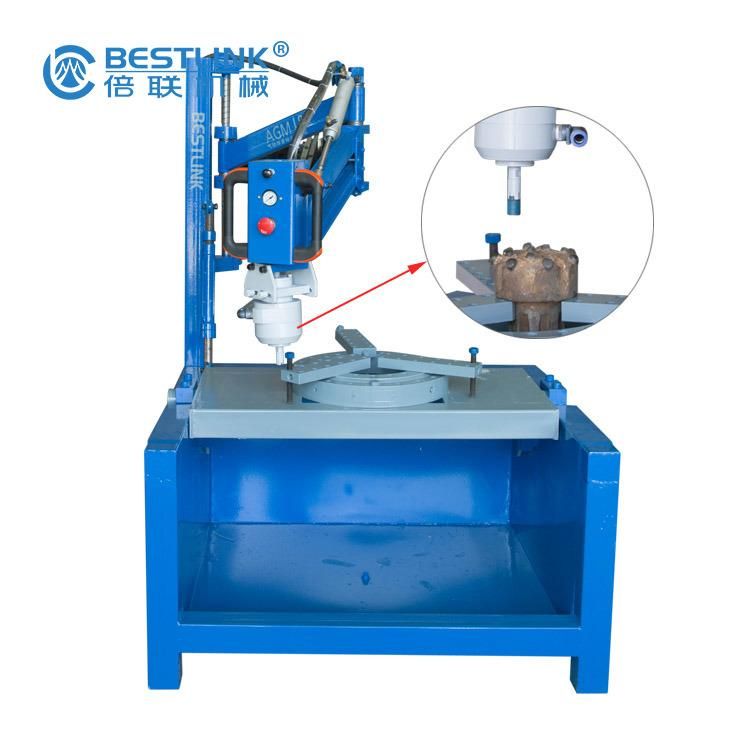

Pneumatic robot arm button bits grinder AGM18Rotation speed20000 rpmMotor power1.5 KWWorking air pressure5-7 bar (100   psi)Air consumption2.2 m3   / min (80ft3/min)Max. water pressure4 bar (60 psi)Air hose diameter19 mm     Water hose diameter6 mmWeight excl. packaging330.0 Kg Weight incl. packaging350.0 Kg Transport dimensions1600*700*1500mmSound level92 dB(A)



BESTLINK---Manufacturer of Button Bit Grinding System in China

(1) Grinder (Button Bit Grinding Machine)

The EGM20 Button Bit Grinder is a high powered tool for worn button bit sharpening. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.

EGN20 semi-automatic grinding machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.

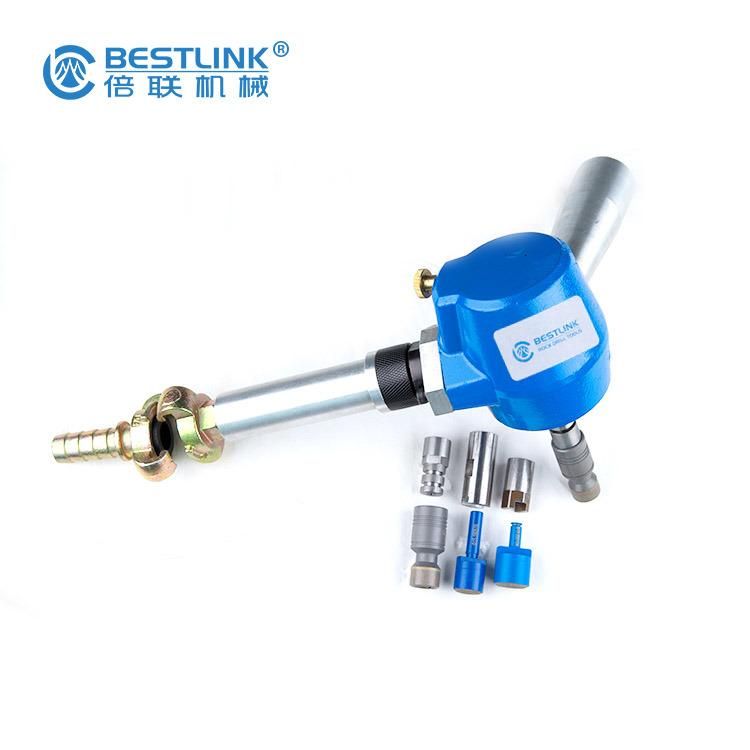

There are more models like BTON200, BTON500, AGM18, etc...are pneumatic models, called air grinder.
Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.

A full spares back-up service is also available.


(2) Grinding Pin, Grinding Cup and Grinding Wheel

BESTLINK supplies you 4 kinds of grinding cup for your various needs.

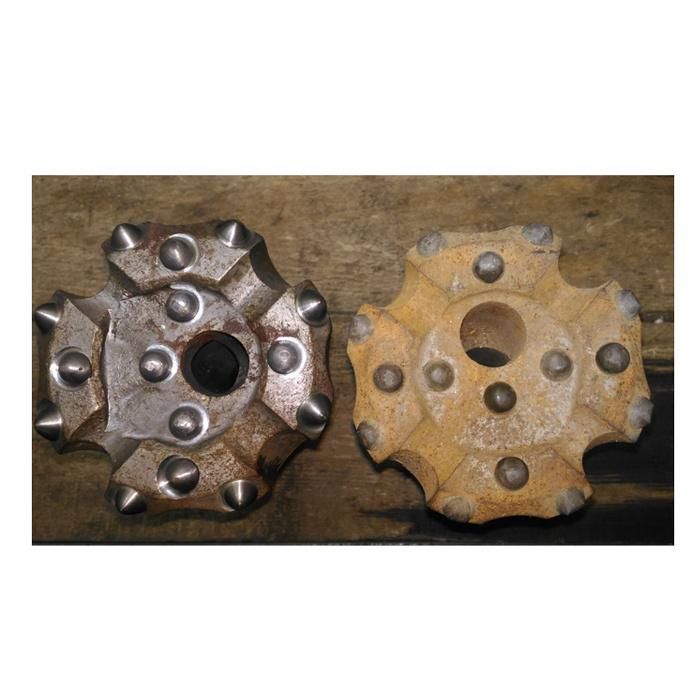

The Diamond grinding cup is a perfect tool for grinding your broken button bits, to prolong its lifespan.

We have different model: 8mm shank model, 9mm shank model, internal hex drive model and 55-drive model. Our grinding cup can be used for grinding 6mm-25mm button size. Other sizes are available on request.

Benefits for using BESTLINK GRINDING SYSTEM:
1). Low weight-----makes it's easy operation.
2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.
3). Quick chuck-----easy to changing grinding cups without special tools.
4). Cooling system-----a recycling cooling system makes a safe and sustaining working.
