SGS Certificate Garnet 30/60 for Grinding or Sandblasting

Jinan Junda Industrial Technology Co., Ltd.
  • Natural Abrasive Type：Garnet
  • Artificial Abrasive Type：Garnet Sand
  • Application：Sandblasting
  • Function：Surface Finish
  • Source：Natural Abrasives
  • Particle Size：Abrasive

Base Info

  • Model NO.：30,60
  • Hardness：8 Mohs
  • Product Name：Garnet 30,60
  • Specific Weight：4.1g,cm3
  • Color：Red
  • Chloride Content：0.01%
  • Average Bulk：2.4G,Cm3
  • Certificate：SGS, ISO
  • Radiio Activity：Not Detectable Above Background
  • Crystal System：Cubic
  • Pathological Effects：None
  • Frcture：Sub-Conchoidal
  • Free Silica Content：None
  • Susceptibility to Acid：None
  • Metal Content：Traces
  • Garnet(Almandite)：97-98%
  • Quartz：1,2%
  • Transport Package：25kg,PP Bag, 40 Bags in One Ton Bag
  • Specification：30,60
  • Trademark：Honest Horse
  • Origin：China
  • HS Code：251320
  • Production Capacity：3000tons,Month

Description

Crushing→washing→magnetic separation →drying →screeningMINERALOGICAL COMPOSITIONGarnet (Almandite)95% at least Ilmenite1-2% Quartz<0.5% Others0.5%CHEMICAL ANALYSISSilicon Dioxide (SiO2)39.03% Ferric Oxide (Fe2O3)24.62% Aluminium Oxide (Al2O3)15.14% Calcium Oxide(CaO)10%MAX Magnesium Oxide (MgO)6%MAX TIO22%MAX MnO1% MAXPHYSICAL CHARACTERISTICSChloride<25PPM Hardness (Mohs )8 PH6.93 Conductivity105 μS/cm Bulk density2.34 g/cm3; 145 lb/ft3 Specific gravity4.10 g/cm3 Grain shapeSharp angular




4.Garnet Sand Normal Package

1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.
4. One ton loose in one ton bulk bag.
5. All pakages are lined with waterproof materials.
6. Gnerally, one 20GP container can load 25 tons, 27 tons at most.
We can also pakage according to costomers' requirements.
SGS Certificate Garnet 30/60 for Grinding or Sandblasting

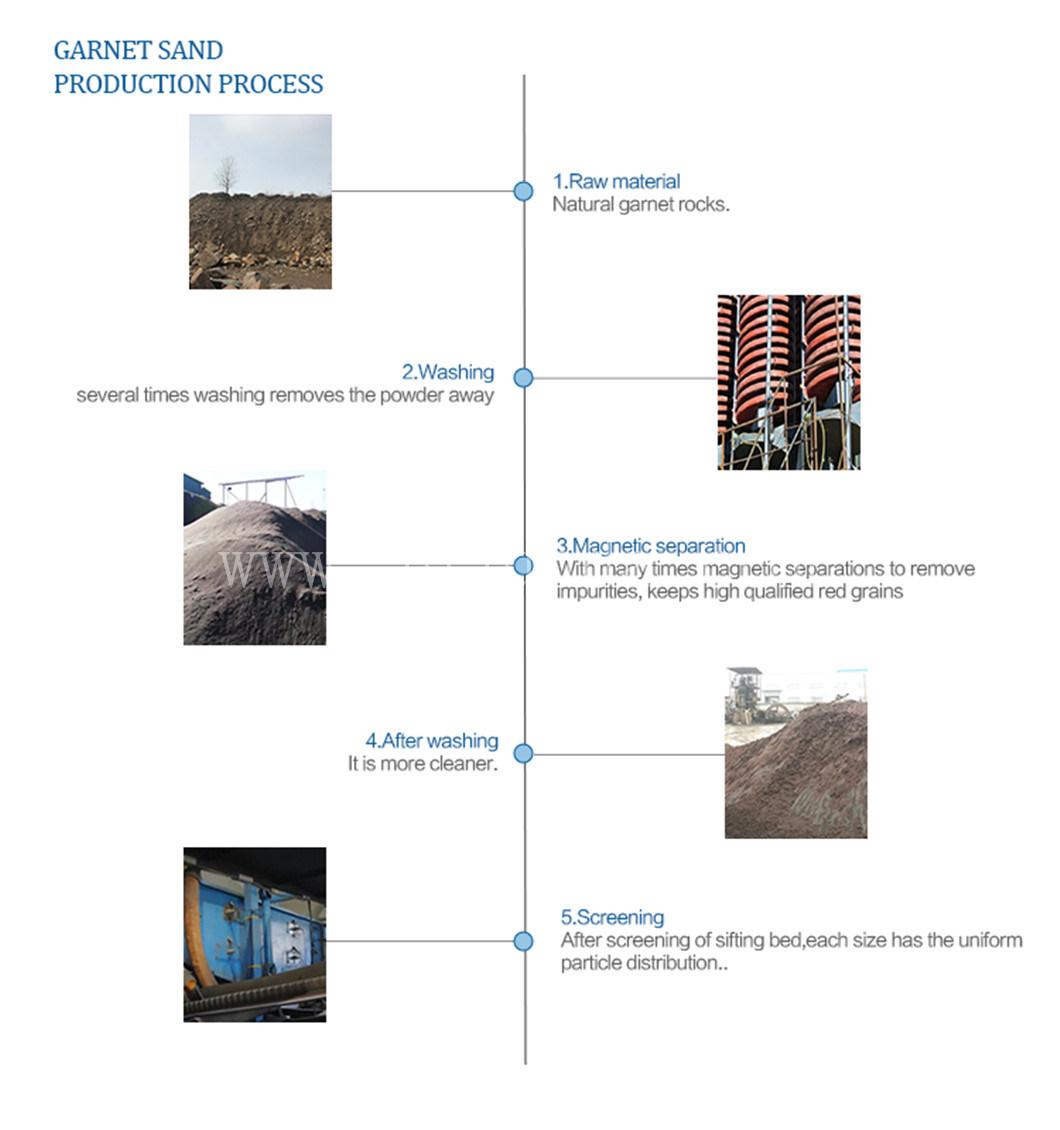

5.Garnet Sand Production Technology

Our garnet sand goes through crushing,washing,magnetic separation,drying and screening production procedures.
SGS Certificate Garnet 30/60 for Grinding or Sandblasting

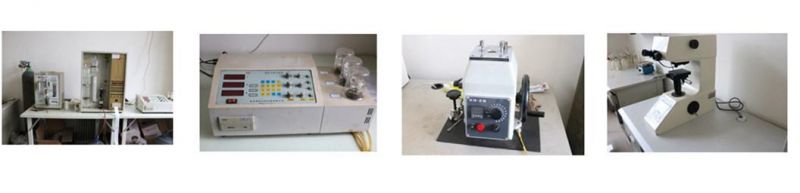

6.Garnet Sand Detection and Certificate:
SGS Certificate Garnet 30/60 for Grinding or Sandblasting



7. Company Profile

Jinan Junda Industrial Technology Co.,Ltd. is located in Jinan,Shandong Province,China,which is the daughter company of Honest Horse (CHINA) Holding Limited. We are the manufacturerof abrasive mediafor more than 15 years experience in north China.

Abrasives media we manufacture:

Bearing steel grit

Cast steel grit

Steel shot

Steel cut wire shot

Garnet sand

The products reach the ISO9001 standard,SAE J444 standard and always enjoy a good reputation among our customers.
