• Model NO.：chemshun alumina ceramic bricks
• Customized：Customized
• Item：Alumina Lining Brick
• Materials：Alumina Ceramic
• Alumina Content：92%
• Application：Ball Mill
• Moh′s Hardness：9 Grade
• Self Abrasion Loss：<0.02%
• Water Absorption：<0.01%
• Density：3.1-3.3G,Cm3
• Ball Mill Bricks Design：Acceptable for Designing Bricks
• Delivery Time：15 Days
• Transport Package：Cartons
• Specification：according to your demand
• Trademark：pingxiang chemshun ceramics
• Origin：P. R. CHINA
• HS Code：69091200
• Production Capacity：3500 Ton,Year

Basic Info.

Model NO. chemshun alumina ceramic bricks Customized Customized Item Alumina Lining Brick Materials Alumina Ceramic Alumina Content 92% Application Ball Mill Moh′s Hardness 9 Grade Self Abrasion Loss <0.02% Water Absorption <0.01% Density 3.1-3.3G/Cm3 Ball Mill Bricks Design Acceptable for Designing Bricks Delivery Time 15 Days Transport Package Cartons Specification according to your demand Trademark pingxiang chemshun ceramics Origin P. R. CHINA HS Code 69091200 Production Capacity 3500 Ton/Year

Product Description

92% Alumina Ceramic Bricks for Pebble Mill & Ball Mill

1: Alumina bricks introduction :

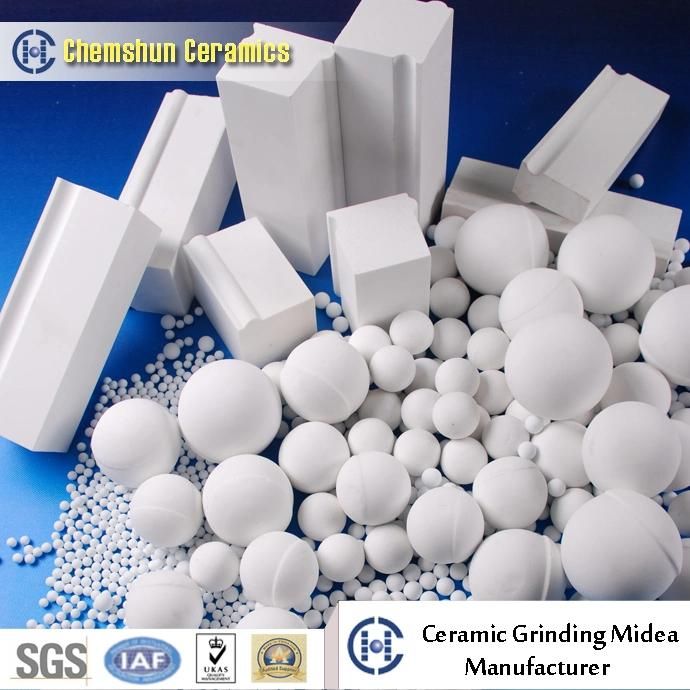

The alumina lining brick have these shape Rectangular brick, half rectangular brick, ladder brick, thin brick and half ladder brick, with the advantage of high density, high hardness, low abrasion loss, anticorrosion and the good shape, it used for ball mill as the wear-resistance lining, widely used in ceramic, cement, paint, chemical, pharmaceutical, coating etc. The lining brick can effectively improve the grinding efficiency, reduce the grinding cost and product pollution.


2: Character:

1). High density
2). High hardness
3). High wear resistance
4). High grinding efficiency

3: Application :

1): ball mill , ball grinding machine , pot mill , librating mill , pebble mill , Attrition Mill,rod mill ,
grinding mill , grinding machine , ball grinding mill

2): breaking plants,  ceramisc , metallurgy , glass , porcelain enamel , pigment , chemicals ,
Mining, Cement, Power plant industries ,

4:  Main classification: Alumina Grinding Media, Alumina Lining Brick, ZrO2 Grinding Media

Item	Name	Length (mm)	Height (Thickness) (mm)	Width a (mm)	Width i (mm)
A	Rectangular brick	150	40~77	50	50
B	Half Rectangular brick	75	40~77	50	50
C	Ladder brick	150	40~77	50	45
D	Thin brick	150	40~77	25	22.5
E	Half ladder brick	75	40~77	50	45

More Abrasion ceramics products : abrasion ceramics , Alumina ceramics , wear
resistant ceramics , alumina pipe liner , ceramic tube , alumina cylinder pipe , wear resistant alumina
plate , abrasion ceramic tile , abrasive alumina sheet , friction plain tile , abrasion weldable tile ,
rubber backed ceramic liner , ceramic composite linings , alumina mosaic sheet , ceramic taper
tile for pipe sleeve ,  ceramic ladder tile for pipe steel , engineering  ceramics equipment , pre-fabricated pipe sleeve ,wear resistant bending pipe , abrasion materials
