• Model NO.：ZFJ-300
• Working Style：High-speed universal
• Disc Diameter：200 300 400
• Variable Speed：Without Variable Speed
• Product Name：Herbal Grinder
• Ground Mesh：80-300mesh
• Usage：Industrial
• Power：7-14kw
• Blade：Tungsten Steel
• Transport Package：Wooden Crate
• Specification：GMP ISO CE
• Trademark：XD
• Origin：Jiangyin, Jiangsu, China(Mainland)
• HS Code：84741000
• Production Capacity：200 PCS,Year

Basic Info.

Model NO. ZFJ-300 Working Style High-speed universal Disc Diameter 200 300 400 Variable Speed Without Variable Speed Product Name Herbal Grinder Ground Mesh 80-300mesh Usage Industrial Power 7-14kw Blade Tungsten Steel Transport Package Wooden Crate Specification GMP ISO CE Trademark XD Origin Jiangyin, Jiangsu, China(Mainland) HS Code 84741000 Production Capacity 200 PCS/Year

Product Description

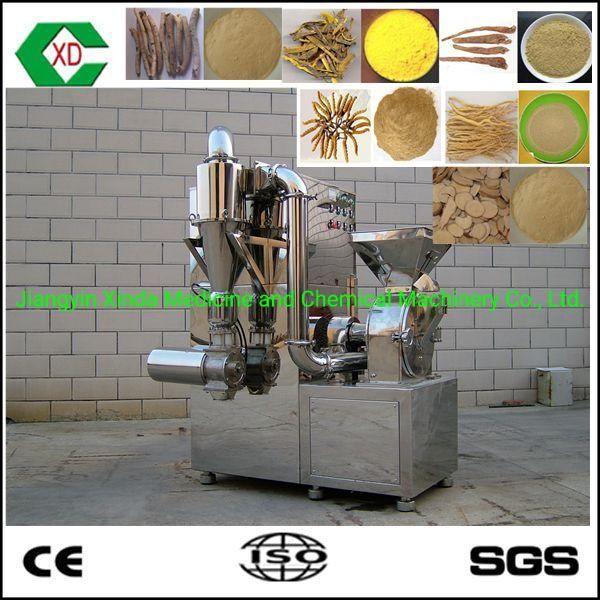

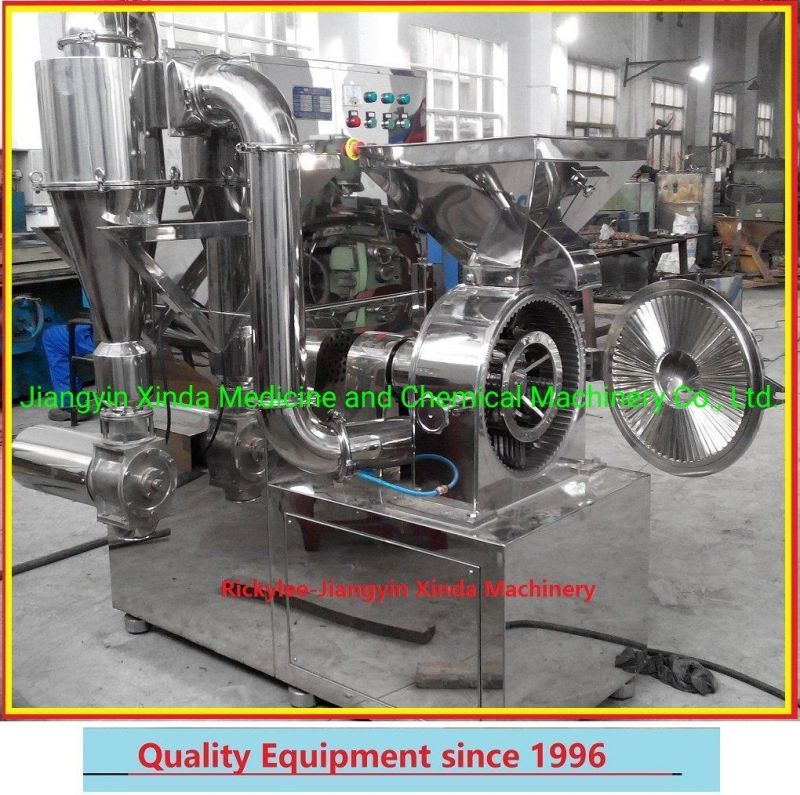

Food Spice Plant Herbal Powder Crusher Pulverizer Grinding Machine
Herbal Grinder 80-300mesh Ground Size:

1. Main Application

(1) The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen.

(2) It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese Herbal Medicines with fibers and those with oils.

2. Working Method

(1) The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc.

(2) Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by highspeed running blades.

(3) The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate.

(4) The highspeed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber.

(5)The dust from grinding chamber is filtered recycled via the cloth bag or filter of the dust absorption box.
(6) The whole machine, designed according to GMP standard, is made of stainless steel for easy cleaning.

(7) With the features of easy structure, convenient operation, low noise and high capacity, avoiding dust flying in production.



Model	200	300	400
Capacity	10-150	20-300	50-500
Size of input granules(mm)	≤ 10	≤ 12	≤ 15
Fineness of products(Mesh)	20-250	20-250	20-250
Grinding power	5.5	7.5	11
Dust absorption power	1.5	2.2	3
Weight	320	550	750
Overall size(L× W× H)	1350× 920× 1800	1400× 1050× 2050	1600× 1150× 2100
