• Model NO.：20-40mesh
• Hardness：7.8-8 Mohs
• Product Name：Garnet 20,40 Mesh
• Average Bulk：2.4G,Cm3
• Specific Weight：4.1g,cm3
• Crystal System：Cubic
• Radiio Activity：Not Detectable Above Background
• Color：Red
• Free Silica Content：None
• Susceptibility to Acid：None
• Al2O3：16-21%
• Fe2o3：27-32%
• P2o5：0.05%
• pH of Aqueous Medium：6.93
• Zro2：Traces
• Mno：0.5%
• Chloride Content：Less Than 25 Ppm
• Transport Package：25kg,PP Bag, 40 Bags in One Ton Bag
• Specification：20-40
• Trademark：Honest Horse
• Origin：China
• HS Code：251320
• Production Capacity：100tons,Day

Chemical Analysis

Silicon Dioxide (SiO2)

36.42%

Ferric Oxide (Fe2O3)

34.23%

Alumina Oxide (Al2O3)

20.72%

Calcium Oxide

1.98%

Magnesium Oxide (Mg)

3.29%

Electrical Conductivity
(Soluble Salts)

105 μS/cm

Chloride

0.0028%

4.Garnet Sand Normal Package

1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.
4. One ton loose in one ton bulk bag.
5. All pakages are lined with waterproof materials.
6. Gnerally, one 20GP container can load 25 tons, 27 tons at most.

We can also pakage according to costomers' requirements.

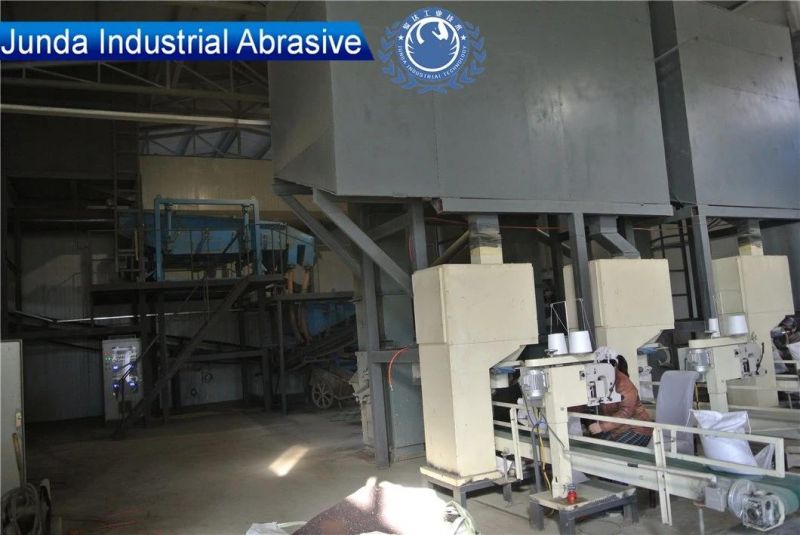

5.Garnet Sand Production Technology

1.HONEST HORSE garnet sand is rock garnet sand mined from 200 meters underground.
2.It goes through crushing, magnetic separation, washing, drying and screening production procedures.
3.Being crushed from natural garnet rocks, our garnet sand has high hardness and sharper edges.
4.With many times magnetic separations to remove impurities,it keeps high qualified red grains.
5.several times washing removes the powder away. After screening of sifting bed,each size has the uniform particle distribution.

6.Garnet Sand Detection and Certificate:

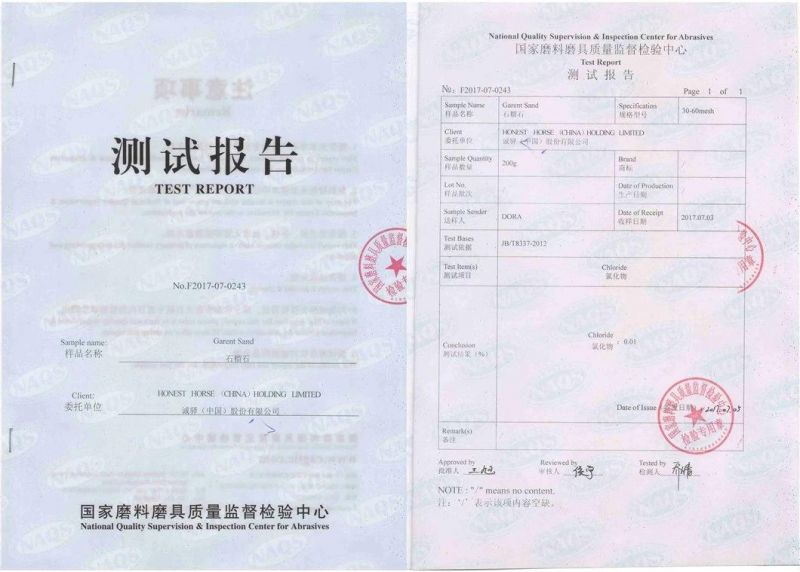

Hardness Test Report






7. Company Profile

Jinan Junda Industrial Technology Co.,Ltd. is located in Jinan,Shandong Province,China,which is the daughter company of Honest Horse (CHINA) Holding Limited.We are the manufacturerof abrasive mediafor more than 15 years experience in north China.

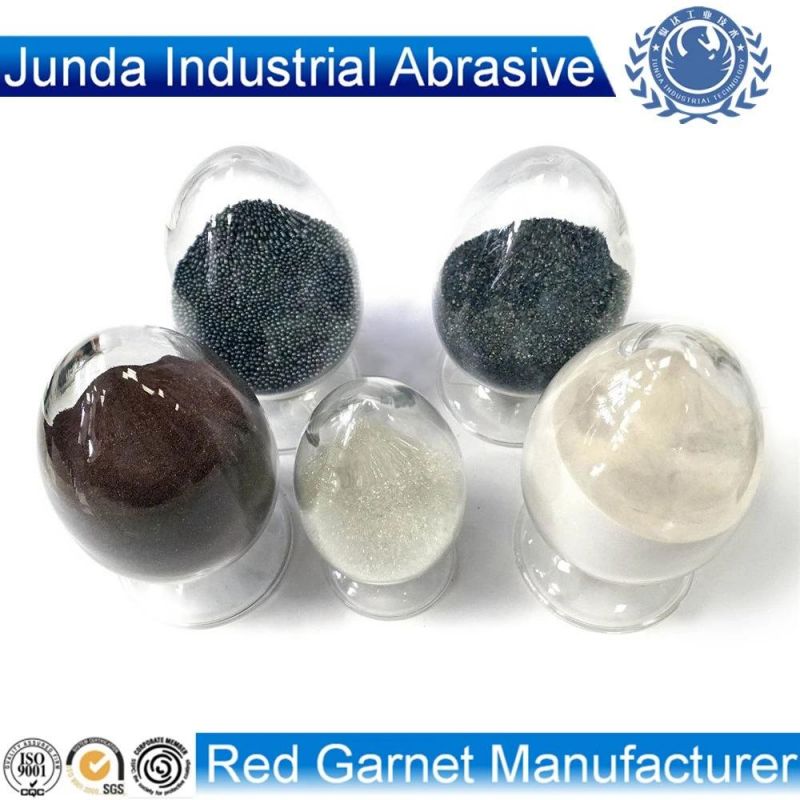

Abrasives media we manufacture:

Bearing steel grit

Cast steel grit

Steel shot

Glass beads

Garnet sand




The products reach the ISO9001 standard,SAE J444 standard and always enjoy a good reputation among our customers.

Our old and new customersdistribute over100 countries around the world,in Asia, Middle East area,Europe, Africa,North America,South America,and Australia,etc.

We welcome customers all over the world do cooperation with us !






8.Services:

(1) Sample service

If you feel interested in our products sincerely, we can supply 500g sample for free.

(2) Customized Service

 Product---We can produce various size abraisves according to the customers' requirements.

 Package---The products can be packaged as customers' requirements.

(3) After-sales Service

Our products passed ISO9001 standard, and we control the testing procedure strictly.

From the raw materials adopting to the transport to port,our staffs do their works seriously all the time.

If there are quantity problems,package problems,delivery problems,or any other problems,our company will seriously investigate the event and give customers a satisfying reply.
