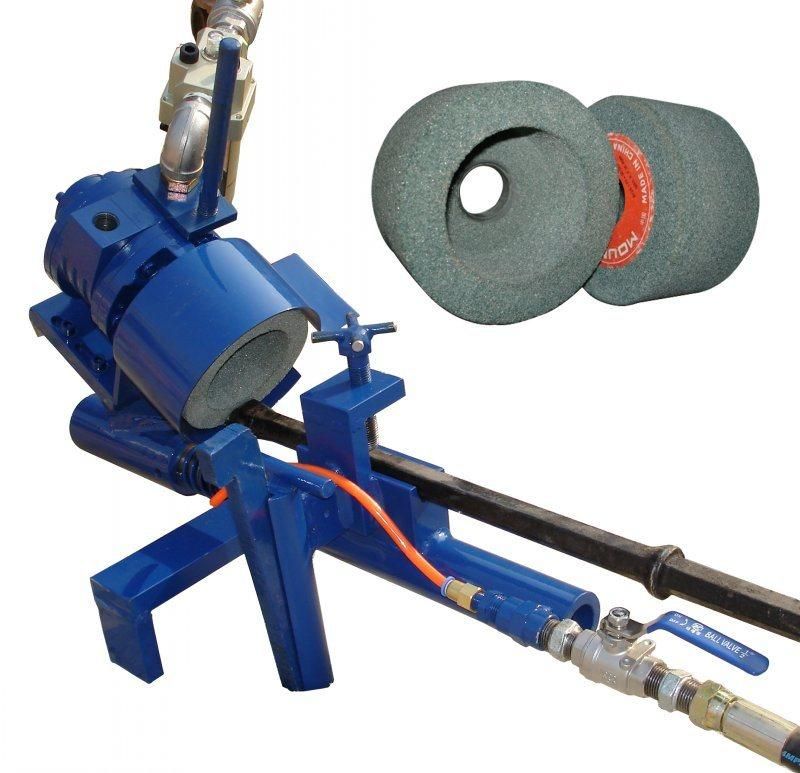

Tapered Chisel Integral Steel Grinder for Carbide Grinding

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Disc Grinder
  • Power Source：Pneumatic
  • Object：Drilling Bit
  • Application：Construction
  • Disc(Wheel) Type：Grinding Disc
  • Material：Steel

Base Info

  • Model NO.：PD125
  • Disc Diameter：125mm
  • Variable Speed：Without Variable Speed
  • Rotation Speed：Rotation Speed
  • Sharpening Radius：125mm
  • Grinder Hole(Diameter)：32mm
  • Motor Power：HP2
  • Transport Package：Wood Box
  • Specification：SGS, CE, ISO9001
  • Trademark：Prodrill
  • Origin：China
  • HS Code：84671900
  • Production Capacity：200 Sets, Month

Description


Rotation speed
3500 RPM max
Motor power
HP2
Sharpening angle
110°
Sharpening radius
125mm
Operating pressure insufficient
6.0bar
Air consumption at 6 bar
1.5mc/min
Abrasive grinder diameter
152mm
Grinder height
70mm
Grinder thickness
22mm
Grinder hole(diameter)
32mm
Bench version weight
36kg
Portable version weight
37kg
