Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives

Taizhou Sumeng Grinding Wheel Co., Ltd.
  • Material：Diamond
  • Abrasive：Superabrasive
  • Shapes：Edge Shape
  • Types：Surface Grinding Wheel
  • Grain Size：280#
  • Cylindricity：<1

Base Info

  • Model NO.：1A1, 1B1, 1A21, 1V1,3A1, 3V1, 3B1, 4A9, 4A1P, 11V9
  • Circular Degree：<1
  • Technics：Sinter
  • Working Style：Cutting
  • Diamond & CBN Wheels for Milling Cutter：Diamond & CBN Wheels for Saw Blades
  • Diamond & CBN Wheels for Round Tools：Diamond & CBN Wheels for Knife Grinding
  • Regrinding and Reshaping Rolls：Surface and Creepfeed Grinding
  • Flute Grinding and Thread Grinding：Surface Grinding and Tool & Cutter Grinding
  • Internal Grinding (ID Grinding)：Cylindrical External Grinding (Od Grinding
  • Cylindrical Grinding Wheels：Center Less Grinding Wheels
  • Transport Package：Carton
  • Specification：EN 12413
  • Trademark：SAILI, BONDFLEX
  • Origin：Jiangsu China
  • HS Code：68042210
  • Production Capacity：25000 PCS,Day

Description

Basic Info.

Model NO. 1A1, 1B1, 1A21, 1V1,3A1, 3V1, 3B1, 4A9, 4A1P, 11V9 Circular Degree <1 Technics Sinter Working Style Cutting Diamond & CBN Wheels for Milling Cutter Diamond & CBN Wheels for Saw Blades Diamond & CBN Wheels for Round Tools Diamond & CBN Wheels for Knife Grinding Regrinding and Reshaping Rolls Surface and Creepfeed Grinding Flute Grinding and Thread Grinding Surface Grinding and Tool & Cutter Grinding Internal Grinding (ID Grinding) Cylindrical External Grinding (Od Grinding Cylindrical Grinding Wheels Center Less Grinding Wheels Transport Package Carton Specification EN 12413 Trademark SAILI, BONDFLEX Origin Jiangsu China HS Code 68042210 Production Capacity 25000 PCS/Day

Product Description

Diamond / CBN wheels for CNC Grinder
Resin bond, high quality diamond, special technology, used on 5-axis CNC grinders for the grinding of tungsten carbide or HSS alloy steel tools
Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives
Diamond / CBN Wheel for Profile Grinding
Profile diamond and CBN wheels for different materials such as hardened steels, tungsten carbide. Sharpness and accuracy, excellent form holding

Diamond / CBN Wheels with Ceramic Body
Resin diamond / cbn wheel with ceramic body, mainly for die industry, excellent heat resistance, deep feed and high stock removal
Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives
CBN Double Grinding Disc
CBN double-disc surface grinding wheel for bearing, gears, compressor parts, washer, oil pump parts, Automobile parts etc

Surface and Cylindrical Grinding
Diamond & CBN wheels for precision surface and cylindrical grinding with advanced grindability and long life

Diamond /CBN wheels for Die industry
PG grinding wheel, mainly die industry, Slotting and grooving of metal or nonmetal materials, optical curve grinding. JV Grinding and some other precision grinding
Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives
Diamond Wheels with Bakelite Body
Diamond wheel with Bakelite body with good elasticity, used in woodworking industry, free cutting and long life

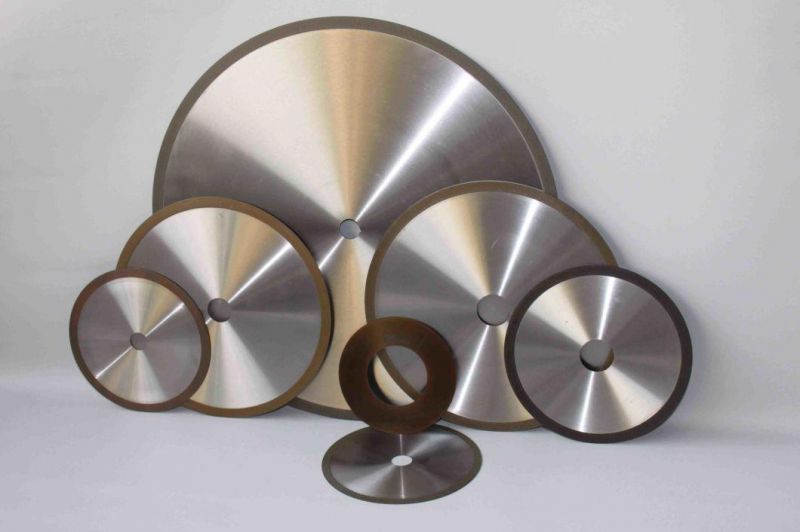

Diamond Cutting wheels
Diamond cutting wheel for tungsten carbide, alloys, quartz, ceramics, glasses, carbon fibre composites, fiberglass etc
Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives
CBN wheels for Paper industry
CBN wheels for the grinding of blades used on paper manufactring industry, HSS, hardened steel, alloy steel etc

Wheel for Wood working industry

Fluting Wheels
D1A1R 5 x 1/2 x 1-1/4 D 280 R 125 B 3/8

B1A1R 4 x 3/8 x 38mm CBN 220 R 100 B 1/4

D1FF1R 5 x 3/16 x 1-1/4 D 240 R 125 B 1/4

B1FF1R 6 x 3/16 x 2 CBN 180 R 100 B 1/4

D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°

B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°


D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

Gashing Wheels
FLUTE GRINDING DIAMOND & GASHING WHEELS

D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°

B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°

BALL NOSE FLUTE GRINDING & GASHING WHEELS

D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

Drill Pointing Wheels
BALL NOSE FLUTE GRINDING & GASHING WHEELS

D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

DRILL POINTING AND STEP TOOL WHEELS

D11V2 5 x 1-1/4 x 1-1/4 D 280 R 100 B 1/4 W=1/2

B11C9 5 x 3/4 x 1-1/4 CBN 220 R 100 B 1/8 W=1/2

O. D. Clearance

D11V2 4 x 1-1/4 x 1-1/4 D 320 R 100 B 1/4 W=1/4 5°

B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 10°

D11V5 4 x 1-1/2 x 1-1/4 D 320 R 100 B 1/4 W=1/4 30°

B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 30°

CUTTER DIAMOND GRINDING WHEELS

D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8
Flute Grinding Diamond & Gashing Wheels, CBN Superabrasives
B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8

D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8 - REINFORCED CORE

B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8 - REINFORCED CORE


D12V9 4 x 7/8 x 20mm D 320 R 125 B 1/16 U=3/8 45°

B12V9 6 x 3/4 x 2 CBN 240 R 100 B 1/8 U=3/8 30°
