• Model NO.：DS-KT400G
• Application：for Granite and Marble
• Technology：Sintered
• Size：40*3.4*12mm or Customized
• Usage：Stone Cutting
• Manufacturing Arts：Sinter
• Kind：Stone Sawing Machine
• Saw Blade External Diameter：350mm
• Transport Package：Carton Box ,Crate
• Specification：40*3.4*12mm
• Trademark：KEENTOOL
• Origin：Quanzhou, China
• HS Code：82079010
• Production Capacity：5000 Sets,Month

Description:

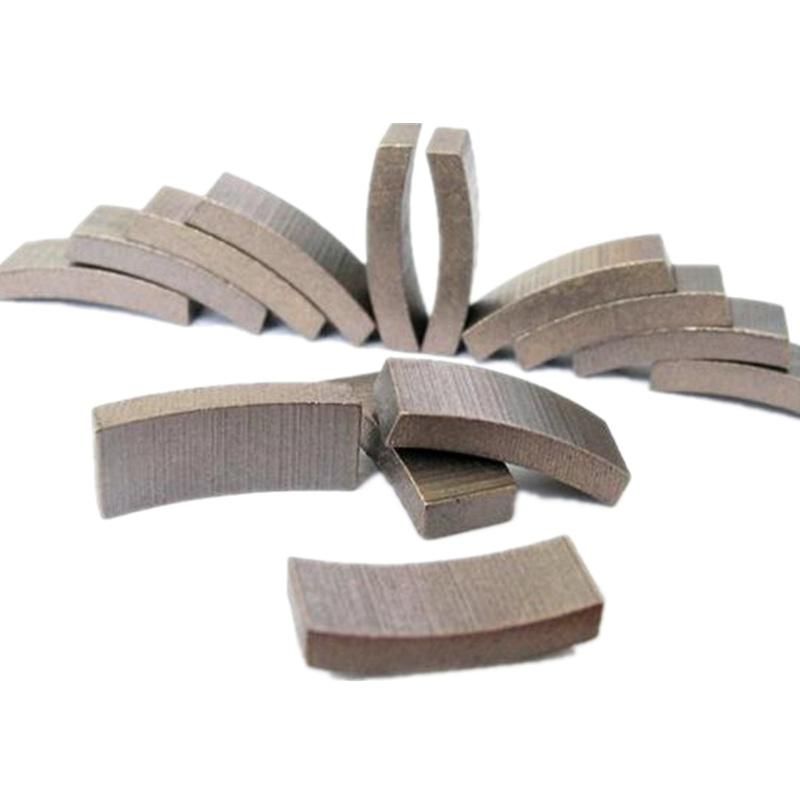

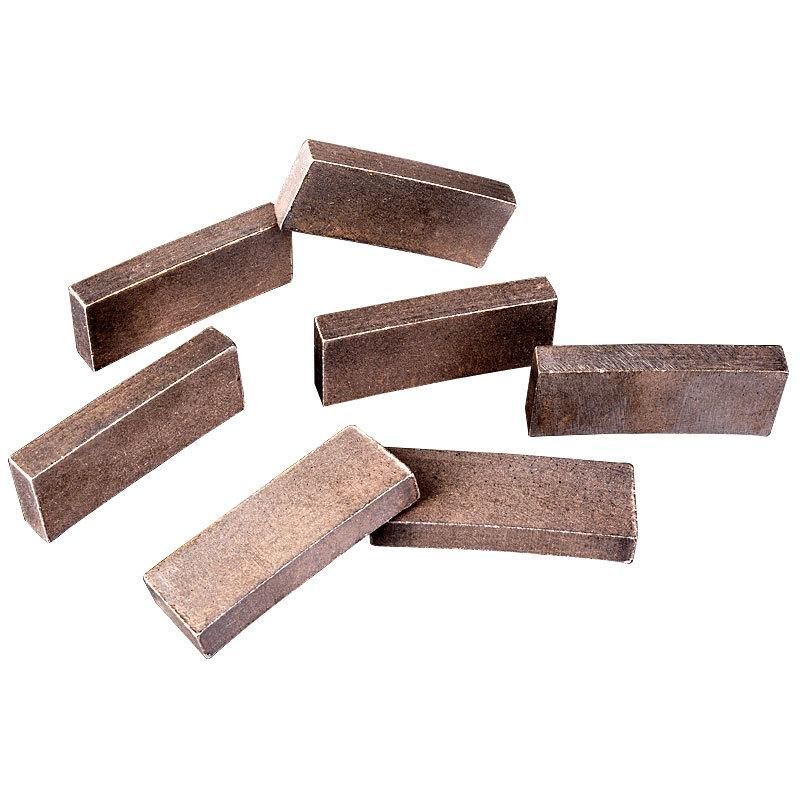

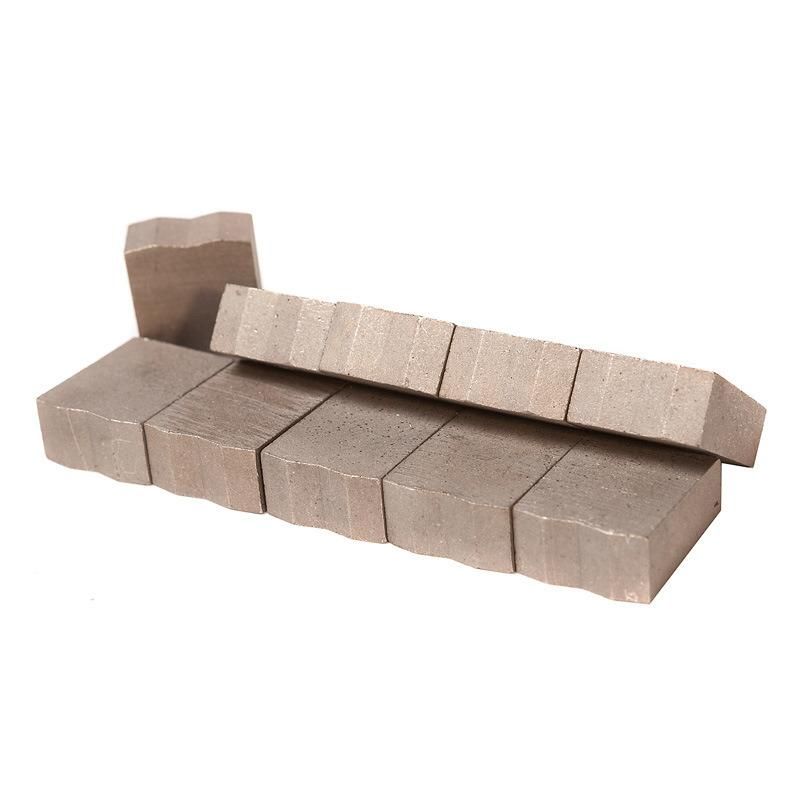

From the construction of diamond segments, we have two types for choice. One is Chinese traditional Multi-layers Type, from the following photos No. 1 & No. 2 on the cutting side, you will find there are 4 lines, usually after cutting there will be four lines (Groove) on the cutting side. This type segments can reduce the diamond & powder cost, but the diamond and Cobalt Powder quality must be very good, otherwise the segments will not cut if the granite is very hard, or even the segments will be broken. Most Chinese manufacture they are producing this type segments and use cheap powders, though the price seems very cheap however the working efficiency is very low. We also produce this type segments to some special market like India or Russia, Ukraine, but we use over 50% Cobalt, also the diamond quality is very good.

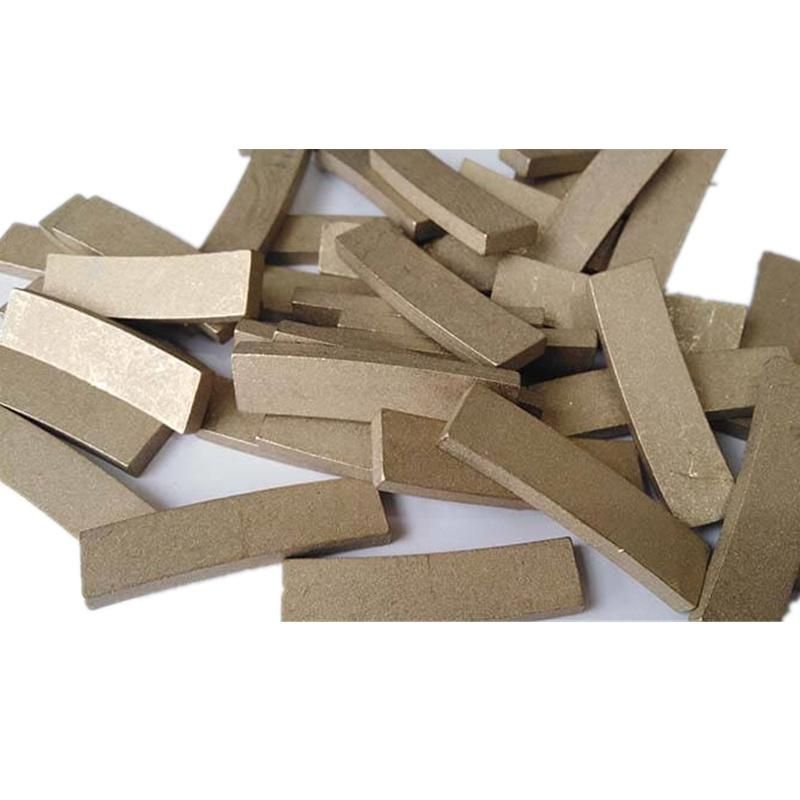

Another is Sandwich Type, the following Photo No. 3, from the cutting surface you can not find the lines. The middle of this type segment the diamond powder quantity is a little less than the two sides, after cutting there will be a little Arc groove on the segments like "( ". This the main traditional construction in Europe and popular in the market. We have many years experiences in this field, the cutting efficiency & life is accepted by most countries in Europe. In China there are few companies have this technic.

When place of diamond segments please inform:

1) Size of segments Segment Size (L x W x H, if possible please inform Steel Core Thickness)
2) Diameter of diamond blade (Inch or mm)
3) Segment No. (how many PCS segment per blade)
4) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
5) Quantity NO. (How many PCS, or how many sets segments)
6) Machine Power/RPM (If possible)
7) Feed Speed (M/Minute)
8) Expected Cutting Depth (how many mm per time, forward or backward)
9) Coolant System (Water or Oil, how many liters/Minute, etc. )
10 Expected Shipping Date
11) Special Requirements (If any)If you are interested and would like to know more about us, welcome to visit us at http://keentool.en.made-in-china.com
