• Model NO.：CL-350B
• Working Style：Shaking
• Variable Speed：With Variable Speed
• Applications：Deburring, Polishing, Finishing, Radiusing, etc.
• Working Voltage：380V, 3 Phase or as Request
• Motor Power：5.5kw
• Speed：1450r,Min
• Amplitude：0.8-6mm
• Rubber Lining：6-20mm
• Machine Weight：520kg
• Machine Size：1500*1350*1050mm
• Delivery Time：Within One Week
• Warranty：1 Year

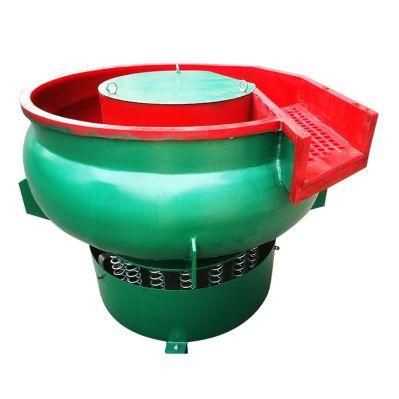

• Item：Vibratory Polishing Finishing Machine
• Transport Package：Wood Case
• Specification：350L
• Trademark：kafan
• Origin：Hangzhou, China
• HS Code：8460901000

ModelCL-350BCapacity350LMotor Power5.5kwSpeed1450r/minAmplitude0.8-6mmRubber Lining6-20mmMachine Weight520kgMachine Size1500*1350*1050mm

We supply a wide range of models of Vibratort FInishing Machines


Model	Capacity	Motor Power	Speed	Amplitude	Lining Thickness	Weight	Size L*W*H(mm)
CL-40	40	0.55	1450	0.8-3	6-12	65	600*500*600
CL-60	60	0.75-1.1	1450	0.8-3	6-12	100	700*640*700
CL-80	80	1.1	1450	0.8-3	6-12	110	840*640*740
CL-95	95	1.1	1450	0.8-3	6-12	125	860*800*750
CL-135	135	2.2-3.0	1450	0.8-4	6-15	350	1150*1060*900
CL-150	150	2.2-3.0	1450	0.8-4	6-15	380	1150*1050*900
CL-350	350	5.5	1450	0.8-6	6-20	800	1450*1350*1050
CL-450	450	5.5	1450	0.8-6	6-20	1000	1550*1430*1050
CL-650	650	7.5	1450	0.8-8	6-20	1500	1900*1850*1300

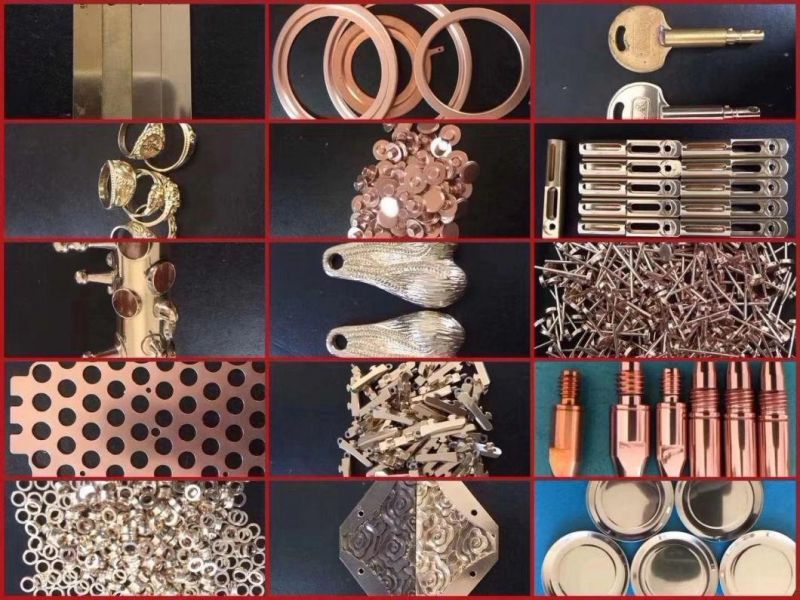

Vibratory Finishing Machine Applications

Deburring

Widely applied in plastic, aluminum or zinc alloy castings or other precise instruments, the thickness and location of the burrs can be precisely controlled

Chamfering

Removing sharp edges to facilitate assembling and avoid injuring operators, especially suitable for all kinds of bearings. overcomes the disadvantages of difficulty, low controllability, inconsistent results caused by manual process.

Polishing

Polishing metal to obtain high brightness surface, or restore the natural color of metal, the vibratory finishing bowl is specially suiatble for brass, copper, aluminum parts

Cleaning

For removing impurities, grease, thermal oxide, contaminants, rust and so on.

Smoothing

Light finishing for various accessories such as: auto parts, turbine blade, surgical tools, fitness equipment, etc.
