• Model NO.：Diamond Grinding Cups
• Working Style：Airflow
• Disc Diameter：7-25mm
• Variable Speed：Without Variable Speed
• Size：7-25mm Diameter
• Color：Blue and Grey
• Weight：0.01-0.2kg
• Rotation Speed：20000 Rpm
• Certificate：SGS ,CE
• Operation：Semi Automatic Working
• Export Markets：Global
• Factory Location：Xiamen, Near to Quanzhou
• Aplication：Minging and Quarrying Drill Bits Button Bits Grind
• Model：Bton500,Bton200 Grinder and Pins
• Transport Package：Carton Packing
• Specification：CE and SGS
• Trademark：Bestlink
• Origin：Xiamen China
• HS Code：84609090
• Production Capacity：1000set,Years

Basic Info.

Model NO. Diamond Grinding Cups Working Style Airflow Disc Diameter 7-25mm Variable Speed Without Variable Speed Size 7-25mm Diameter Color Blue and Grey Weight 0.01-0.2kg Rotation Speed 20000 Rpm Certificate SGS ,CE Operation Semi Automatic Working Export Markets Global Factory Location Xiamen, Near to Quanzhou Aplication Minging and Quarrying Drill Bits Button Bits Grind Model Bton500/Bton200 Grinder and Pins Transport Package Carton Packing Specification CE and SGS Trademark Bestlink Origin Xiamen China HS Code 84609090 Production Capacity 1000set/Years

Product Description

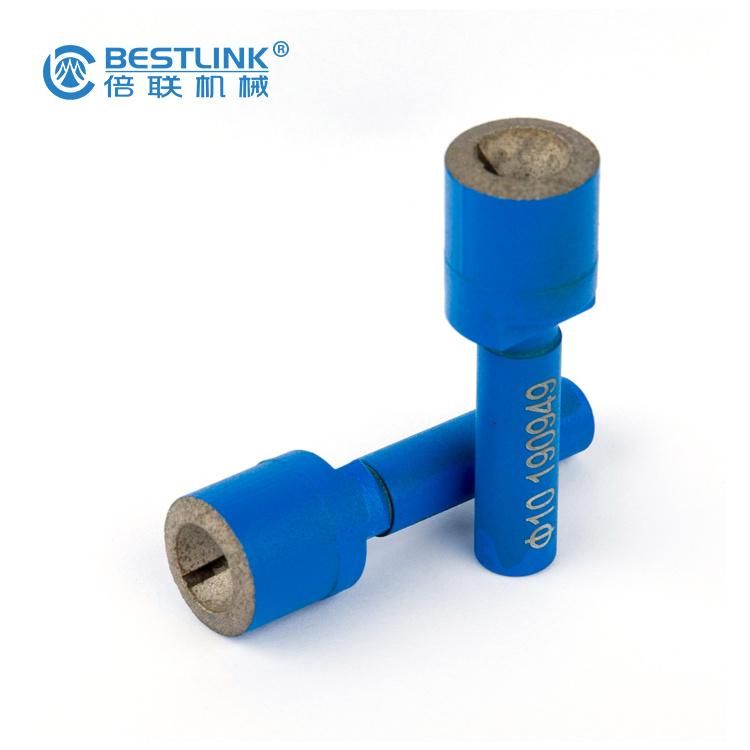

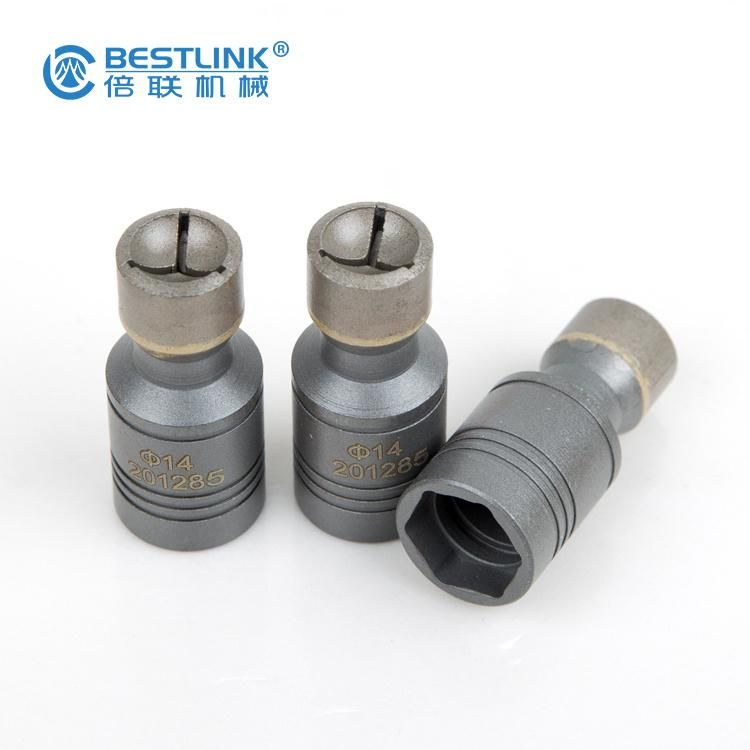

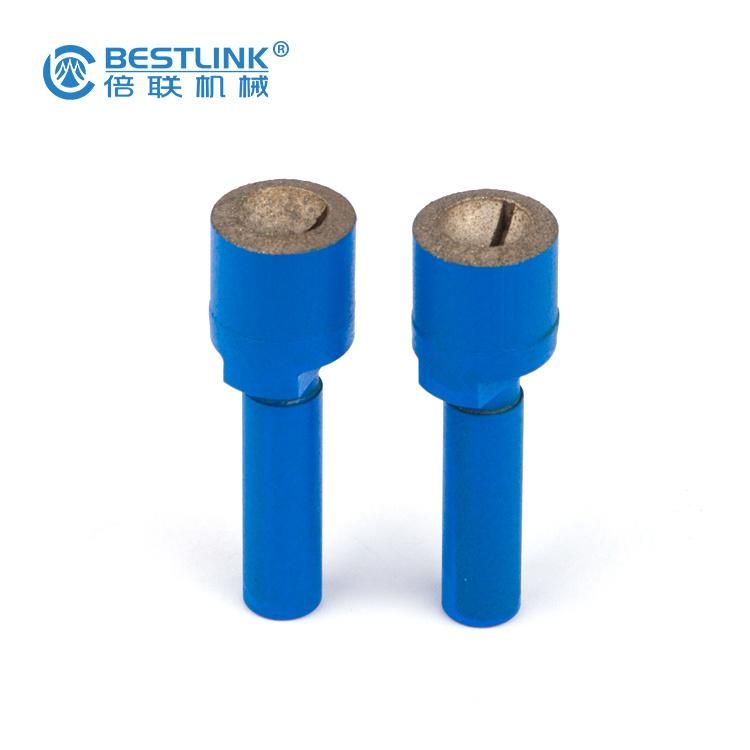

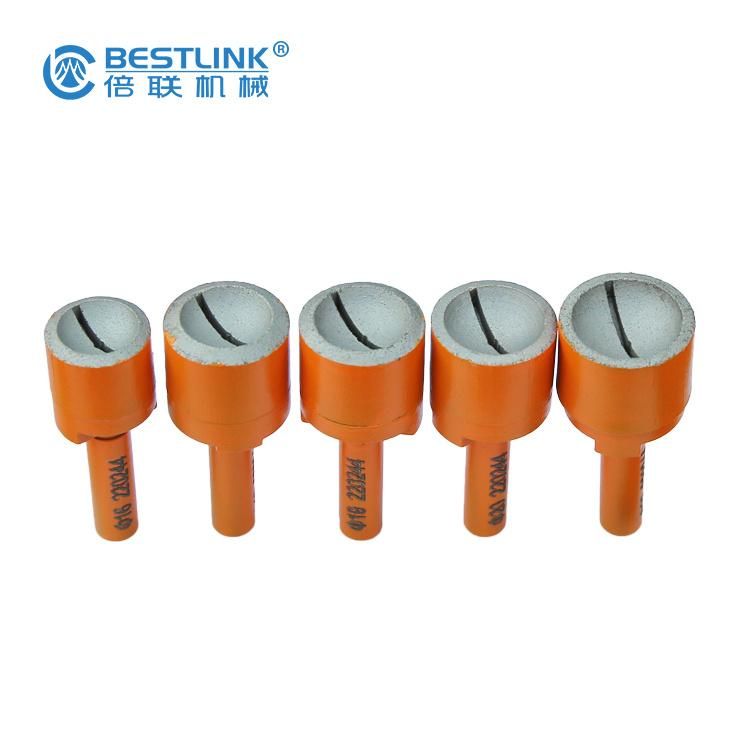

Cop54/Cop64/Cop84 Button Bits Diamond Grinding Cups

Xiamen Bestlink factory design and produce the BTON500 and BTON200 pneunatic buttong bits grinding machine.

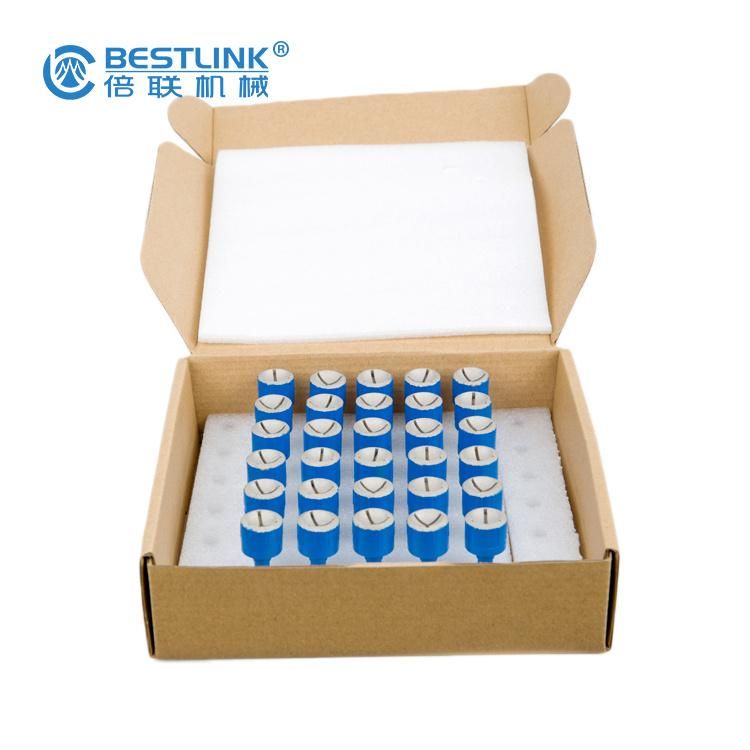

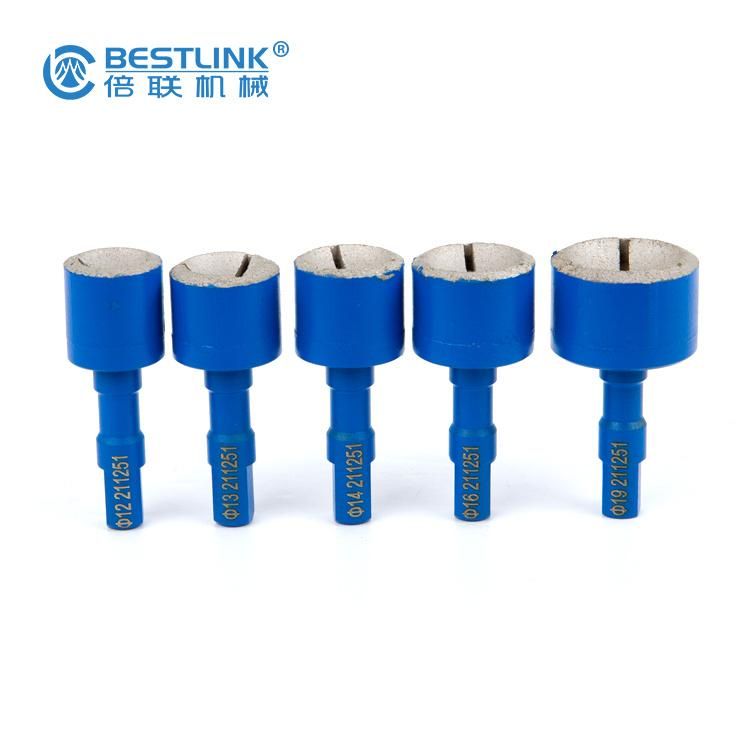

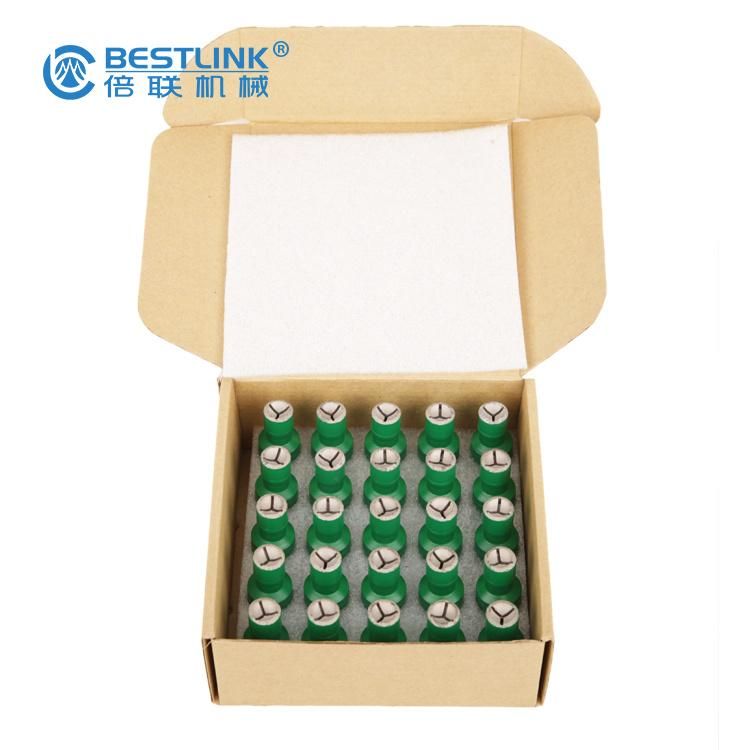

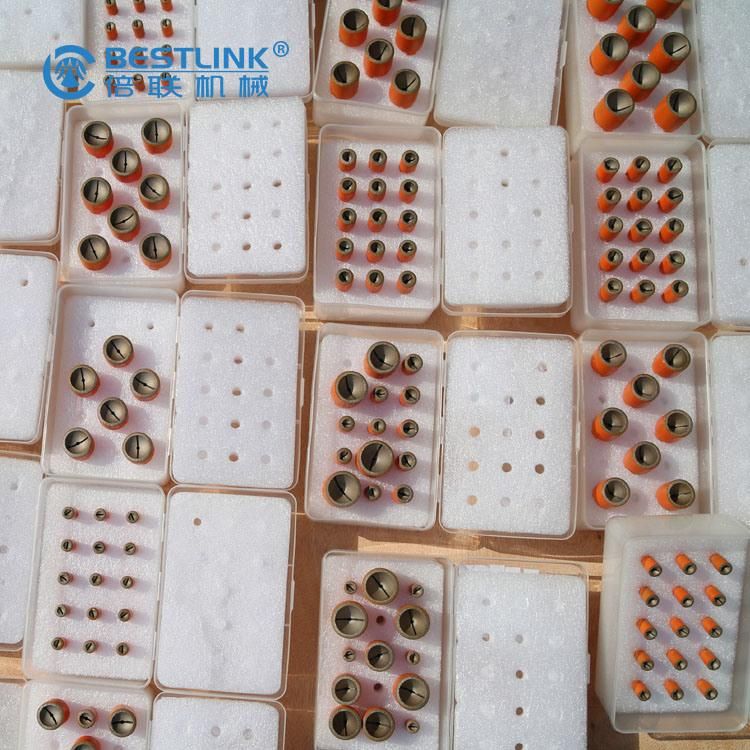

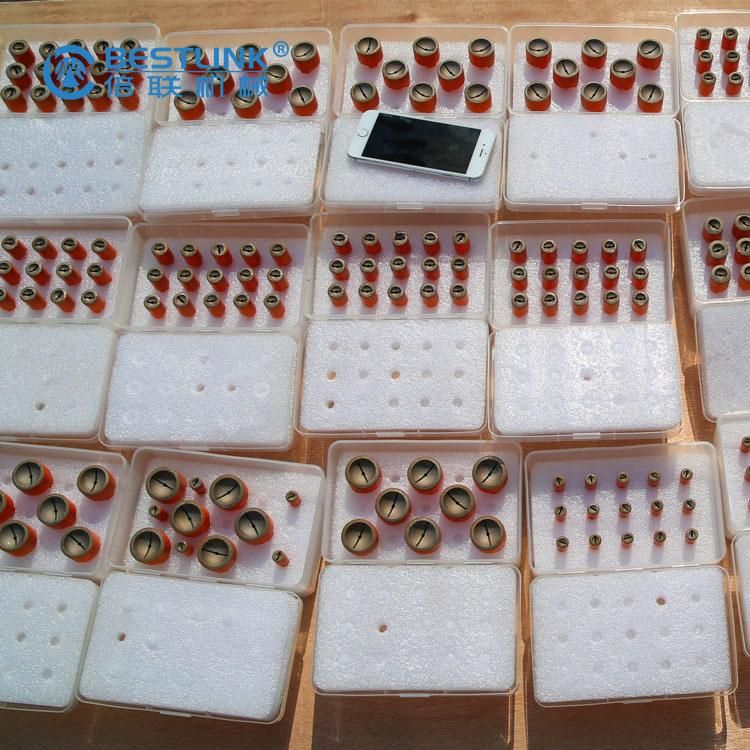

A full spares back-up service is also available. Also produce the grinding pins/cups, available with a choice of Hemispherical, Ballistic Semi Ballistic, Paraboloid or Conical pins, in sizes 6mm to 25mm.
Other sizes available on request.

BTON 500 semiautomatic button bit grinder have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved. Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant
During the grinding process.

PREVENTION MEASURES AND INSTRUSTIONS FOR MACHINES OPERATORS
BEFORE USE:
Check that the machine is stable and that the grinder is correctly and tightly fitted to the machine.
Check the integrity of the guards protecting parts in motion.

DURING USE:
Report immediately any inappropriate functioning or dangerous situations;
The operator's position needs to be such as not to be in contact with the parts in movement;
Do not remove or modify protection devices;
Do not intervene on mobile parts during the functioning of the machine;
Do not get distracted.

AFTER USE:
Correctly position the machine without leaving the tool suspended;
Carry out the review and maintenance operations needed to reuse the machine with the power supply disconnected;
In the maintenance operations comply with the indications of this manual;
Clean the machine.


Rotation speed		20000 rpm
Motor: Pneumatic (air powered) Power output		1.5 KW
Work pressure		5-7 bar (100 psi)
Max. air pressure		8 bar (115 psi)
Air consumption		2.2 m3 / min (80ft3/min)
Max. water pressure		4 bar (60 psi)
Air hose diameter		19 mm
Water hose diameter		4 mm
Weight excl. packaging		50.0 Kg
Weight incl. Packaging		55.0 Kg
Transport dimensions:
Sound level		92 dB(A)
