• Model NO.：GH25
• Product Name：Abrasive Material Steel Grit
• Fatigue Life：3000 Times
• Type：Gh25
• Diameter：1mm
• Durability：Very Good
• Apprance：Angular
• Chemical Composition：C, Si, Mn, S, P, Cr
• C：0.8-1.2%
• Applications：Casting, Scale Removal of Forging and Heat-Treated
• Sample：Yes, We Can Provide 500g
• Payment Term：T,T L,C
• Shape：Angular
• Hardness：Gp 41-50HRC;Gl 50-55HRC;Gh 63-68HRC
• Density：7.6g,cm3
• Micro Structure：Martensite Structure
• Transport Package：25 Kg,Bag, Then 40 Bags in One Ton Bag
• Specification：C, Si, Mn, Cr, S, P
• Trademark：Honest Horse
• Origin：China
• HS Code：720510
• Production Capacity：3000tons,Month

Basic Info.

Model NO. GH25 Product Name Abrasive Material Steel Grit Fatigue Life 3000 Times Type Gh25 Diameter 1mm Durability Very Good Apprance Angular Chemical Composition C, Si, Mn, S, P, Cr C 0.8-1.2% Applications Casting, Scale Removal of Forging and Heat-Treated Sample Yes, We Can Provide 500g Payment Term T/T L/C Shape Angular Hardness Gp 41-50HRC;Gl 50-55HRC;Gh 63-68HRC Density 7.6g/cm3 Micro Structure Martensite Structure Transport Package 25 Kg/Bag, Then 40 Bags in One Ton Bag Specification C, Si, Mn, Cr, S, P Trademark Honest Horse Origin China HS Code 720510 Production Capacity 3000tons/Month

Product Description

Abrasive Material Steel Grit Gh25 for Sandblasting and Polishing


After multiple tests in line with international standards to ensure the highest quality...

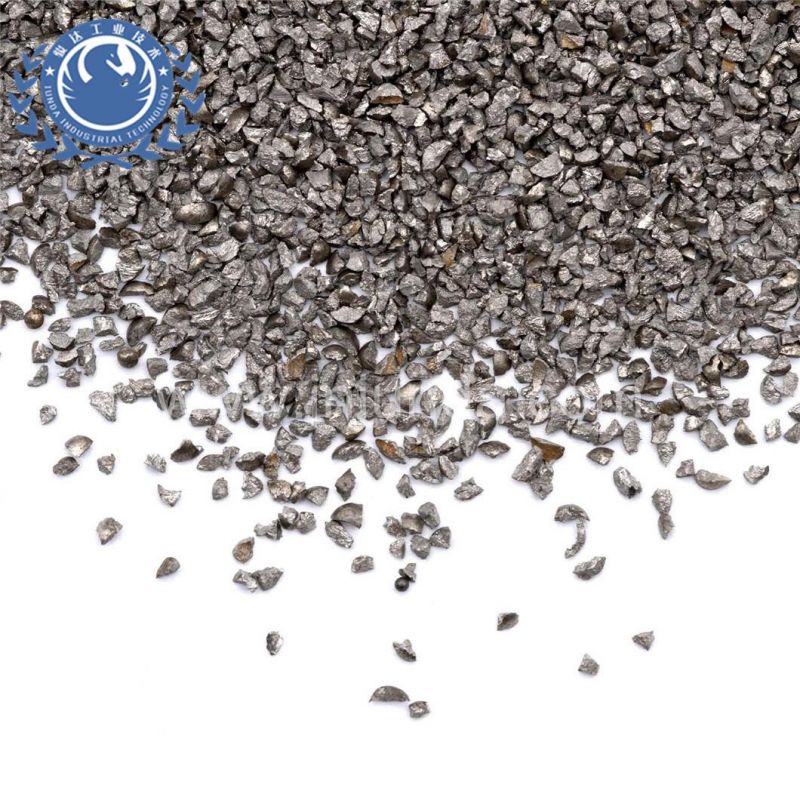

1.Steel grit picture

Steel grit meet American SAE standard, have Moderate hardness, toughness, impact resistance, long lifetime, good elasticity and adhesion, low consumption, good technical effect.




2.Steel grit specification


Project	Quality
C	0.8-1.2%
Si	0.4-1.2%
Mn	0.6-1.2%
Cr	0.26%
Hardness	GP 41-50HRC;  GL 50-55HRC;  GH 63-68HRC
Density	7.6g/cm3
Micro structure	Martensite structure
Appearance	Spherical Hollow particles<5% Crack particle<3%
Type	G120,G80,G50,G40,G25,G18,G16,G14,G12,G10
Diameter	0.2mm,0.3mm,0.5mm,0.7mm,1.0mm,1.2mm,1.4mm,1.6mm,2.0mm,2.5mm
Application	1.Blast cleaning: Used for blast cleaning of casting, die-casting,forging; sand removal of  casting, steel plate, H type steel, steel structure. 2..Rust removal: Rust removal of casting, forging, steel plate, H type steel,steel structure. 3.Shot peening: Shot penning of gear, heat treated parts. 4.Shot blasting: Shot blasting of profile steel, ship board, steel board, steel material,steel structure.

3.Steel grit application

(1)Sandblasting for Shipbuilding
 With grit blasting, oxygenated surface of ship hull is descaled,then improved the coating quality.
(2)Castings Surface Pre-treatment
 Steel grit can also be used for surface pre-treatment,cleaning and descaling for casting parts.
(3)Bridge and Steel Construction
 Pre-treatment and descaling for metal surface,increasing coating quality and antisepsis ability.
(4)Cleaning
 Blast cleaning, forging, casting deoxidization, cleaning H section steel, stainless steel structure.
(5)Derusting
 Casting rust, forgings, rust removing, iron removal, steel derusting, h-steel derusting, steel structure derusting.
(6)Reinforcement
Heat treatment part shot shot strengthening, gear shot strengthening.

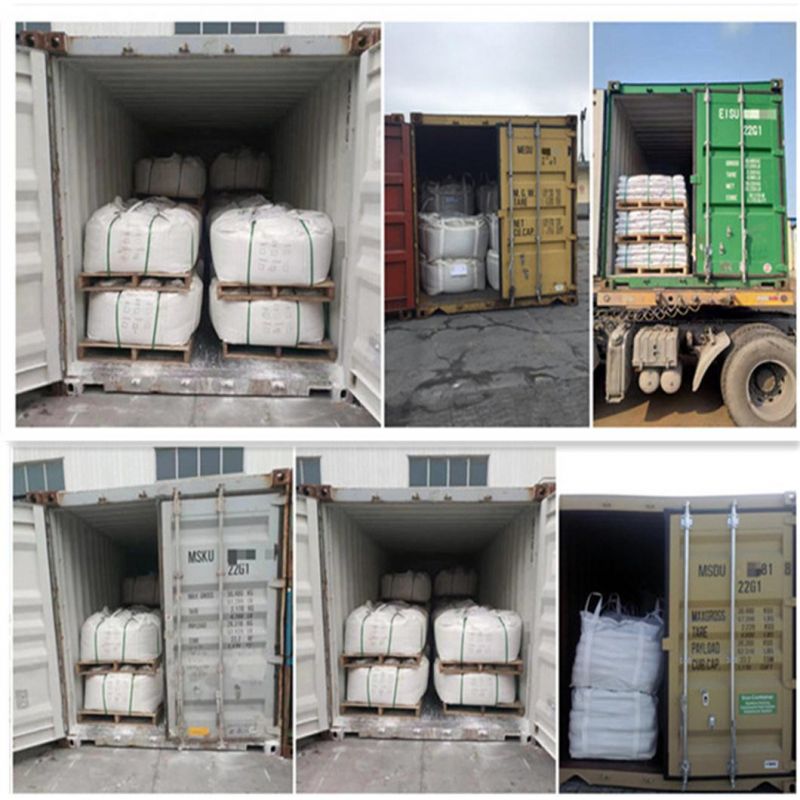

4.Steel grit package

1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.
4. One ton loose in one ton bulk bag.
5. All pakages are lined with waterproof materials.
6. Gnerally, one 20GP container can load 25 tons, 27 tons at most.
We can also pakage according to costomers' requirements.

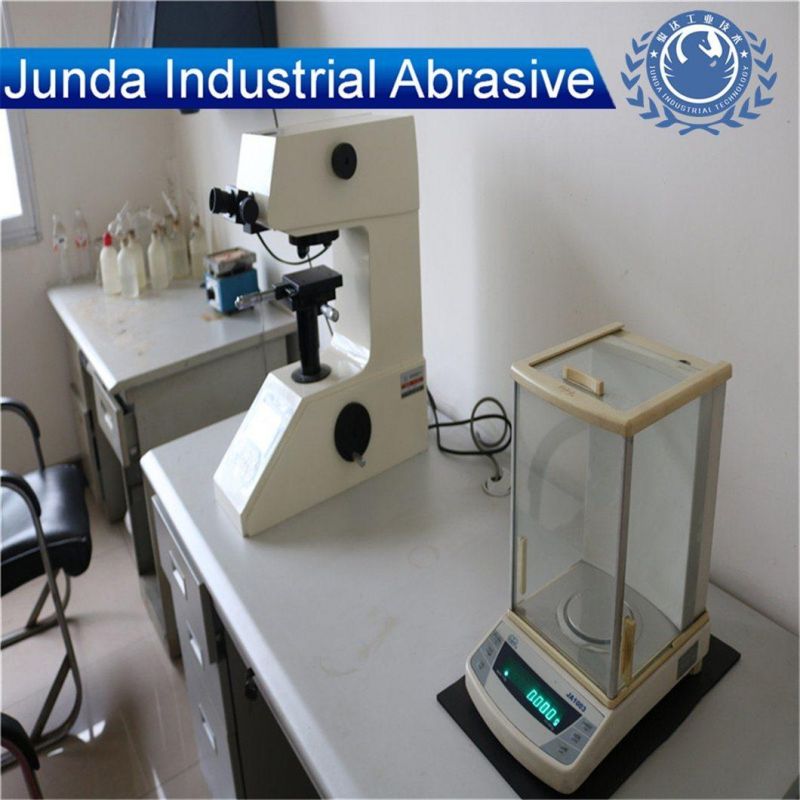

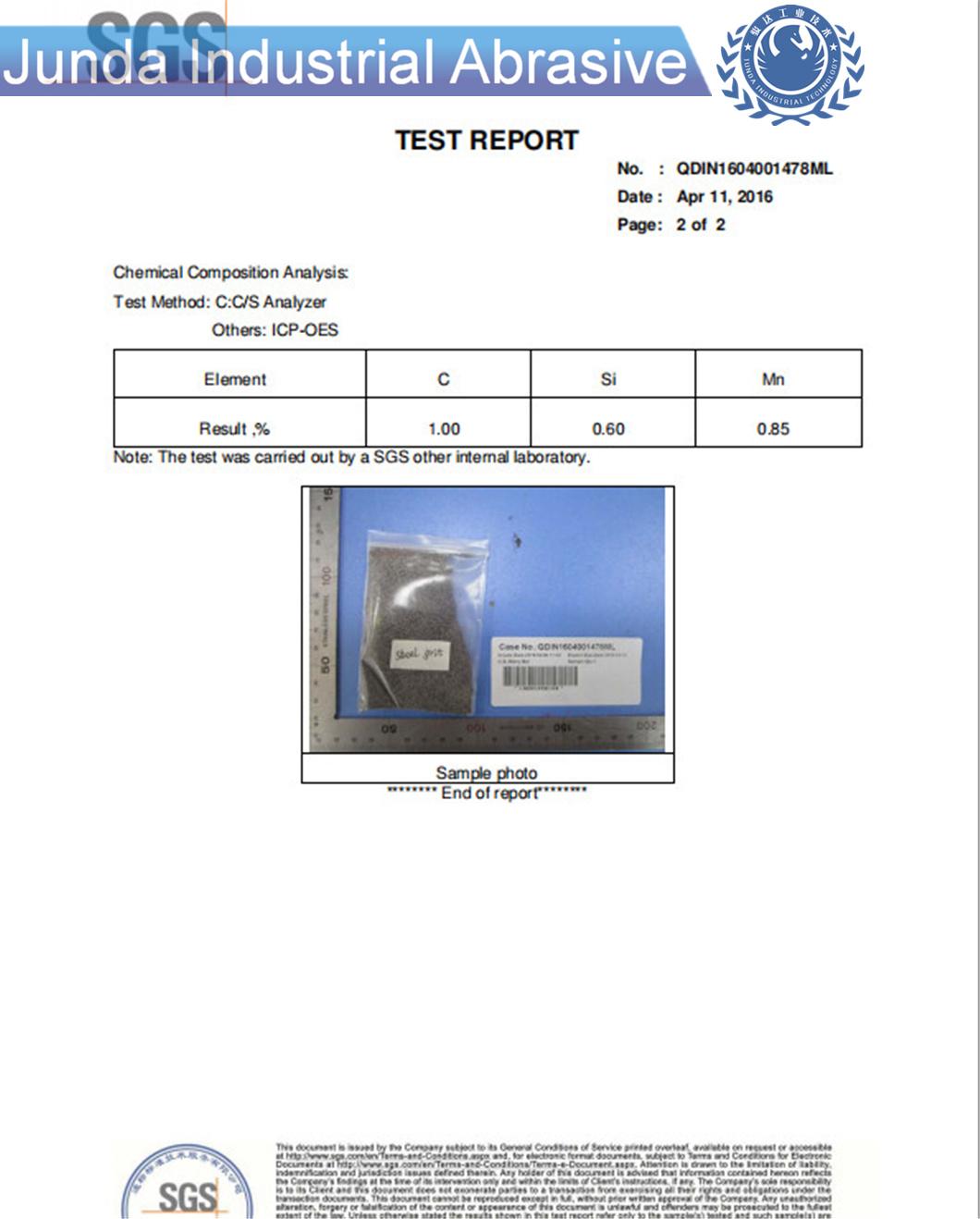

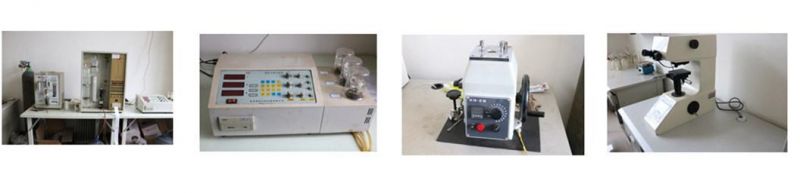

5.Steel grit test and SGS report

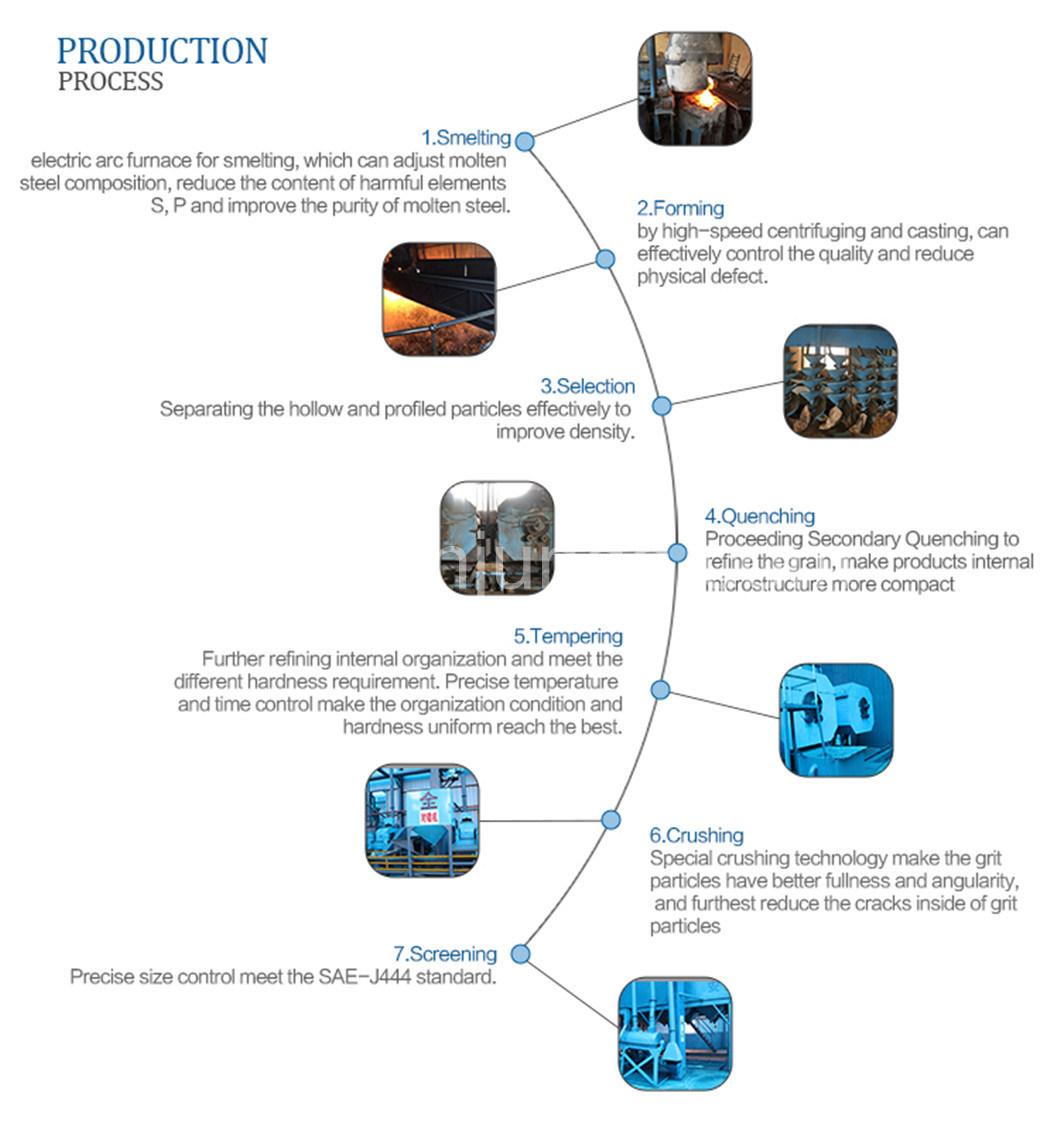

6.Steel grit production







7.Company profile

Jinan Junda Industrial Technology Co.,Ltd. , authorized by Honest Horse (CHINA) Holding Limited, is established in 2005. Our company headquarters is located in Jinan city,Shandong Province,China. We are the manufacturer of abrasive media in north China which products
include

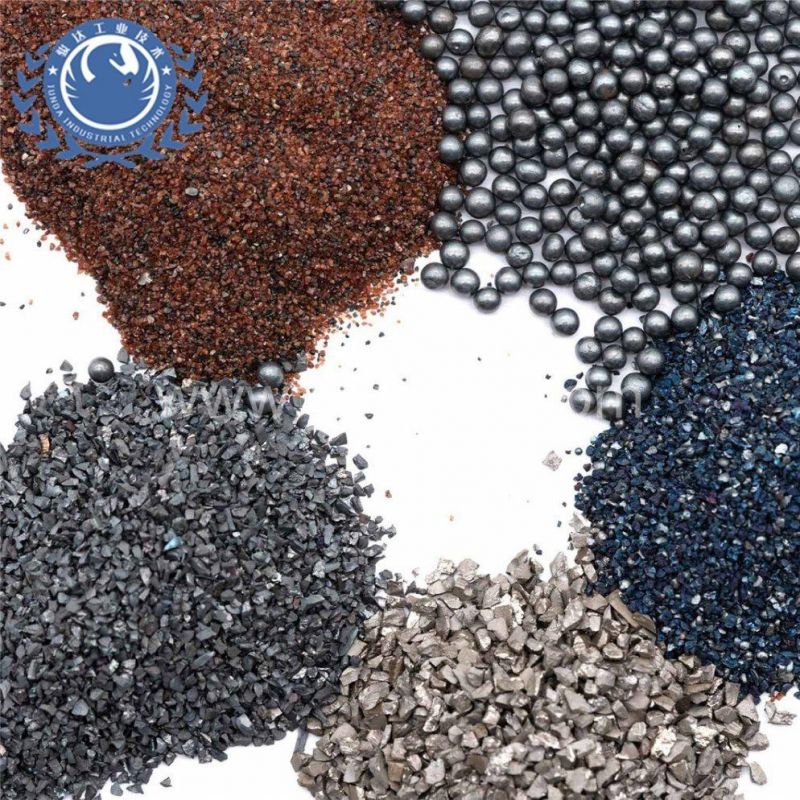

bearing steel grit, cast steel grit, cast steel grit, steel shot and garnet sand.

Based on our good qualified product and good service,we have a good reputation among our customers. And we welcome customers all over the world do cooperation with us!










8.RFQ

Q1. What is the mode of your payment?
T/T: 50% advance payment and the rest 50% payment oay us when you get the scanned B/L from our E-mail.
L/C:100% irrevocable L/C at sight.

Q2. What's the MOQ of your product?
As usual MOQ is 5TONS.Or as your require, we need to calculate the new price to you.

Q3. Can you provide the free samples?
Yes, we can send free samples less than 500g to you. Normally, we can send samples to customer by
express, such as DHL,TNT,Fedex,Aramex, etc.

Q4. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
