High Purity Diamond Micronpowder for Making PCD/PDC Diamond Tools

SINO ZHENG INDUSTRIAL INC.
  • Type：Diamond
  • Classification of Diamond：Artificial
  • Characteristic：Hight Temperature
  • Characteristics of Natural Diamond：High Pressure
  • Application：Polishing, Grinding, Abrasive
  • Raw Material：Zhongnan

Base Info

  • Model NO.：HID PCD
  • Size：0.05um - 60um
  • Purity：99.9%
  • Color：Yellow
  • Delivery Time：3-5 Business Days
  • Transport Package：Plastic, Bottle, Carton
  • Specification：ISO9001
  • Trademark：Harmony
  • Origin：Zhengzhou China
  • HS Code：71051020
  • Production Capacity：20, 000, 000 Carat,Year

Description

SizeD10≥(µm)D50(µm)D95≤(µm)Max(µm)Min(µm)0-0.250.10.170~0.2100.38----0-0.50.120.220~0.2800.51-----0-10.420.501~0.5800.7951.1560.3750.5-10.4720.581~0.6901.0531.3750.3750.5-1.50.5040.691~0.8711.2981.9450.3750-20.620.872~0.9851.5422.3120.4461/20.7610.986~1.2241.8943.270.630.5-30.941.225~1.4872.4013.8890.631/31.0481.488~1.7122.8824.6250.751.5-31.1691.713~2.0143.3215.50.752/31.3922.015~2.3023.6636.5410.8922/41.6442.303~2.7544.4967.7780.8922/51.8032.755~3.3125.59.251.063/62.4483.313~3.8986.386111.4993/72.9133.899~4.6767.56613.081.7834/83.6054.677~5.4008.45515.562.1214/93.9525.401~6.0629.76218.52.5225/104.4016.063~6.70010.9818.52.9995/125.0226.701~7.67312.95223.5666/125.8077.674~8.54913.9726.164.2417/146.4118.550~9.48315.1326.164.2418/167.1139.484~10.7817.8231.115.0448/208.10210.79~12.5620.6375.99810/209.18612.57~14.1822.54377.13312/2210.5314.19~16.0524.41447.13312/2512.0116.06~17.6526.61448.48215-2513.3217.66~19.5529.7552.3310.0920-3015.0419.56~22.5034.6462.231222-3617.2822.51~26.1239.98741230-4020.1126.13~30.1046.568814.2730-5022.3630.11~34.5852.878816.9636-5425.6834.59~39.0060.94104.720.1740-6029.4539.01~43.2069.86124.520.1750-7032.4243.21~47.5072.65124.523.9954-8036.5647.51~52.5080.74124.523.99



Feature:

- Good & stable dispersion and suspension ability for both water-based and oil-based agent to ensure the grinding and polishing efficiency

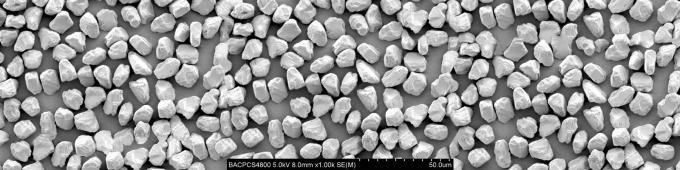

- Narrow PSD, high content of very blocky shape particles

- Good heat resistance, high wear- resistance

- Complete sizes available.

High Purity Diamond Micronpowder for Making PCD/PDC Diamond Tools



Characteristics:

High purity with PPM level, narrow PSD, high content of very blocky shape particles, good & stable dispersion and suspension ability.

High Purity Diamond Micronpowder for Making PCD/PDC Diamond Tools



Application for Grade HID PCD/PDC Micron Diamond:

Without the need of further treatment, directly for making PCD/PDC, and diamond slurries for lapping, grinding, polishing on many kinds of material surface including needing special conditioning.

High Purity Diamond Micronpowder for Making PCD/PDC Diamond Tools
