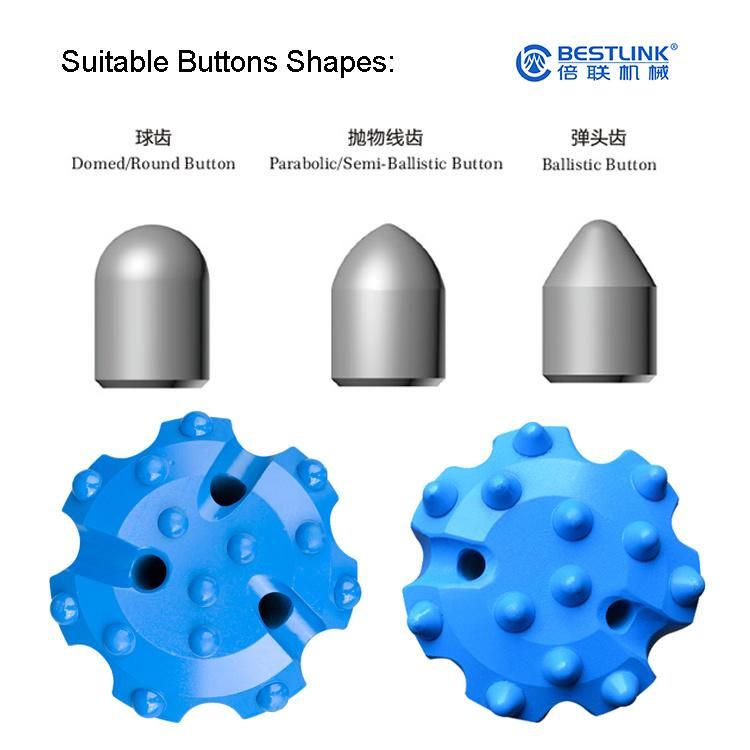

Ballistic and Spherical Button Bits Grinder
Xiamen Bestlink Factory Co., Ltd.- Power Source：Pneumatic
- Object：Drilling Bit
Base Info
- Model NO.：BTON200
- Application：Construction
- Disc(Wheel) Type：Grinding Disc
- Material：Steel
- Working Style：High-speed universal
- Disc Diameter：100mm
- Variable Speed：Without Variable Speed
- Transport Package：by Carton
- Specification：6mm to 25mm
- Trademark：BESTLINK
- Origin：China
- HS Code：84609090
- Production Capacity：1000000PCS Per Year
Description
Basic Info.
Model NO. BTON200 Application Construction Disc(Wheel) Type Grinding Disc Material Steel Working Style High-speed universal Disc Diameter 100mm Variable Speed Without Variable Speed Transport Package by Carton Specification 6mm to 25mm Trademark BESTLINK Origin China HS Code 84609090 Production Capacity 1000000PCS Per YearProduct Description
Bestlink Factory Price Pneumatic DTH Bits grinding & Sharpening MachineDepending on your needs the grinders listed on the left are available in both pneumatic and semi-hydraulic configuration. The pneumatic system is what set the standard for button bit grinding and still proves to be a very effective tool for maximizing bit performance in all drilling conditions.

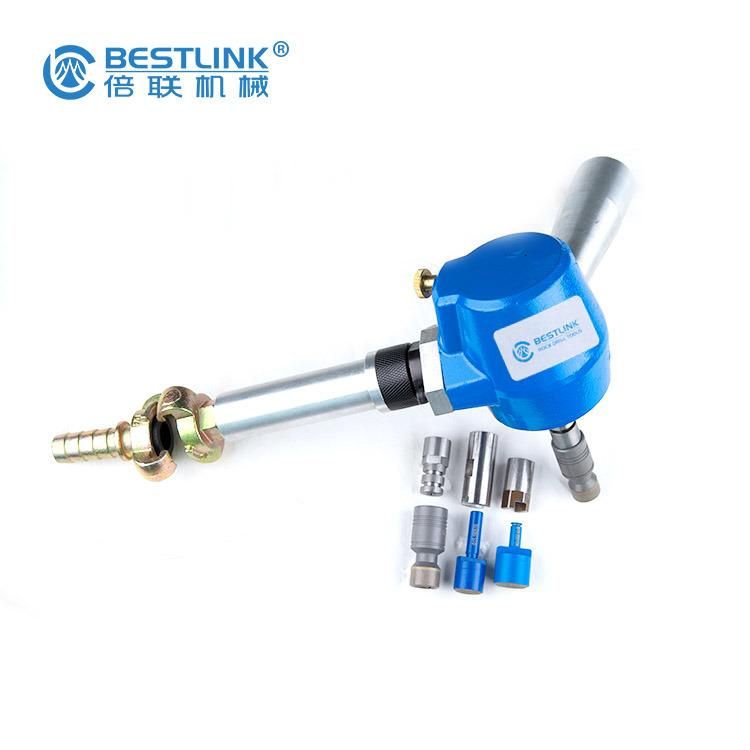

High Rotation Speed Hand-Held Button Bit Grinder
Rotation speed:20000RPM
Motor power: 1.5 KW
Work pressure: 5-7 bar (100 psi)
Air consumption: 2.0 m3 / min (50ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6mm
Weight excl. packaging: 3.0 Kg
Weight incl. packaging: 3.4 Kg
Sound level: 92 dB(A)

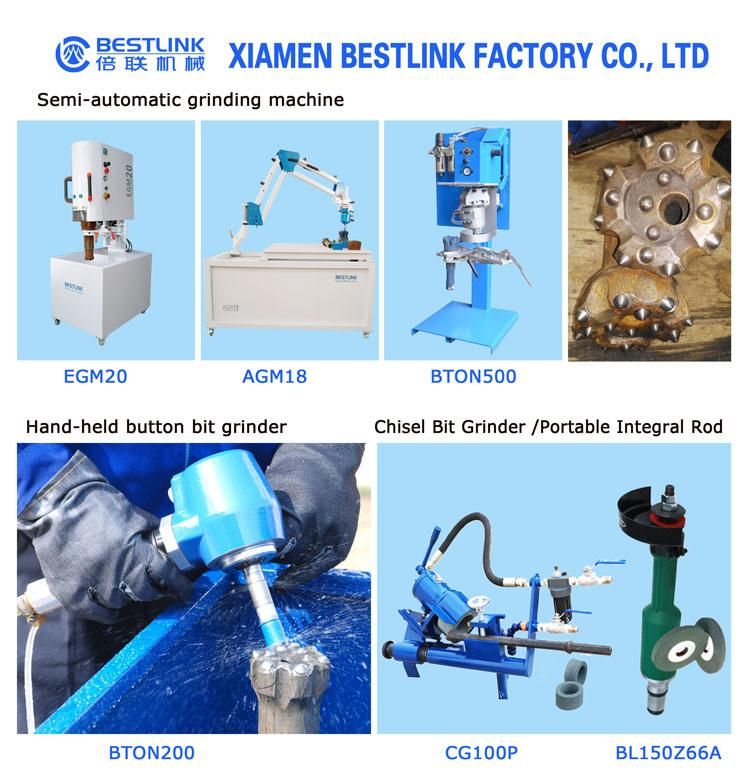

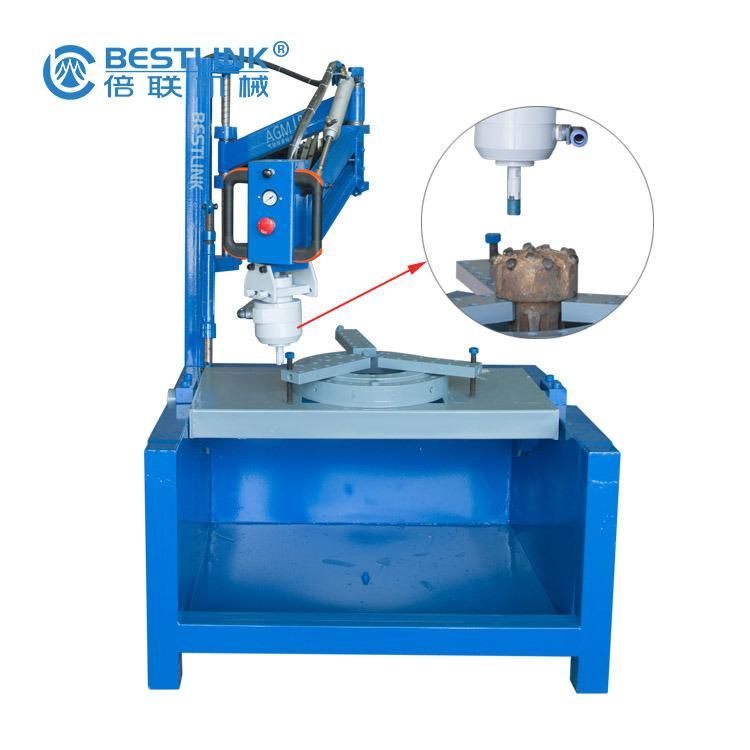

Pneumatic robot arm button bits grinder AGM18
Rotation speed:20000 rpm
Motor power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:330.0 Kg
Weight incl. packaging: 350.0 Kg
Transport dimensions: 1600*700*1500cm
Sound level: 92 dB(A),

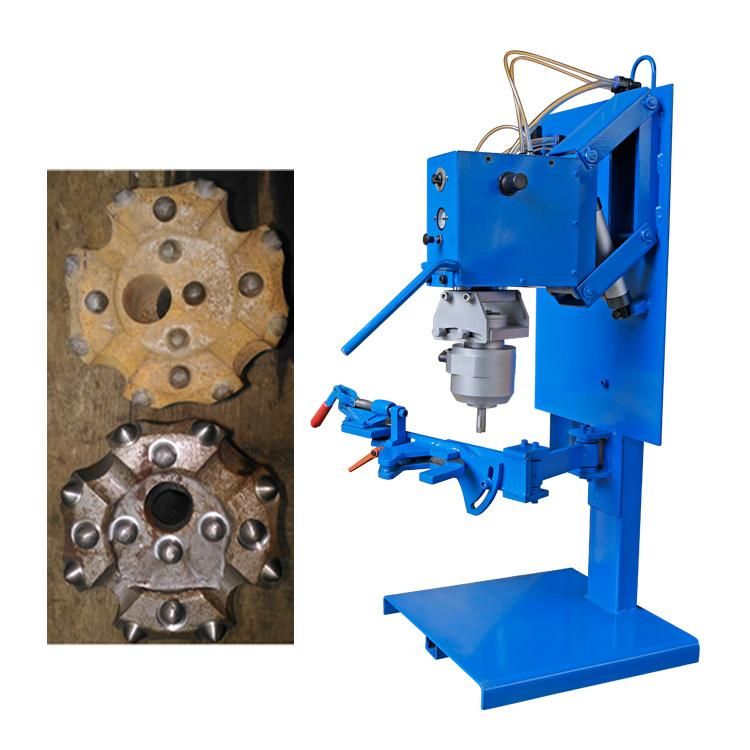

Pneumatic Semi-automatic button bits grinder BTON500
Rotation speed:20000 rpm
Motor Power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:120.0 Kg
Weight incl. packaging: 130.0 Kg
Transport dimensions:500*500*1400mm
Sound level: 92 dB(A),
