• Model NO.：YMJ-630
• Application：Construction
• Disc(Wheel) Type：Grinding Disc
• Material：Metal
• Working Style：High-speed universal
• Disc Diameter：630mm
• Variable Speed：With Variable Speed
• Power：15HP
• Votage：380V
• Frequency：50Hz
• Electric Current：22.0A
• Noisy：50-60 Dba
• Speed：0-750rpm
• Working Width：630*630mm
• Water Tank：60L
• Driving Method：Gear
• Transport Package：Wooden Case
• Specification：330kg
• Trademark：IDEAL
• Origin：Henan
• HS Code：8474802000
• Production Capacity：500PCS,Month
• Package size per unit product：107.00cm * 66.00cm * 120.00cm
• Gross weight per unit product：350.000kg

Basic Info.

Model NO. YMJ-630 Application Construction Disc(Wheel) Type Grinding Disc Material Metal Working Style High-speed universal Disc Diameter 630mm Variable Speed With Variable Speed Power 15HP Votage 380V Frequency 50Hz Electric Current 22.0A Noisy 50-60 Dba Speed 0-750rpm Working Width 630*630mm Water Tank 60L Driving Method Gear Transport Package Wooden Case Specification 330kg Trademark IDEAL Origin Henan HS Code 8474802000 Production Capacity 500PCS/Month

Packaging & Delivery

Package size per unit product 107.00cm * 66.00cm * 120.00cm Gross weight per unit product 350.000kg

Product Description

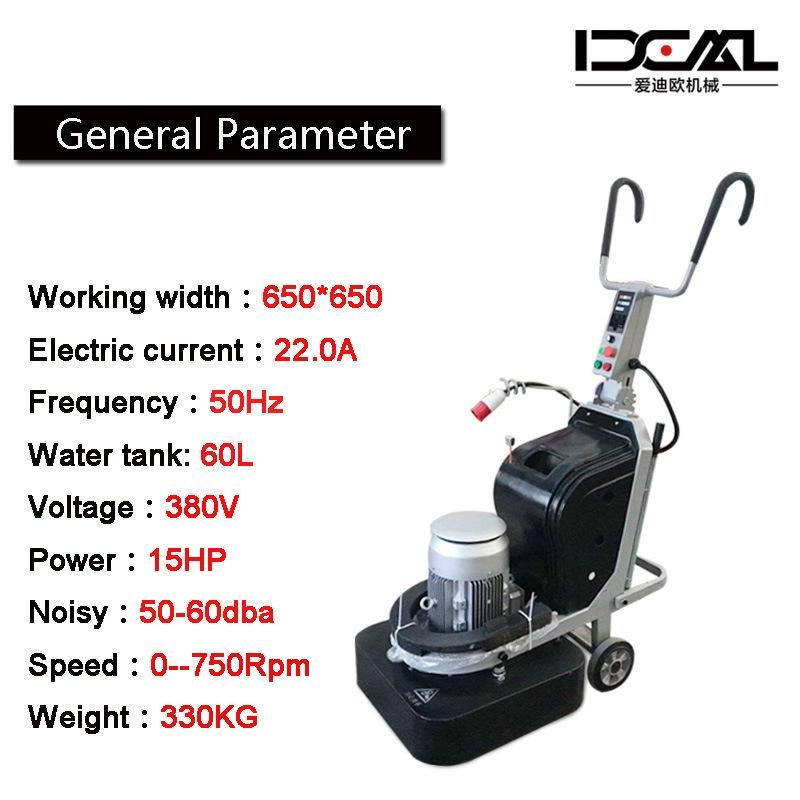

Frequency Conversion Floor Grinder for Sale

Instruction:

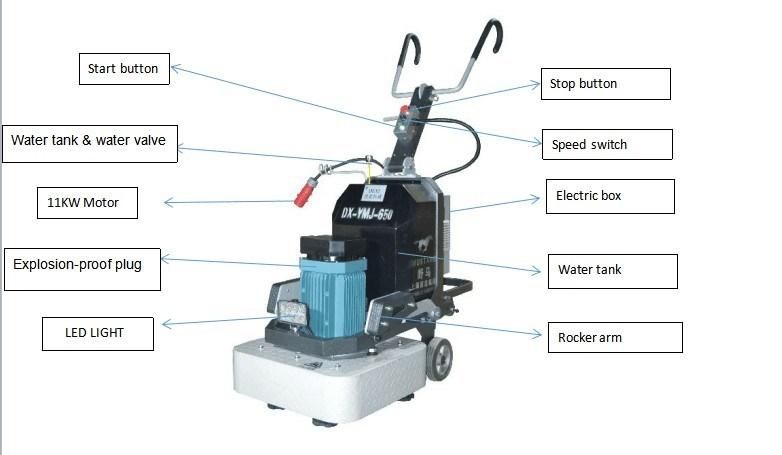

1. Turn up the machine, clean up the three-blades pan, put the rotary vane disc equip the head of three blades, Put down the machine to the working site.
2. Connect the power by the explosion-proof plug,(must use international standard cable conductor equal or more than 4²), turn on the red start button, red power led lights up.
3. Press the green start button, frequency charger start working.
4. Rotate the speed switch, the motor start working, the machine starts normal work.
5. After finish working, turn down the speed switch to the minimum value, press the red stop button after the machine completely finished working, then close the power;(attention: Red stop button is allowed when an emergency.)

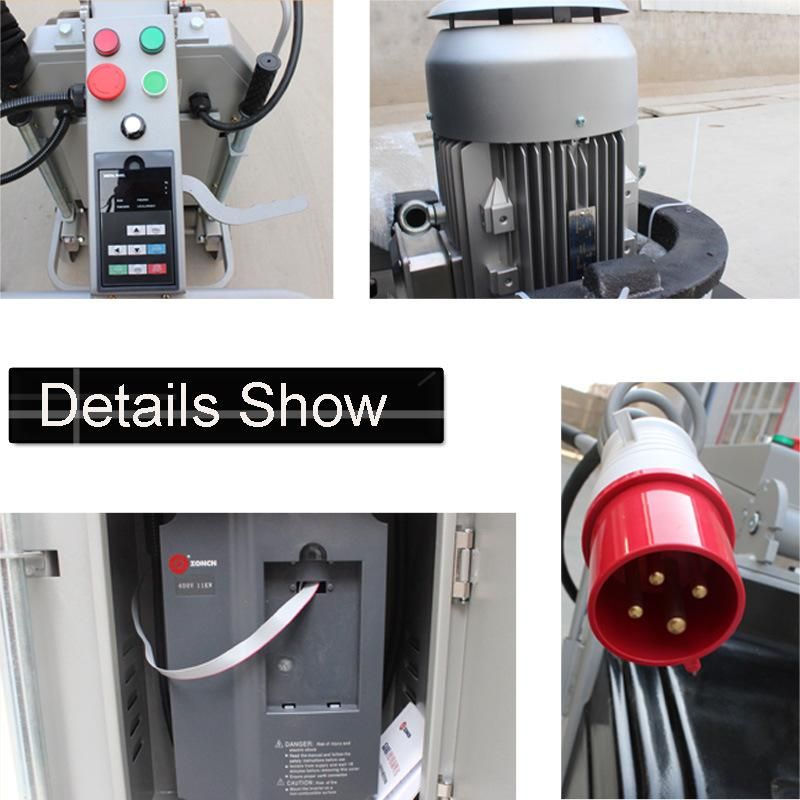

product details:

Other products:

steel bar machines: steel bar cutter, steel bar bender, steel bar straightening and cutting machine, stirrup bending machine, thread rolling machine

road equipment: power trowel, plate compactor, tamping rammer, concrete cutter, road roller, floor grinder, concrete truss screed, concrete vibratory screed, bull float

concrete machines: frame type concrete vibrator, piggyback vibrator, concrete ground cleaning machine.

and all the parts of our machines.

Ideal products are best sold in the domestic market and very popular in Mid-east, Africa, Europe, American, etc. Our superior quality and perfect after-sale service have already gotten customers highly praise.
