SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval

Jinan Junda Industrial Technology Co., Ltd.
  • Natural Abrasive Type：Garnet
  • Artificial Abrasive Type：Garnet Sand
  • Application：Sandblasting
  • Function：Surface Finish
  • Source：Natural Abrasives
  • Particle Size：Abrasive

Base Info

  • Model NO.：30-60#
  • Hardness：8 Mohs
  • Product Name：Garnet Sand Abrasive 30-60#
  • Specific Weight：4.1g,cm3
  • Chloride Content：0.01%
  • Color：Red
  • Certificate：SGS, ISO
  • Average Bulk：2.4G,Cm3
  • Radiio Activity：Not Detectable Above Background
  • Crystal System：Cubic
  • Frcture：Sub-Conchoidal
  • Free Silica Content：None
  • Mno：0.5%
  • Soluble Salts：Less Than 100ppm
  • Gypsum Content：Nil
  • Moisture Content：Less Than 0.5%
  • Carbonate Content：Traces
  • Transport Package：25kg,PP Bag, Then 40 Bags in One Ton Bag
  • Specification：30,60
  • Trademark：Honest Horse
  • Origin：China
  • HS Code：251320
  • Production Capacity：3000tons,Month

Description

Crushing→washing→magnetic separation →drying →screeningMINERALOGICAL COMPOSITIONGarnet (Almandite)95% at least Ilmenite1-2% Quartz<0.5% Others0.5%CHEMICAL ANALYSISSilicon Dioxide (SiO2)39.03% Ferric Oxide (Fe2O3)24.62% Aluminium Oxide (Al2O3)15.14% Calcium Oxide(CaO)10%MAX Magnesium Oxide (MgO)6%MAX TIO22%MAX MnO1% MAXPHYSICAL CHARACTERISTICSChloride<25PPM Hardness (Mohs )8 PH6.93 Conductivity105 μS/cm Bulk density2.34 g/cm3; 145 lb/ft3 Specific gravity4.10 g/cm3 Grain shapeSharp angular

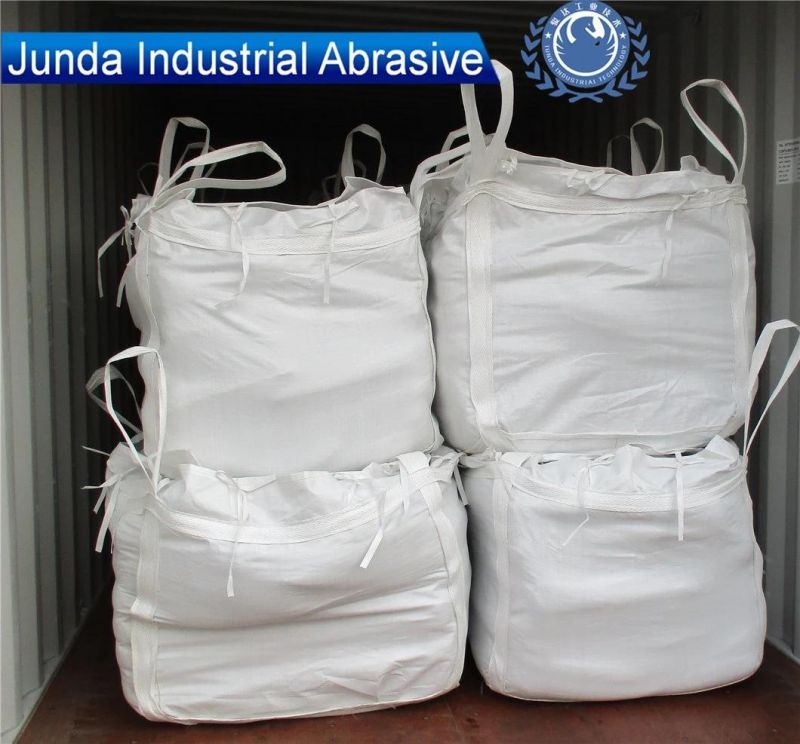

4.Garnet Sand Normal Package

1. 25kg per bag(pp bag or paper bag), then 40 bags put in a 1000kg (2200lb) bulk bag.
2. 25 kg per bag(pp bag or paper bag), then 40 bags shrink wrapped onto a 1000kg (2200lb) pallet.
3. 25 kg per bag(pp bag or paper bag), then 40 bags in one box.
4. One ton loose in one ton bulk bag.
5. All pakages are lined with waterproof materials.
6. Gnerally, one 20GP container can load 25 tons, 27 tons at most.
We can also pakage according to costomers' requirements.




SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval

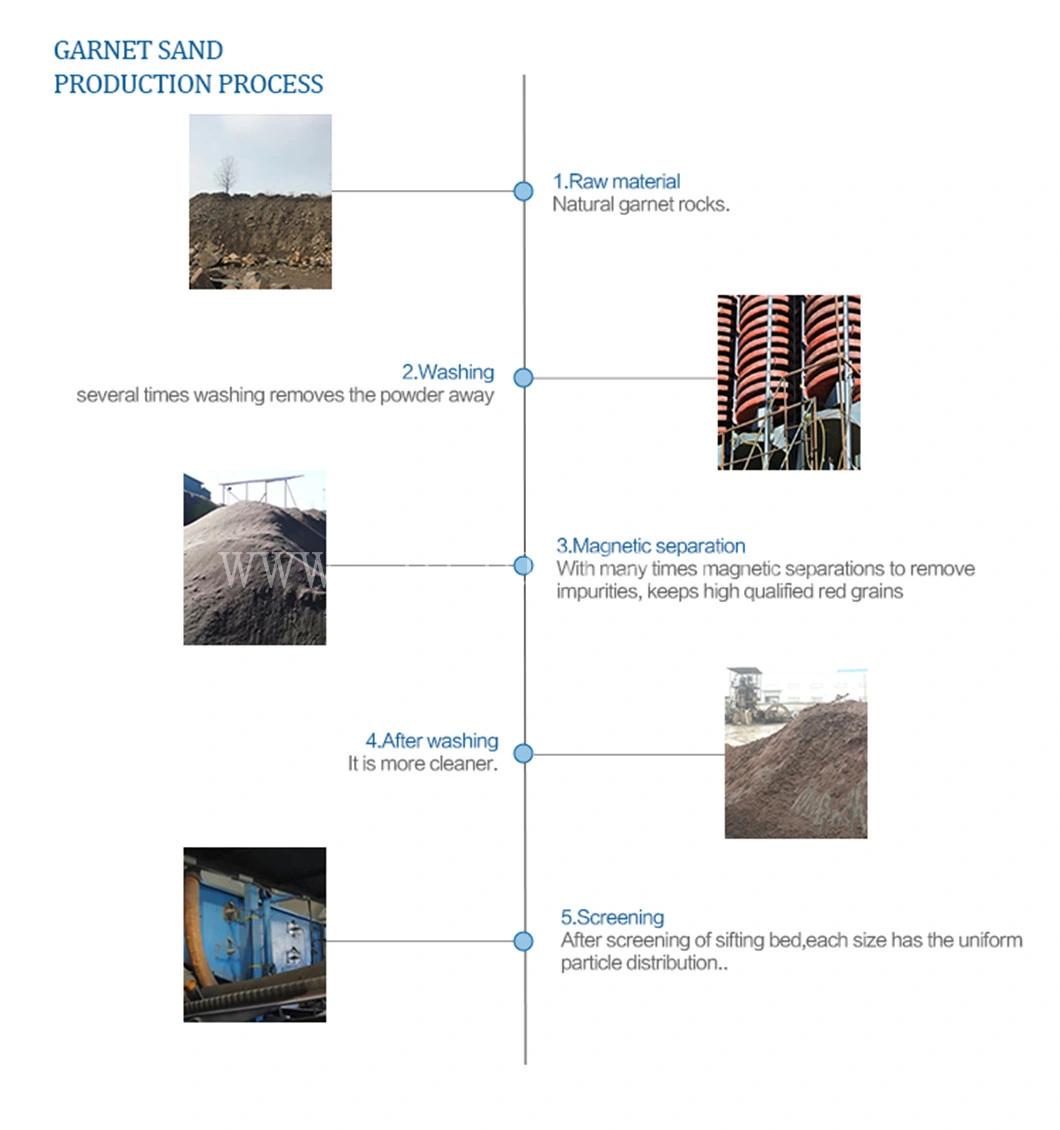

5.Garnet Sand Production Technology

Our garnet sand goes through crushing,washing,magnetic separation,drying and screening production procedures.



SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval

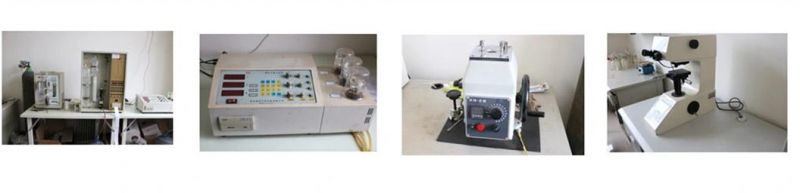

6.Garnet Sand Detection



SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval

7. Company Profile

Jinan Junda Industrial Technology Co.,Ltd. is located in Jinan,Shandong Province,China,which is the daughter company of Honest Horse (CHINA) Holding Limited. We are the manufacturerof abrasive mediafor more than 15 years experience in north China.

Abrasives media we manufacture:

Bearing steel grit

Cast steel grit

Steel shot

Steel cut wire shot

Garnet sand

The products reach the ISO9001 standard,SAE J444 standard and always enjoy a good reputation among our customers.


SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval
SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval
SA3 Blasting Level Garnet Abrasive 30-60# with Koc Approval





8.Services

(1)Sample service

If you feel interested in our products sincerely,we can supply sample for free.

(2)Customized Service

 Product---We can produce various size abraisves according to the customers' requirements.

 Package---The products can be packaged as customers' requirements.

(3)Payment term

 T/T--50% advance payment then the rest 50% payment pay us when get the scanned B/L.

 L/C--100% irrevocable L/C at sight
