• Model NO.：11V9, 12A2, 4A2, 9A3, 15A9, 1A1R, 4A2P
• Circular Degree：<1
• Technics：Sinter
• Working Style：Cutting
• Hardened Steels, Tungsten Carbide：Diamond , CBN Wheel for Profile Grinding
• CBN Double Grinding Disc：Diamond , CBN Wheels with Ceramic Body
• CBN Double-Disc Surface Grinding Wheel：Compressor Parts, Washer, Oil Pump Parts, Automob
• Bearing, Gears：Surface and Cylindrical Grinding
• Pg Grinding Wheel：Diamond ,CBN Wheels for Die Industry
• Die Industry, Slotting and Grooving：Optical Curve Grinding. Jv Grinding
• Diamond Cutting Wheels：Diamond Wheels with Bakelite Body
• Top Grinding Wheels：Vollmer Dornhan and Widma Equipment
• Face Grind Walter Woodtronic：Side Grind Vollmer Dornhan & Widma
• Transport Package：carton
• Specification：EN 12413
• Trademark：Sumeng, saili, bondflex
• Origin：Jiangsu China
• HS Code：68042210
• Production Capacity：300, 000 pieces

Basic Info.

Model NO. 11V9, 12A2, 4A2, 9A3, 15A9, 1A1R, 4A2P Circular Degree <1 Technics Sinter Working Style Cutting Hardened Steels, Tungsten Carbide Diamond / CBN Wheel for Profile Grinding CBN Double Grinding Disc Diamond / CBN Wheels with Ceramic Body CBN Double-Disc Surface Grinding Wheel Compressor Parts, Washer, Oil Pump Parts, Automob Bearing, Gears Surface and Cylindrical Grinding Pg Grinding Wheel Diamond /CBN Wheels for Die Industry Die Industry, Slotting and Grooving Optical Curve Grinding. Jv Grinding Diamond Cutting Wheels Diamond Wheels with Bakelite Body Top Grinding Wheels Vollmer Dornhan and Widma Equipment Face Grind Walter Woodtronic Side Grind Vollmer Dornhan & Widma Transport Package carton Specification EN 12413 Trademark Sumeng, saili, bondflex Origin Jiangsu China HS Code 68042210 Production Capacity 300, 000 pieces

Product Description

We produce Resinoid Superabrasives diamond and CBN wheels to many different industries, for many different applications around the world.

Diamond / CBN Wheel for Profile Grinding
Profile diamond and CBN wheels for different materials such as hardened steels, tungsten carbide. Sharpness and accuracy, excellent form holding

Diamond / CBN Wheels with Ceramic Body
Resin diamond / cbn wheel with ceramic body, mainly for die industry, excellent heat resistance, deep feed and high stock removal

CBN Double Grinding Disc
CBN double-disc surface grinding wheel for bearing, gears, compressor parts, washer, oil pump parts, Automobile parts etc

Surface and Cylindrical Grinding
Diamond & CBN wheels for precision surface and cylindrical grinding with advanced grindability and long life

Diamond /CBN wheels for Die industry
PG grinding wheel, mainly die industry, Slotting and grooving of metal or nonmetal materials, optical curve grinding. JV Grinding and some other precision grinding

Diamond Wheels with Bakelite Body
Diamond wheel with Bakelite body with good elasticity, used in woodworking industry, free cutting and long life

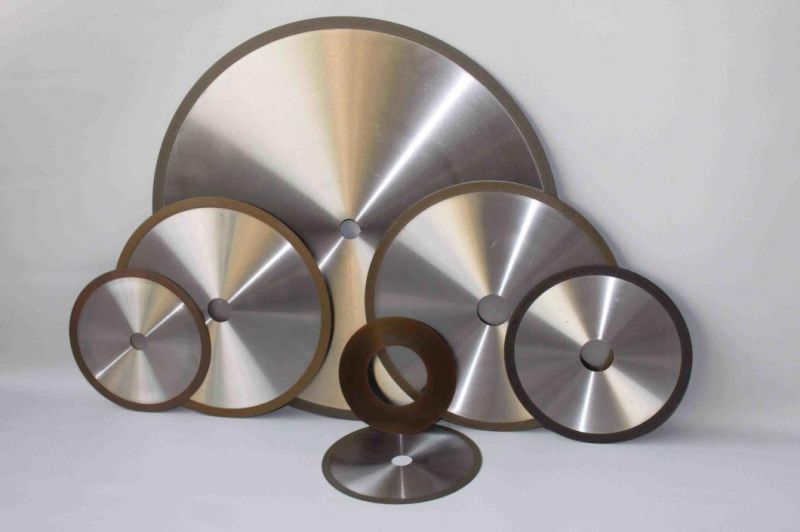

Diamond Cutting wheels
Diamond cutting wheel for tungsten carbide, alloys, quartz, ceramics, glasses, carbon fibre composites, fiberglass etc

D4A2 100mm x 3/8 x 25mm D 240 R 125 B 1/16 W=1/8

B12V9 125mm x 13mm x 25mm CBN 220 R 100 B 1/16 S=20°

D4V2 125mm x 11mm x 25mm D 240 R 125 B 2mm W=4mm

B4B2 175mm x 13mm x 50.8mm CBN 120 R 100 B 2mm W=1/4

Top Grind Vollmer Dornhan & Widma

TOP GRINDING WHEELS FOR VOLLMER DORNHAN AND WIDMA EQUIPMENT

D6A2 100mm x 3/4 x 25mm D 180/400 R 100 B 1/4 W=5mm

B6A2 4 x 3/4 x 25mm CBN 120/220 R 100 B 1/4 W=1/4

D6A2 125mm x 20mm x 50.8mm D 180/400 R 100 B 1/4 W=5mm

B6A9 100mm x 3/4 x 25mm CBN 150 R 100 B 3/16 U=1/4

Side Grind Vollmer Dornhan & Widma
SIDE GRINDING WHEELS FOR VOLLMER DORNHAN AND WIDMA EQUIPMENT

D4A1 3 x 9/16 x 20mm D 220 R 75 B 3/16 U=5/32

B4A1 100mm x 9/16 x 20mm CBN 120 R 50 B 5/32 U=5/32

Face Grind Walter Woodtronic

FACE GRINDING WHEELS FOR WALTER WOODTRONIC EQUIPMENT

D4A2 160mm x. 457 x 32mm D 240 R 125 B 1/16 W=1/8

B12V9 200mm x 1/2 x 32mm CBN 220 R 100 B 1/16 S=20°

Top Grind Walter Woodtronic
TOP GRINDING WHEELS FOR WALTER WOODTRONIC EQUIPMENT

D14B1 150mm x 8mm x 32mm D 180/400 R 125/100 B 1/4 U=5mm

B14B1 200mm x 8mm x 32mm CBN 150/240 R 100 B 1/4 U=5mm
