• Model NO.：92%
• Customized：Customized
• Quality：First Class
• Delivery Time：15~25 Days as Your Request
• Samples：Free Samples Can Be Provided
• MOQ：50kg
• Export Markets：Global
• Sample Time：2-5days
• Bulk Order Time：10-30days
• Transport Package：Safe Carton with Pallet
• Specification：92%95%99%
• Trademark：qimingxing
• Origin：Shandong
• HS Code：6909120000
• Production Capacity：18000

1

Ceramic
 Tiles

AL2O3

92%-95%,ZTA

Moh's hardness (scale)

9

Density

>3.60 g/cm3

Abrasion

≤0.0002g(P=76N n=800rpm t=30m)

Fracture toughness KIC

≥4.8 Mpa·m1/2

Flexural strength (20ºC, Mpa)

≥280 Mpa

Compressive strength

≥850Mpa

Rockwell hardness

≥80 HRA

Thermal conductivity(normal temperature)

20w/m.k

2

Rubber

Component

natural rubber,nitrile-butadiene rubber ,Flame Retardant ,others

Density

~1.4g/cm3

Tensile strength at break

≥15Mpa

Elongation at break

≥250%

Shore Hardness

48-65

Adhesive between tile and rubber

≥3.5 Mpa

Adhesive between rubber and equipment

≥3.5 Mpa

Thermal conductivity.(normal temperature)

2w/m·k

Aging period

≥15 Years

Working temperature

-50ºC - 200ºC

3

Steel plate

Material

Q235A

Density

7.85g/cm3

Thickness

5-6mm

4

Adhesive

Appearance

 Brown glutinous liquid

Solid content

20±3%

Viscosity

≥2.5 Mpa

Peel strength

48h  N/2.5cm≥120

Compressive strength

≥850 Mpa

Working temperature

-20ºC - 100ºC

Ceramic Size (mm)

Square Tile:  10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc.

Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc.

Locking block with lock and groove: 38x38, 40x40, 30x30,etc.

Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with
13 dimples, 20x20 with 1 semi-spherical surface

Ceramic Thickness (mm)

1.5-50mm

Alloy Steel Size (mm)

Thickness: 3-10mm

Rubber Thickness (mm)

Depends on the impact stress expected.

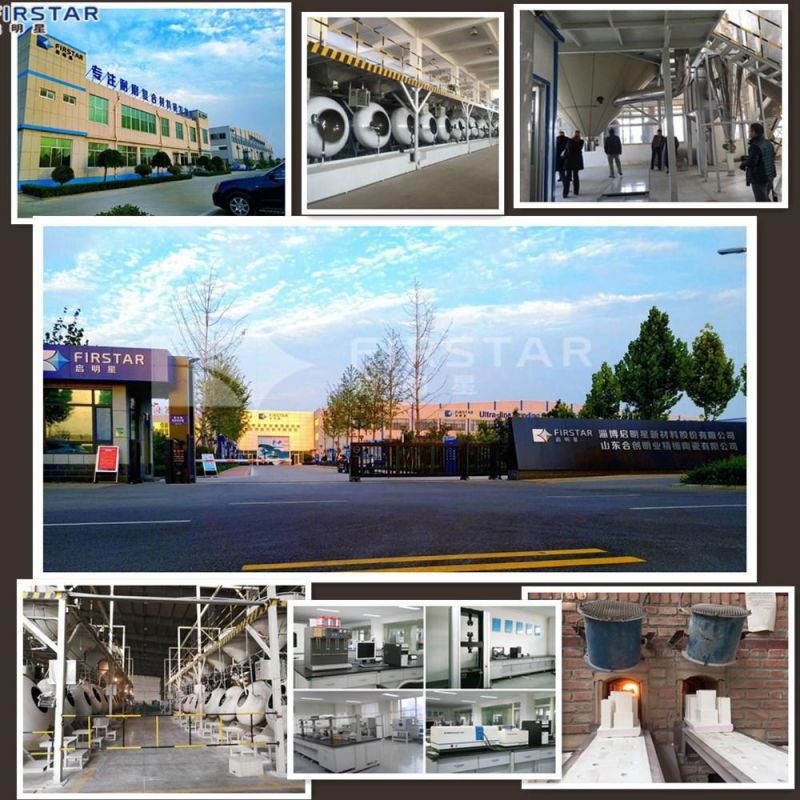

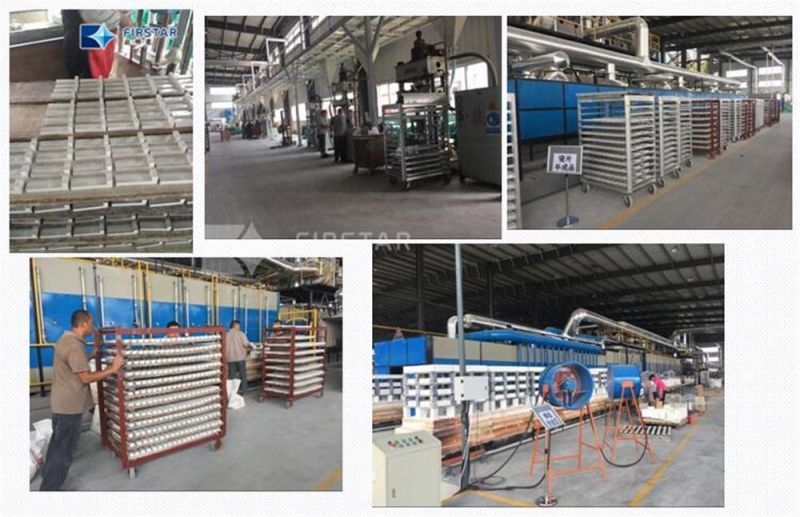

Factory:







Zibo Qimingxing New Material Incorporated Co., Ltd has been founded in 1997 and covered the area of 160mu,having more than 260 staffs in which the technical staffs account for 35%. The company has set up their wholly owned subsidiary, Shandong Ultraming Fine Ceramics Co., Ltd, Shandong Yilaisheng New Material Co., Ltd, Zibo Xingao New Material Research Institute Co., Ltd. The annual production of wear resistant ceramic and grinding media is 18000 tons. Our factory passed the ISO 9001:2015 standard quality management system certificate and successfully listed on the new OTC market in January 2017. The stock code is 870601.

Our products are also exported to many courtries and build long-term business relationship with customers.

Every year we also go to many exhibitions all over the world.

Any inquiry pls feel free to contact us for more communication.
