• Model NO.：1A1, 1F1, 2A2T, 3A1, 4A2, 6A9, 9A3, 11V9, 14A1
• Circular Degree：<1
• Technics：Sinter
• Working Style：Tool Grinding
• Bonded Abrasives：Superabrasives CBN and Diamond Grinding Wheels
• Centreless Grinding Wheels：Cut-off Grinding Wheels
• Peel Grinding Wheels：Flute Grinding Wheels
• Profile Grinding Wheel：Grinding Wheels for Gashing
• Thread Grinding Wheel：Roughing Cutter Teeth Grinding Wheel
• Transport Package：Carton
• Specification：EN 12413
• Trademark：SAILI, BONDFLEX
• Origin：Jiangsu China
• HS Code：68042210
• Production Capacity：25000 PCS,Day

Basic Info.

Model NO. 1A1, 1F1, 2A2T, 3A1, 4A2, 6A9, 9A3, 11V9, 14A1 Circular Degree <1 Technics Sinter Working Style Tool Grinding Bonded Abrasives Superabrasives CBN and Diamond Grinding Wheels Centreless Grinding Wheels Cut-off Grinding Wheels Peel Grinding Wheels Flute Grinding Wheels Profile Grinding Wheel Grinding Wheels for Gashing Thread Grinding Wheel Roughing Cutter Teeth Grinding Wheel Transport Package Carton Specification EN 12413 Trademark SAILI, BONDFLEX Origin Jiangsu China HS Code 68042210 Production Capacity 25000 PCS/Day

Product Description

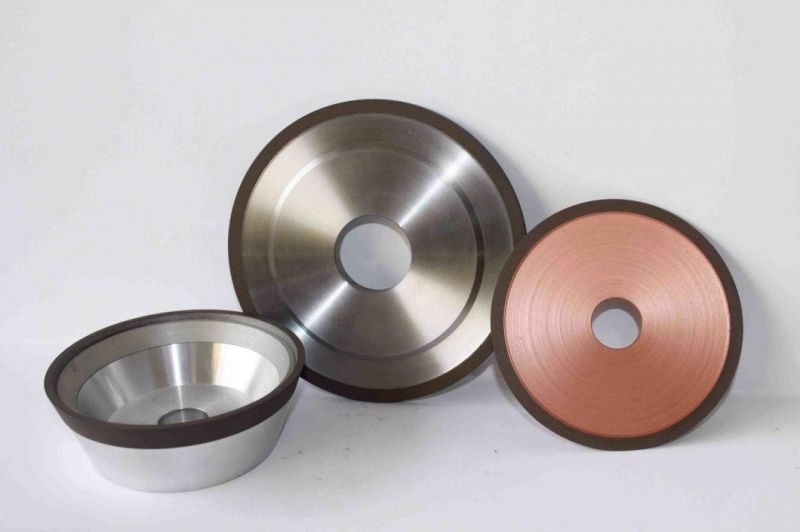

Diamond / CBN wheels for CNC Grinder
Resin bond, high quality diamond, special technology, used on 5-axis CNC grinders for the grinding of tungsten carbide or

HSS alloy steel tools

Diamond / CBN Wheel for Profile Grinding
Profile diamond and CBN wheels for different materials such as hardened steels, tungsten carbide. Sharpness and accuracy, excellent form holding

Diamond / CBN Wheels with Ceramic Body
Resin diamond / cbn wheel with ceramic body, mainly for die industry, excellent heat resistance, deep feed and high stock removal

CBN Double Grinding Disc
CBN double-disc surface grinding wheel for bearing, gears, compressor parts, washer, oil pump parts, Automobile parts etc

Surface and Cylindrical Grinding
Diamond & CBN wheels for precision surface and cylindrical grinding with advanced grindability and long life

Diamond /CBN wheels for Die industry
PG grinding wheel, mainly die industry, Slotting and grooving of metal or nonmetal materials, optical curve grinding. JV Grinding and some other precision grinding

Diamond Wheels with Bakelite Body
Diamond wheel with Bakelite body with good elasticity, used in woodworking industry, free cutting and long life

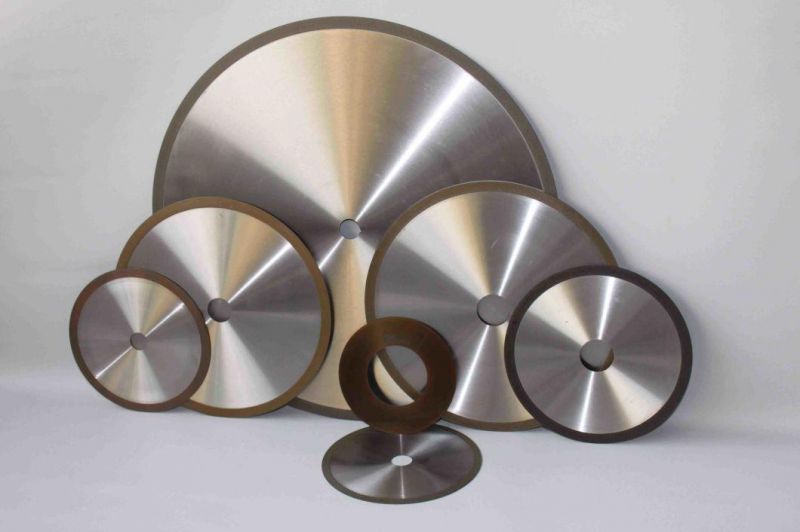

Diamond Cutting wheels
Diamond cutting wheel for tungsten carbide, alloys, quartz, ceramics, glasses, carbon fibre composites, fiberglass etc







CBN wheels for Paper industry
CBN wheels for the grinding of blades used on paper manufactring industry, HSS, hardened steel, alloy steel etc

Wheel for Wood working industry

Fluting Wheels
D1A1R 5 x 1/2 x 1-1/4 D 280 R 125 B 3/8

B1A1R 4 x 3/8 x 38mm CBN 220 R 100 B 1/4

D1FF1R 5 x 3/16 x 1-1/4 D 240 R 125 B 1/4

B1FF1R 6 x 3/16 x 2 CBN 180 R 100 B 1/4

D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°

B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°


D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

Gashing Wheels
FLUTE GRINDING DIAMOND & GASHING WHEELS

D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°

B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°

BALL NOSE FLUTE GRINDING & GASHING WHEELS

D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

Drill Pointing Wheels
BALL NOSE FLUTE GRINDING & GASHING WHEELS

D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°

B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°

DRILL POINTING AND STEP TOOL WHEELS

D11V2 5 x 1-1/4 x 1-1/4 D 280 R 100 B 1/4 W=1/2

B11C9 5 x 3/4 x 1-1/4 CBN 220 R 100 B 1/8 W=1/2

O. D. Clearance

D11V2 4 x 1-1/4 x 1-1/4 D 320 R 100 B 1/4 W=1/4 5°

B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 10°

D11V5 4 x 1-1/2 x 1-1/4 D 320 R 100 B 1/4 W=1/4 30°

B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 30°

CUTTER DIAMOND GRINDING WHEELS

D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8

B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8

D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8 - REINFORCED CORE

B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8 - REINFORCED CORE


D12V9 4 x 7/8 x 20mm D 320 R 125 B 1/16 U=3/8 45°

B12V9 6 x 3/4 x 2 CBN 240 R 100 B 1/8 U=3/8 30°
