Electric Drill Bits Sharpener
Xiamen Bestlink Factory Co., Ltd.- Type：Disc Grinder
- Power Source：Electricity
- Object：Drilling Bit
- Disc(Wheel) Type：Grinding Disc
- Material：Steel
- Working Style：Shaking
Base Info
- Model NO.：EGM75
- Variable Speed：Without Variable Speed
- Usage：for Sharpening Button Bits
- Weight：5kgs
- Transport Package：Wooden Box
- Specification：900X630X1500mm
- Trademark：Bestlink
- Origin：Xiamen, China
- HS Code：84609090
- Production Capacity：1000sets,Month
Description
EGM75Max. Spindle Speed 24000RPM Working air pressure 5-7bar(100 psi) Max. water pressure 4bar(60 psi) Water consumption 2-4L/min Rated power(motor) 3KW Coolant/fushing medium Water Water hose diameter 6mm Weight 200KG Electric power data 1 phase 220V 50Hz 10Amps
* With cooling tank unit:0.2-0.3L/min.
** Customized is available
Pneumatic robot arm button bits grinder AGM18Rotation speed 20000 rpm Motor power 1.5 KW Working air pressure 5-7 bar (100 psi) Air consumption 2.2 m3 / min (80ft3/min) Max. water pressure 4 bar (60 psi) Air hose diameter 19 mm Water hose diameter 6 mm Weight excl. packaging 330.0 Kg Weight incl. packaging 350.0 Kg Transport dimensions 1600*700*1500mm Sound level 92 dB(A)
BESTLINK---Manufacturer of Button Bit Grinding System in China
(1) Grinder (Button Bit Grinding Machine)

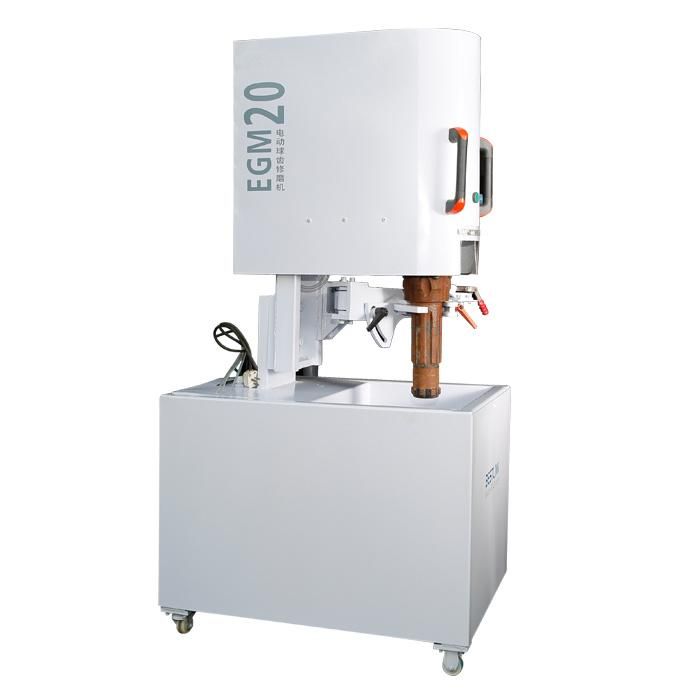

The EGM20 Button Bit Grinder is a high powered tool for worn button bit sharpening. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.
EGN20 semi-automatic grinding machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.
There are more models like BTON200, BTON500, AGM18, etc...are pneumatic models, called air grinder.

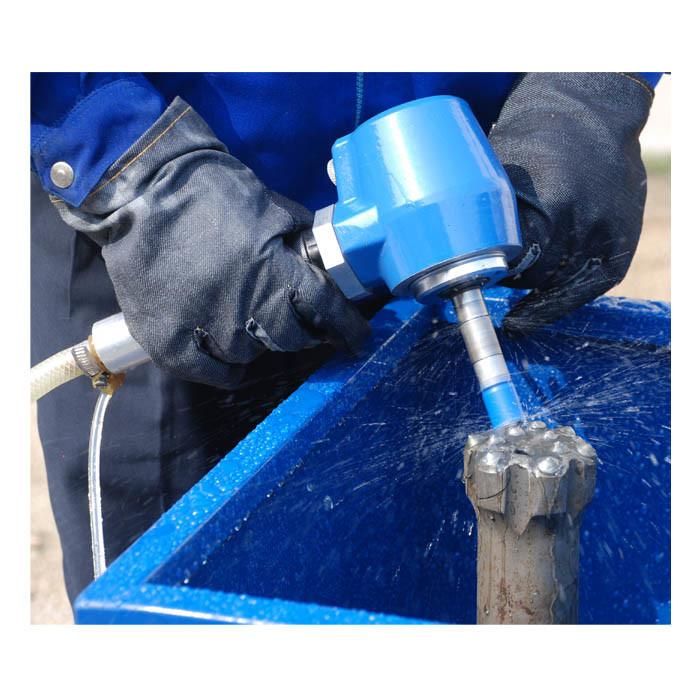

Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.
A full spares back-up service is also available.
(2) Grinding Pin, Grinding Cup and Grinding Wheel
BESTLINK supplies you 4 kinds of grinding cup for your various needs.

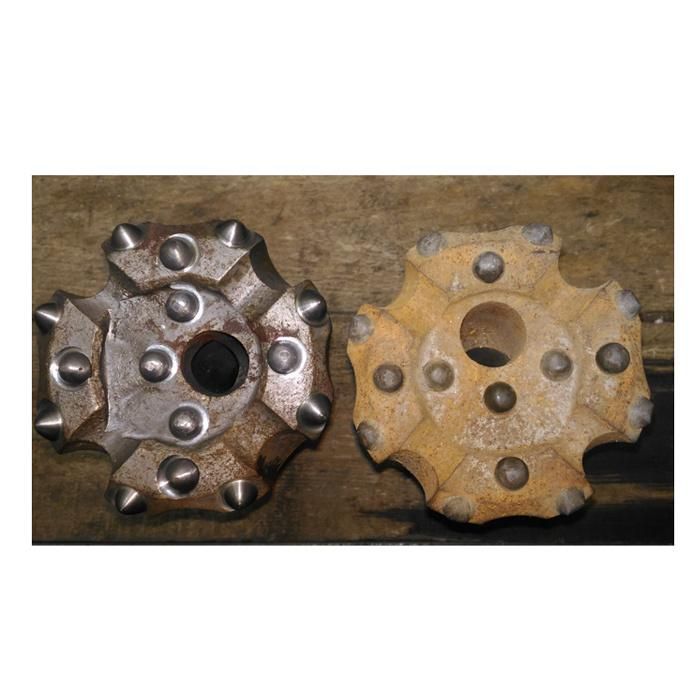

The Diamond grinding cup is a perfect tool for grinding your broken button bits, to prolong its lifespan.
We have different model: 8mm shank model, 9mm shank model, internal hex drive model and 55-drive model. Our grinding cup can be used for grinding 6mm-25mm button size. Other sizes are available on request.
Benefits for using BESTLINK GRINDING SYSTEM:
1). Low weight-----makes it's easy operation.
2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.
3). Quick chuck-----easy to changing grinding cups without special tools.
4). Cooling system-----a recycling cooling system makes a safe and sustaining working.
* With cooling tank unit:0.2-0.3L/min.
** Customized is available
Pneumatic robot arm button bits grinder AGM18
BESTLINK---Manufacturer of Button Bit Grinding System in China
(1) Grinder (Button Bit Grinding Machine)
The EGM20 Button Bit Grinder is a high powered tool for worn button bit sharpening. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.
EGN20 semi-automatic grinding machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.
There are more models like BTON200, BTON500, AGM18, etc...are pneumatic models, called air grinder.
Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.
A full spares back-up service is also available.
(2) Grinding Pin, Grinding Cup and Grinding Wheel
BESTLINK supplies you 4 kinds of grinding cup for your various needs.
The Diamond grinding cup is a perfect tool for grinding your broken button bits, to prolong its lifespan.
We have different model: 8mm shank model, 9mm shank model, internal hex drive model and 55-drive model. Our grinding cup can be used for grinding 6mm-25mm button size. Other sizes are available on request.
Benefits for using BESTLINK GRINDING SYSTEM:
1). Low weight-----makes it's easy operation.
2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.
3). Quick chuck-----easy to changing grinding cups without special tools.
4). Cooling system-----a recycling cooling system makes a safe and sustaining working.
