High Viscosity Conice Horizontal Bead Mill
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Angle Grinder
- Materials：Stainless Steel, Zirconia
- Application Industry：Food, Pharmaceutic, Chemical
- Lead Time：30-40days
- Transport Package：Wooden Case
- Specification：EZW-14; EZW-16
Base Info
- Model NO.：EZW
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：8474390000
- Production Capacity：40-12000L
Description
Basic Info.
Model NO. EZW Trademark ELE Origin Shanghai, China HS Code 8474390000 Production Capacity 40-12000LProduct Description

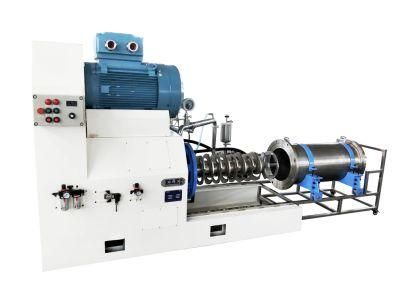

Horizontal Bead Grinding Mill (EZW)Features:
1,This is our most advanced type Horizontal Bead Mill, suitable for high viscosity material grinding.In Wet grinding it mainly used for materials with weak liquidity&high viscosity,with conice grinding chamber,different end linear velocity will form extrusion-type dischargeing.It is the essential model for gravure printing ink,offset printing ink,screen printing ink production.

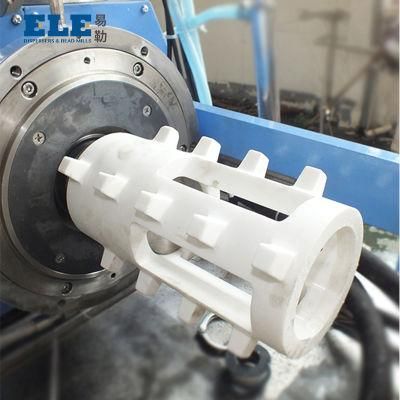

2,It especially enjoys high reputation in the process of high viscosity,high solid content&high refiningmaterials.With internal and external double pin structure,higher grinding efficiency and more uniform fineness distrubution.
3,It adopts high viscosity gear pump specially,which is developed on basis of equipment required flow and pressure.
| Model | Chaber Volume/L | Power/kw | Speed/rpm | Flow L/H | Dimension/mm | Weight/kgs |
| EZW-14 | 14 | 37 | 860 | 60-180 | 1700*670*1860 | 1230 |
| EZW-16 | 16 | 55 | 360 | 100-260 | 1960*1450*1640 | 210 |
