• Working Style：High-speed universal
• Variable Speed：With Variable Speed
• Size：910*770*1065
• Transport Package：Wooden Box
• Trademark：YY
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Working Style High-speed universal Variable Speed With Variable Speed Size 910*770*1065 Transport Package Wooden Box Trademark YY Origin China Production Capacity 100set/Month

Product Description

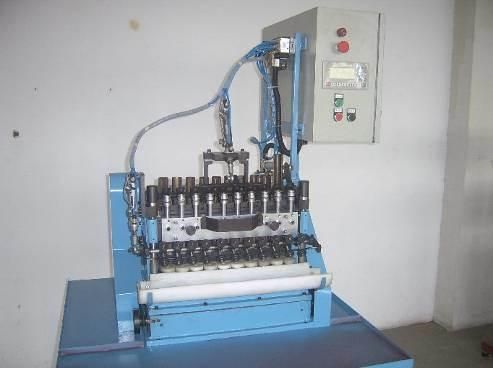

Carbide wire die Ten head lapping machine(BLJX-01) Machine purposeThis machine is especially designed for polish the carbide wire drawing dies reduction angle and back relief angle.
This new generation lapper have more efficient and accurate capability with ten lapping head working together , meanwhile it is easy to operation and low cost of maintance .
The working range is wild from 0.10mm to 5.5mm which adequate for polishing both wet drawing dies and dry drawing dies .
Equipment parameterswire dies case dimension : standard as Ø28X15 and Ø42X28 ,tailor design according to your request also available
Lapping angle capability : according to your request , typically from 7°to 30°
Pin Size and working range :(One machine have one type of pin plate)
ø3*200mm ( working range:0.10~1.50)
ø5*200mm ( working range :0.5~3.0)
ø8*200mm ( working range :2.5~5.5)
Equipment dimension : :910*770*1065( Working table :1000*1000*850)
CharactersHigher efficient with tens dies lapping one time
Automatic feeding and PLC control
Easy for operation and lower maintance cost
Stable quality performance
