• Model NO.：EGM
• Lead Time：20-40days
• Usage：Industrial
• Transport Package：Wooden Case
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：200-2000L

Basic Info.

Model NO. EGM Lead Time 20-40days Usage Industrial Transport Package Wooden Case Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000L

Product Description

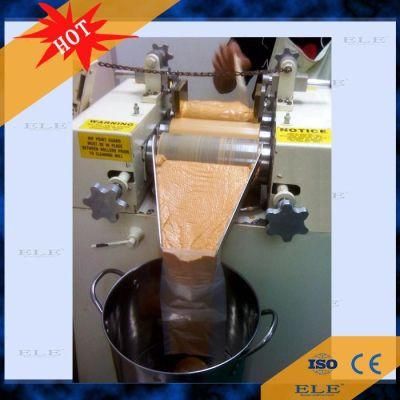

Three Roller Mill (EGM)

Working principle:

EGM three-roller wet-grinding mill suits cases of high viscosity, low fluidity, high requirements on fineness. Three-roller mill developed by ELE Company, three horizontal high-hardness & cold casting alloy rollers are driven by motor.

Features:

1, large output, flexibility, easy operation, safety performance
2, three rollers being independent to each other benefit to cleaning
3, two rollers fastened, one roller separated--for mixing
4, three rollers fastened_for dispersion and discharge



Specifications:

Model	Roller Diameter (mm)	Power (kw)	Roller Length (mm)	Low Speed (rpm)	Medium Speed (rpm)	High Speed (rpm)	Discharge Outlet Height (mm)
EGM-65	65	0.75	136	26	70	145	220
EGM-150	150	2.2	300	34	78	181	530
EGM-260	260	7.5	675	23	64	183	530
EGM-405	405	15	810	14	42	130	760
