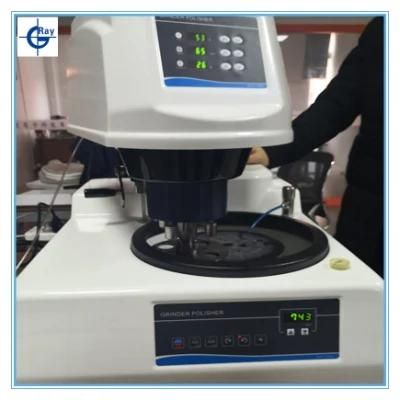

Automatic Metallographic Sample Grinding Machine for PCB

Dongguan Dinglu Electronic Technology Co., Ltd.
  • Type：Disc Grinder
  • Power Source：Electricity
  • Object：PCB Microsection
  • Application：PCB ,SMT,FPC and Others
  • Disc(Wheel) Type：Grinding Disc
  • Material：Steel

Base Info

  • Model NO.：RAY-Mopao
  • Working Style：High-speed universal
  • Disc Diameter：10"
  • Variable Speed：With Variable Speed
  • Plate：Single or Double
  • Transport Package：1 Set, Wooden Case
  • Specification：10"
  • Trademark：Ray Shine
  • Origin：China
  • HS Code：8486209000
  • Production Capacity：10 Set, Month

Description

ModelRAY-Mopao2Grinding plate Dia254mm (10")Grinding Plate rotation speed50-1000rmp/min or 150rmp/min or 300rmp/minGrinding Head Speed5-100rmp/minLoading Range5-60NSample Dia30mmInput power1.3kwWeight93kgDimension790*566*677mm Usage

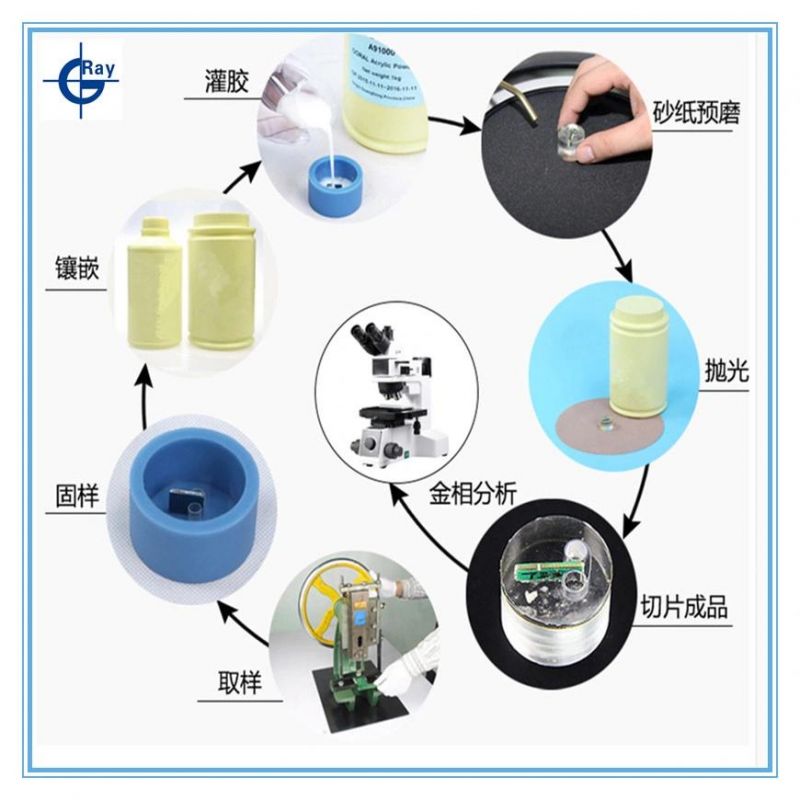

It is used to mull and polish the micro slices of the metallographic analysis system which can make slices smooth and lucency enough for further analysis which is used for PCB,IC boards.

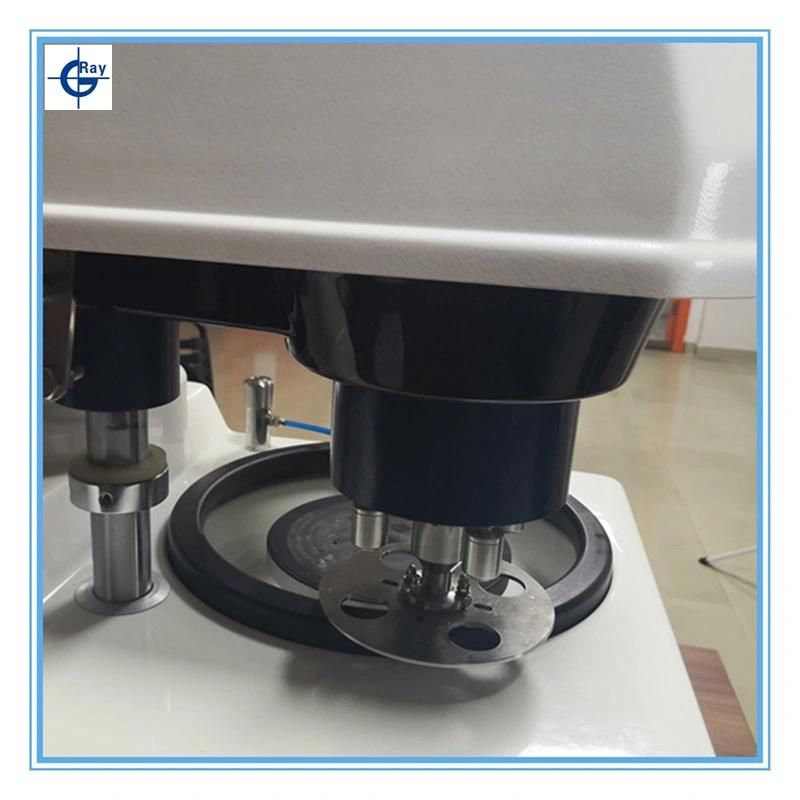

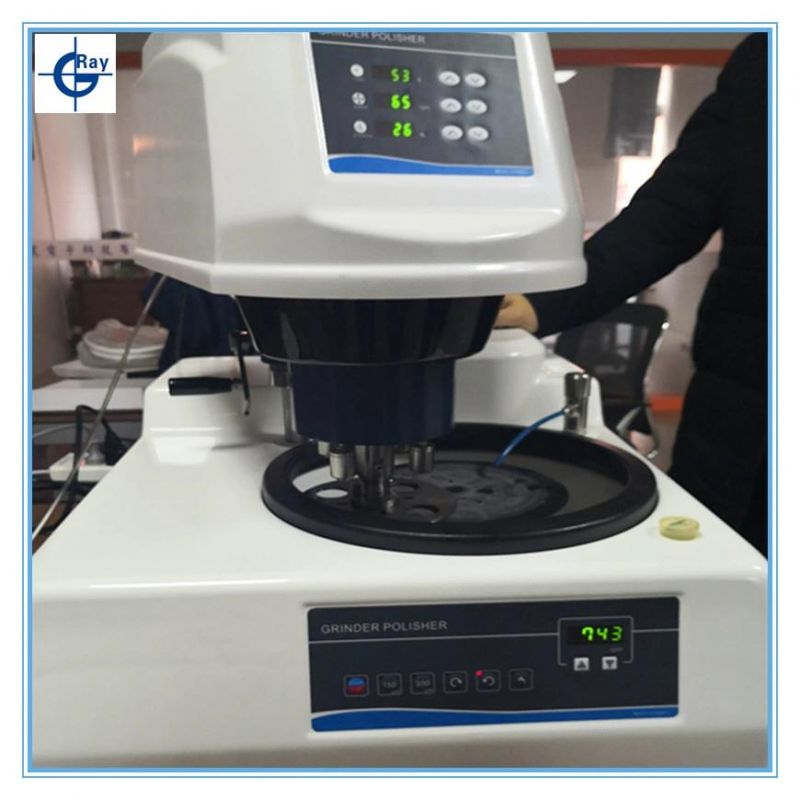

Automatic Metallographic Sample Grinding Machine for PCB



 Features

It adopts high quality actuator and motor which achieves vibration noise low and life long.

The mechanical design is rational, so the plate circumgyrates stably.

The rotating speed can be changed steplessly, and in digital display.

Water and electricity is separated which makes our system safe and reliable.

Conform to IPC-TM-650Rev.DNO.2.1.1 1998 standard.

Conform to GB/T4677-20028.3 standard

Automatic Metallographic Sample Grinding Machine for PCB
Automatic Metallographic Sample Grinding Machine for PCB

 Company Introduction
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film  researching, manufacturing, and selling and technology support.
Automatic Metallographic Sample Grinding Machine for PCB
Automatic Metallographic Sample Grinding Machine for PCB

Automatic Metallographic Sample Grinding Machine for PCB

 Automatic Metallographic Sample Grinding Machine for PCB


FAQ:



1. The machine use electricity ?

----Yes, need electricity  and air supply


2. Can you add more function?

----Yes, we can customized according to your requirement.


3.What's your nearest port?

---Shenzhen port
