Furniture Decorative Glass Automation Mirror Horizontal Glass Polishing Beveling Machine Sale
Qingdao Toyo Industry Co., Ltd.- Type：Bench Grinder
- Power Source：Electricity
- Object：Milling Cutter
- Application：Glass
- Disc(Wheel) Type：Grinding Disc
- Material：Metal
Base Info
- Working Style：High-speed universal
- Power：13kw
- Minimum Processing Size：40*40mm
- Maximum Processing Size：2000*2000 mm with Extension Table
- Speed：0-4m,Min
- Voltage：380V, 50Hz, 3 Phrase,220V, 60Hz
- Certification：CE
- Structure：Horizontal
- Glass Edging Machine Type：Glass Beveling Machine
- Grinding Head Number：8
- Condition：New
- Control System：Manually
- Glass Washing Machine Type：N,a
- Transport Package：Container

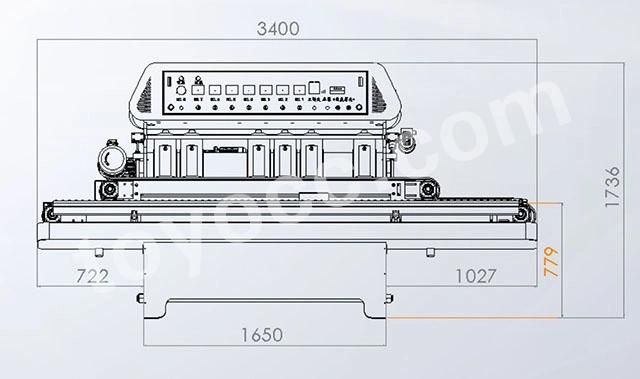

- Specification：3400*1000*1730mm
- Trademark：TOYOCC
- Origin：China
- HS Code：8464201000
- Production Capacity：10000pieces,Year
Description
Features
- 1-year guarantee
- 20-year service life of the motor
- 3000-meter service life of the grinding wheels
- Workable for glass sheet and ceramic tile
- Rail is cast iron and the machine body steel plate is integrated, without welding
Overall Review
Horizontal Beveling Machine220V, 60HZ, 3 Phrase
220V, 60HZ, 3 Phrase

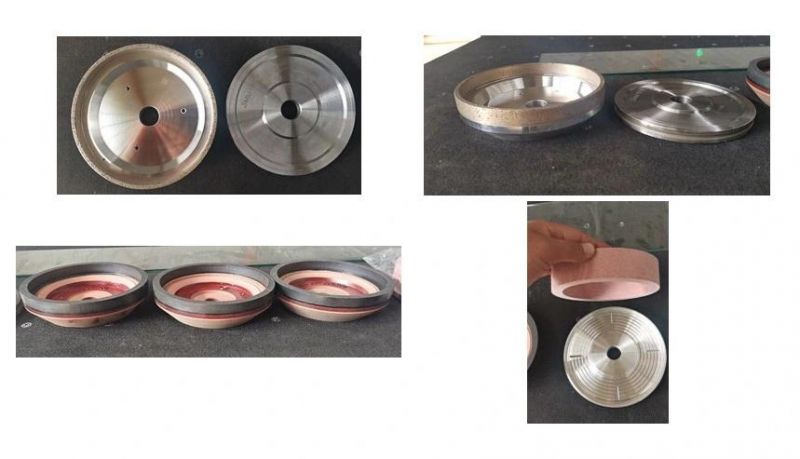

Layout of the wheels
| Position 1 | Position 2 | Position 3 | Position 4 | Position 5 | Position 6 | Position 7 |
| Diamond Wheel | Diamond Wheel | Resin Wheel | Resin Wheel | Resin Wheel | Buffing Wheel | Buffing Wheel |

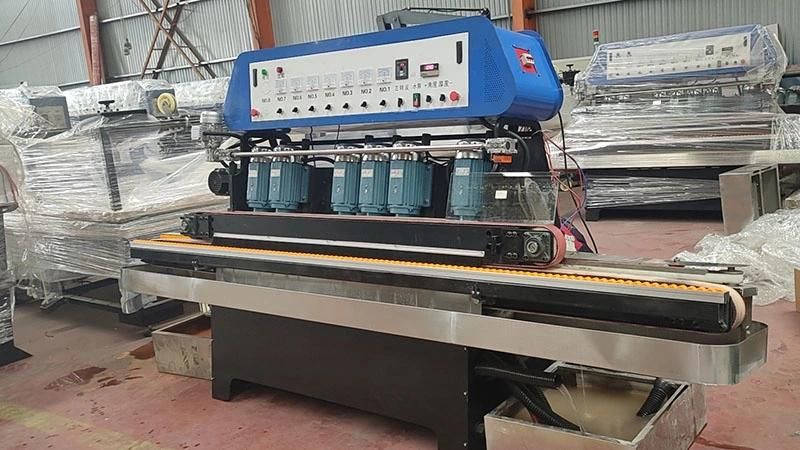

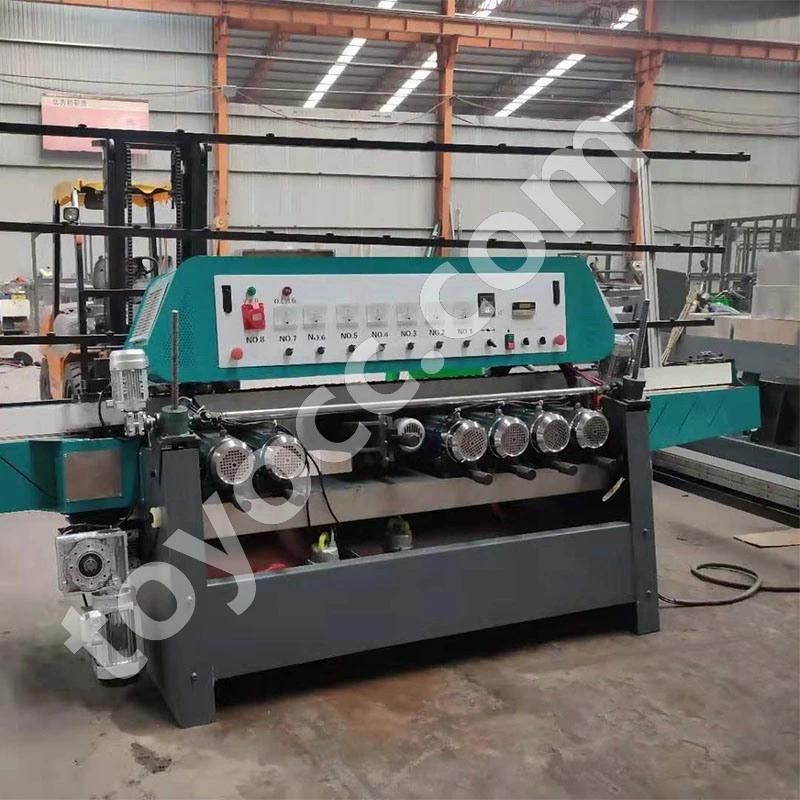

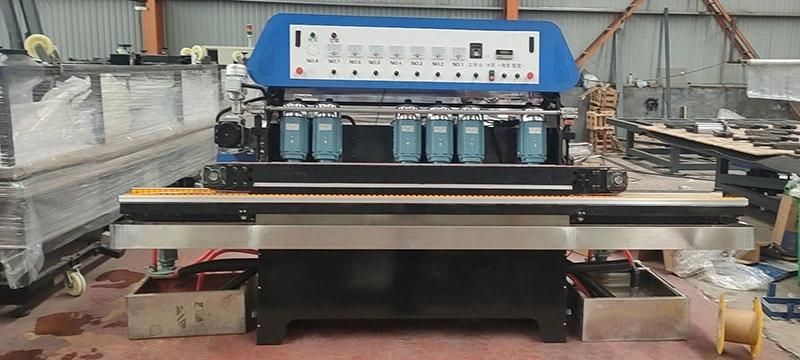

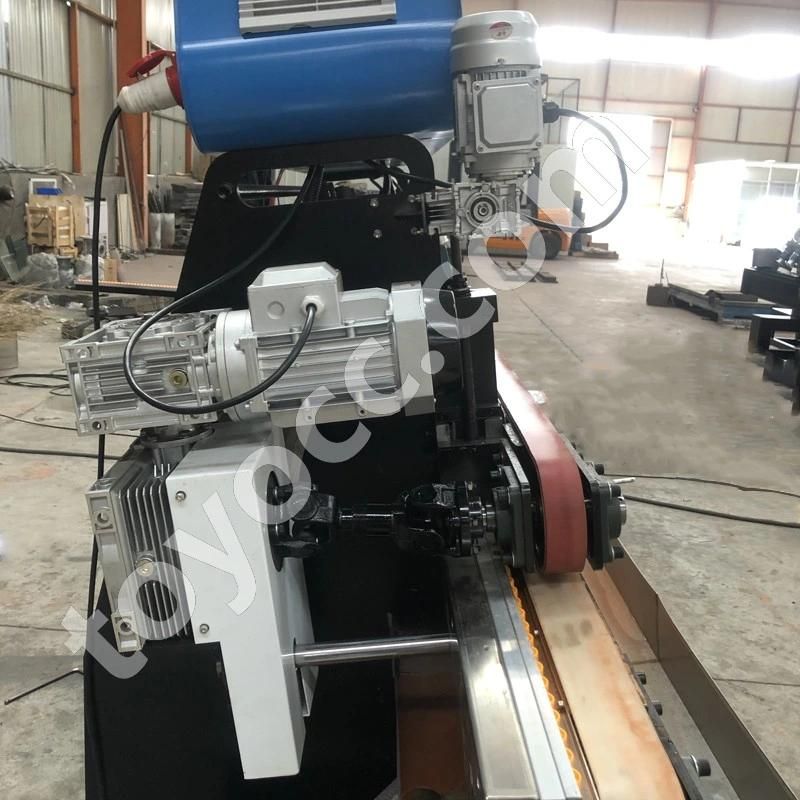

Machine Pictures
Daily Maintenance
1. Holding the tooth surface of the back of the timing belt requires three times of lubricating grease, otherwise the normal service life of the machine will be affected due to the premature wear of the front and rear beam guide working surfaces. Each time you fill the lubricating grease, you must open the timing belt of the machine to the tooth surface. Just rotate the timing belt 2 turns. 2. When clamping the glass, the clamping force should be appropriate. Too loose will affect the grinding quality. Too tight will increase the load on the machine, which will cause jitter and crawling. It is also easy to crush the glass when thinning the glass. The clamping force can be tested with a slightly larger glass clamp on the machine.That is to say: clamp the glass in the middle of the machine, and use both hands to move the glass when the machine is stopped, and feel that the clamping force is adjusted to just when both hands cannot move.
3. Note that after replacing the new grinding wheel, rotate the motor forward and backward handle clockwise to back out of the parallel grinding line to prevent the glass from damaging the grinding wheel.
4. It is recommended to replace the cerium oxide polishing coolant once a month. The polishing effect is not good due to wool generated during the polishing of the wool wheel.

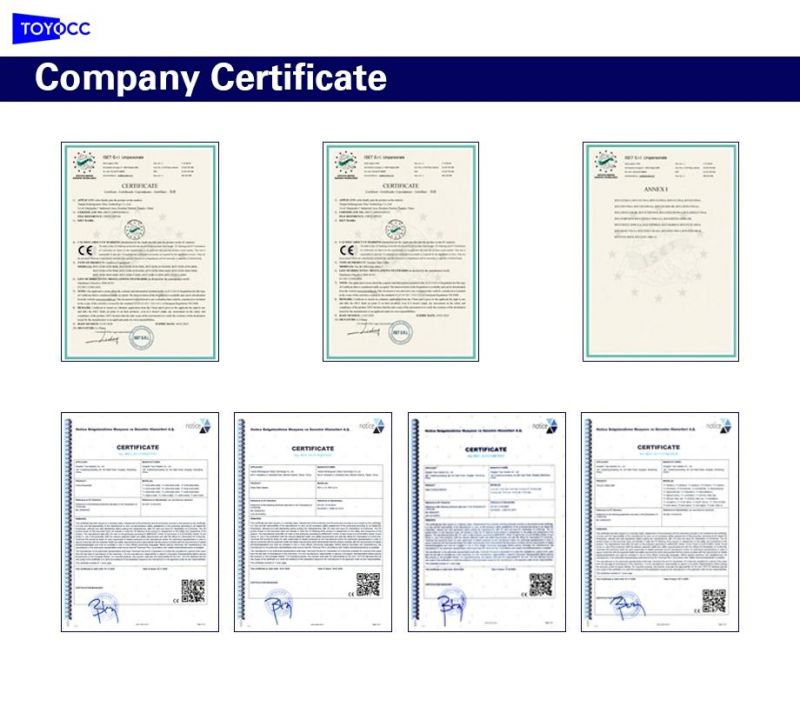

CE Certification

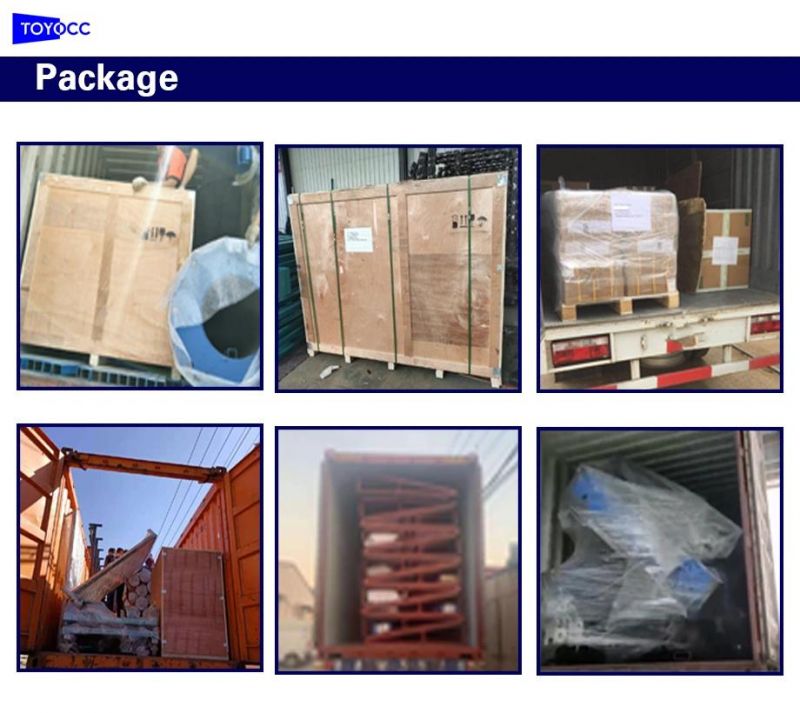

Packing/Loading Pictures

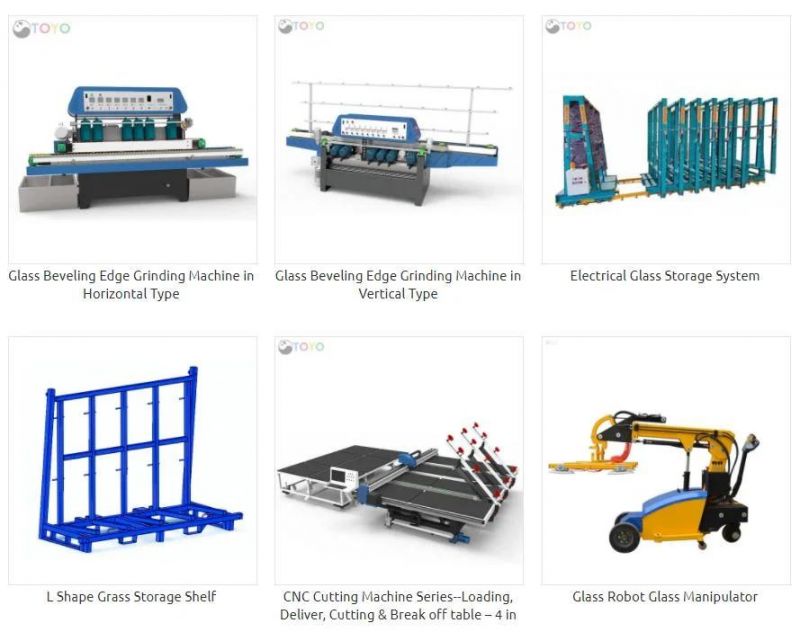

Main products
