• Model NO.：Cosmetic Grade
• Transport Package：Bag
• Specification：0-2 micron
• Trademark：SIGNI
• Origin：Shanghai
• HS Code：6804221000
• Production Capacity：500000000CT,Year

Basic Info.

Model NO. Cosmetic Grade Transport Package Bag Specification 0-2 micron Trademark SIGNI Origin Shanghai HS Code 6804221000 Production Capacity 500000000CT/Year

Product Description

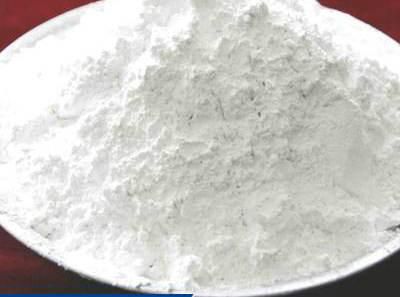

Synthetic Diamond Powder



Product Characteristics:

1.Top-quality single crystal diamond materials,technical date such as static pressure strength,

   abrasive performance and thermal stability are higher than standards of the industry;



2.Round and smooth crystal;fewer absorbed particles on powder surface;no bar-or plate-shape particle;



3.Extremely narrow range of granularity distribution and excellent granularity control;



4.Special processing techniques enable tne content of impurities to be about 1/100000.

Recommended Applications:

The products are suitable for application in cosmetic industries and industries that have high demand on grinding and polishing, such as the precision equiepment industry,as well as in sectors that are strict with impurity content,like electroplating and production of polycrystalline diamond compacts.

Polycrystalline Diamond Powder Description

SIGNI detonation polycrystalline diamond (PCD) is similar with natural Carbonado in the structure. Therere thousands of micro crystallites size of 3-10nm integrated together into polycrystalline structure through unsaturated bond. PCD has many more cutting surfaces, resulting in the higher removal rates. It also has good self-sharpening properties. The polycrystalline structure will open every time new sharp edges introduced by releasing an outer layer of dull crystallites. The polycrystalline diamond can lap and polish any materials fast while produce the smoothest surface without scratches.Specifications:

Type	D10(μm)	D50(μm)	D90(μm)	D95(μm)
PCD0-1	≥0.32	0.45-0.55	≤0.95	≤1.20
PCD0-2	≥0.50	0.90-1.10	≤2.00	≤2.30
PCD1-3	≥1.10	1.80-2.10	≤3.50	≤3.80
PCD2-4	≥1.80	2.70-3.10	≤4.40	≤4.80
PCD3-6	≥2.90	4.00-4.50	≤5.90	≤6.60
PCD4-8	≥3.90	5.20-5.90	≤9.00	≤10.00
PCD5-12	≥4.80	7.50-8.50	≤13.00	≤15.00

Features: High removal rates and good self-sharpening properties can achieve superior finishes to any hard materials.
High purity, impurity content below 0.5%.
High wearability and long working life.Applications:Used as high precise abrasives:Sapphire process, such as back lapping and polishing of sapphire-based LED epitaxial wafers Lapping and polishing of magnetic heads, hard disk, CMOS chips, ceramics, glass, hard alloy, optics lens, etcUsed as additives for the electroplating films of metal molds, tools, metal parts to improve their wear resistance, surface hardness and service life
We are China SIGNI Polycrystalline Diamond Powder manufacturer offer best Polycrystalline Diamond Powder OEM, ODM,service.
