Three Mill Pigment Paste
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type:Angle Grinder
- Power Source:Electricity
- Object:Milling Cutter
- Application:Chemical
- Disc(Wheel) Type:Grinding Disc
- Material:Metal
Base Info
- Model NO.:EGM
- Working Style:High-speed universal
- Disc Diameter:65mm
- Variable Speed:With Variable Speed
- Transport Package:Wooden Case
- Specification:EGM
- Trademark:ELE
- Origin:Shanghai, China
- HS Code:879820090
Description
Basic Info.
Model NO. EGM Working Style High-speed universal Disc Diameter 65mm Variable Speed With Variable Speed Transport Package Wooden Case Specification EGM Trademark ELE Origin Shanghai, China HS Code 879820090Product Description

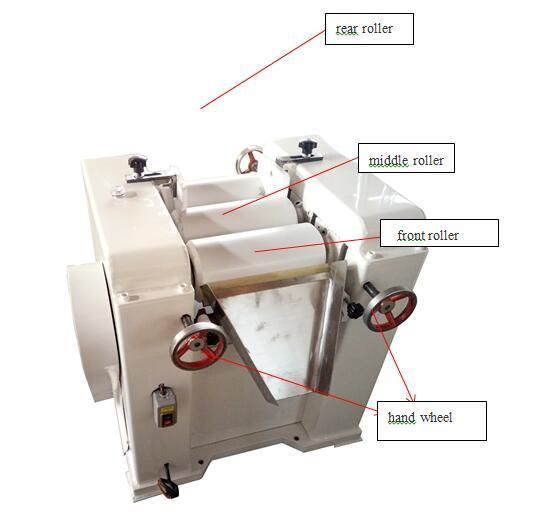

EGM-65 Three Roller Mill for InkDescription
EGM Three- roller Mill is a kind of wet-grinding machine with high hardness, wear resistant
features and cooling facility suitable for continuous or cyclical process. The machine applies to materials with various viscosity and can get ideal particle size in shorter time, more efficiently. It is easy to start with low energy consumption rate and high gri nding effect. widely use in Ink, Paint, Coating, Pigment, Soap, Artificial Leather, Plastic, Grease and Chocolate etc..
Features
1) large output, flexibility, easy operation, safety performance
2) three rollers being independent to each other benefit to cleaning
3)two rollers fastened, one roller separated--for mixing
4) three rollers fastened-for dispersion and discharge
Technical Parameters
Model | Roller Diameter (mm) | Power (kw) | Roller Length (mm) | Low Speed (rpm) | Medium Speed (rpm) | High Speed (rpm) | Discharge Outlet Height (mm) |
EGM-65 | 65 | 0.75 | 136 | 26 | 70 | 145 | 220 |
