High Zirconia Ceramic Ball/Bead/Media as Grinding Ball for Ball Mill
Pingxiang Chemshun Ceramics Co., Ltd.- Material:Zirconia
- Usage:Grind, Polishing
- Processing Type:Rolling Type
- Size:Small
- Color:White
- Customized:Customized
Base Info
- Model NO.:chemshun ceramics
- Item:Zirconia Grinding Balls
- Materials:Zirconia
- Type:High-Zironia
- Diameter:D0.1~D40 mm
- Grinding Situation:Dry Grinding , Wet Griding
- Feature:High Hardness, High Density and Anticorrosion
- Application:Ball Mill, Pebble Mill ,
- Field:Ceramic,Metallurgy, Glass, Porcelain, Enamel
- OEM:Accept
- Transport Package:by Bags+ Fasten on Pallet.
- Specification:D0.1~D20 mm
- Trademark:Chemshun Ceramics
- Origin:P. R. China
- HS Code:69091200
- Production Capacity:10000ton,Year
Description
Basic Info.
Model NO. chemshun ceramics Item Zirconia Grinding Balls Materials Zirconia Type High-Zironia Diameter D0.1~D40 mm Grinding Situation Dry Grinding , Wet Griding Feature High Hardness, High Density and Anticorrosion Application Ball Mill, Pebble Mill , Field Ceramic,Metallurgy, Glass, Porcelain, Enamel OEM Accept Transport Package by Bags+ Fasten on Pallet. Specification D0.1~D20 mm Trademark Chemshun Ceramics Origin P. R. China HS Code 69091200 Production Capacity 10000ton/YearProduct Description
High Zirconia Ceramic Ball/Bead/Media as grinding ball for Ball MillDescription:
The Y-TZP zirconia ceramic balls have 30-50 times higher wear-resistance as glass beads,5 times higher as zirconium silicate beads and 6-8 times higher as Al2O3 beads. Beacuse of the high density and excellent grinding efficiency of our TZP beads, they greatly apply to grinding and dispersing high viscosity materials

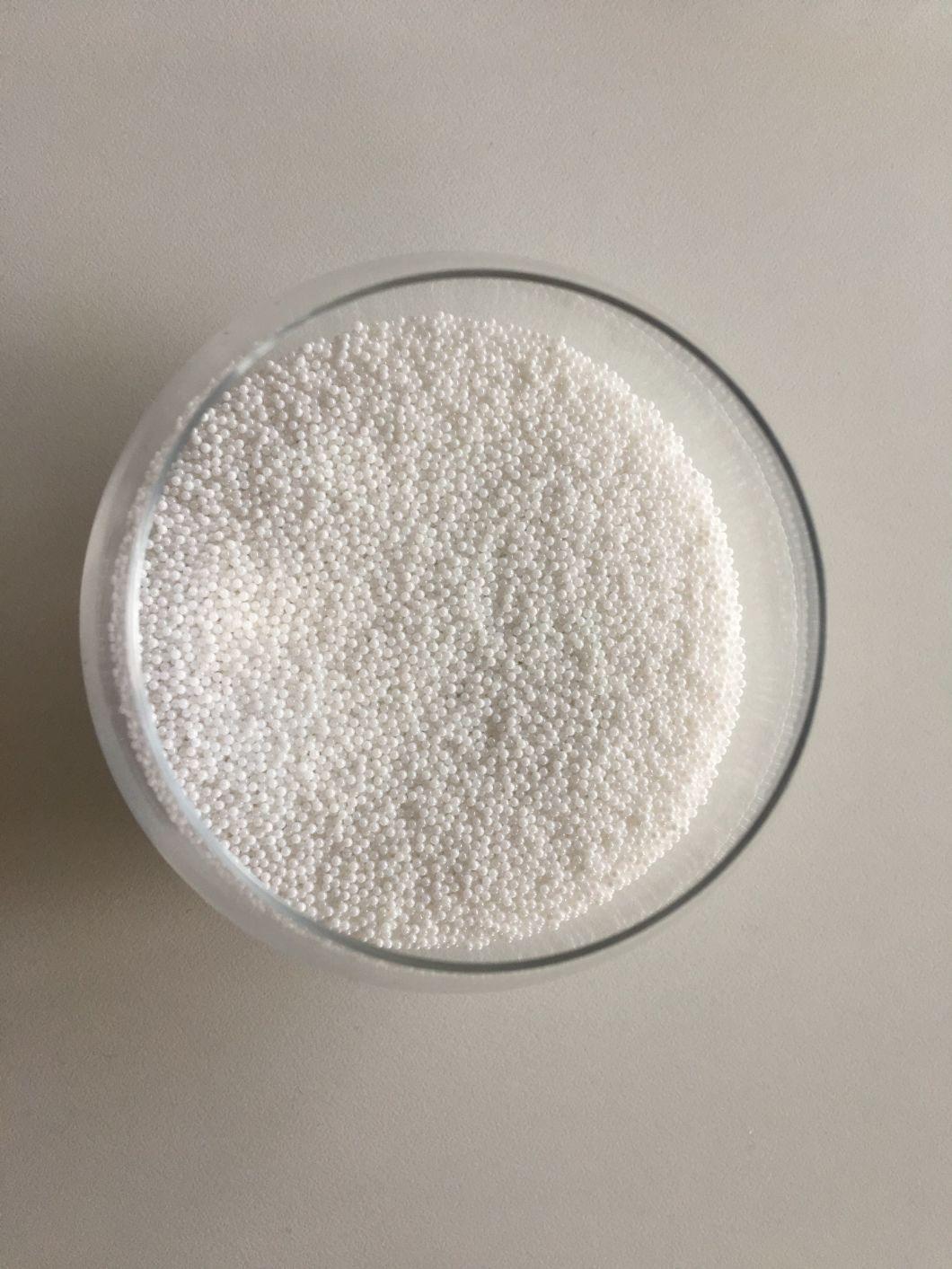

Photos:
Property:
- With high strength and high toughness, good wear resistance, high temperature resistance, corrosion resistance, high stiffness, permeability, electrical insulation.
- Preventing material from contamination because of its extreme low wear rate.
Item | Value |
Oxide Proportion | ZrO2:94.8%±0.2% ; Y2O3: 5.2%±0.2% |
Specific Density | >=6.00g/cm3 |
Bulk Density | >=3.7g/cm3 |
Vickers Hardness | >1200HV |
Compressive Strength | >2.0KN(Φ2mm) |
Self Consumption | <0.5ppm/h |
Roundness | >=0.96 (Xmin/Xmax) |
Surface Glossiness | Smooth |
Color | white |
Diameter range | 0.1mm-55mm it can be customized. |
Package:
25KGS per drum or bag, 1 ton per wooden case.
