• Model NO.：RSY-X
• Working Style：High-speed universal
• Disc Diameter：Customized
• Variable Speed：With Variable Speed
• Power：2.3W
• Minimum Processing Size：300*300 mm
• Maximum Processing Size：2000*2000 mm
• Transport Package：Container
• Specification：2800*1250*1270 mm
• Trademark：Toyo
• Origin：China
• HS Code：8464201000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. RSY-X Working Style High-speed universal Disc Diameter Customized Variable Speed With Variable Speed Power 2.3W Minimum Processing Size 300*300 mm Maximum Processing Size 2000*2000 mm Transport Package Container Specification 2800*1250*1270 mm Trademark Toyo Origin China HS Code 8464201000 Production Capacity 10000pieces/Year

Product Description

TYRSY-08A/08B Multifunctional Edge Grinder

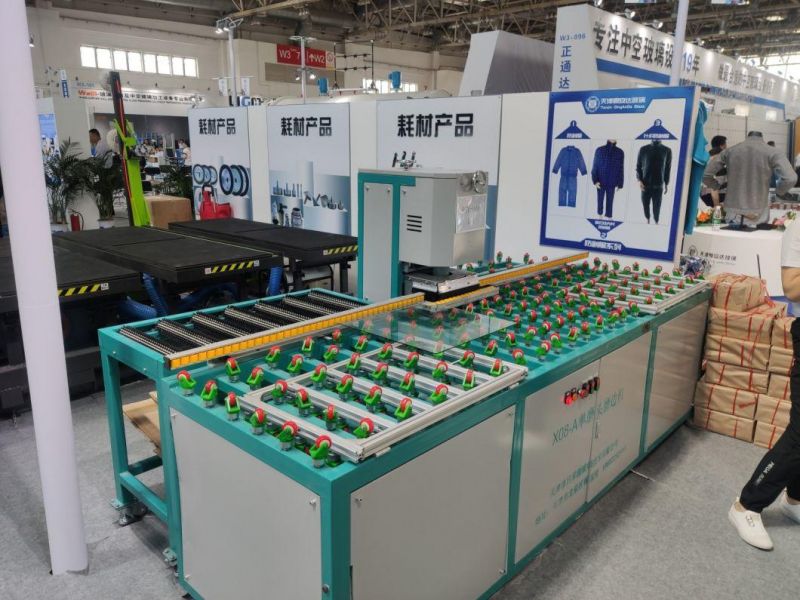

TYRSY-08A

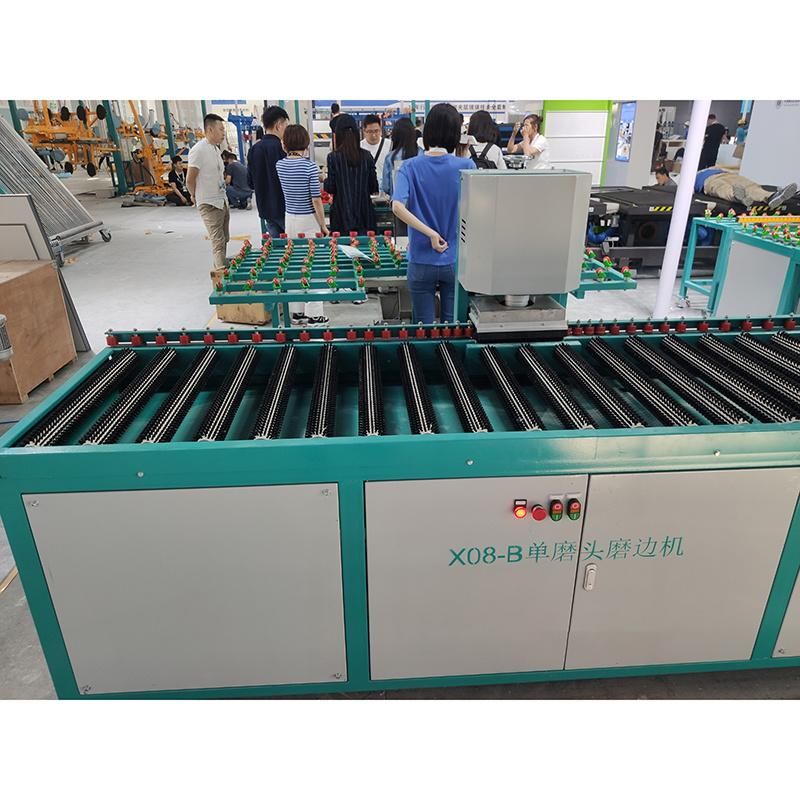

TYRSY-08B


Description

This series machine is especially suitable for processing glass rounded corners and car windshields. Widely used for different glass specifications without manual adjustment repeatedly. This machine could be connected with the washing machine from its front or side position, therefore to make the processing line more smoothly and result in a manpower and time saving. What is more, it has zero influence to the existing connected four-side grinding and other mechanical equipment. This series machine solves the problems such as rough edges during glass processing, easy cracking in high temperature furnace, and secondary chipping.

Features

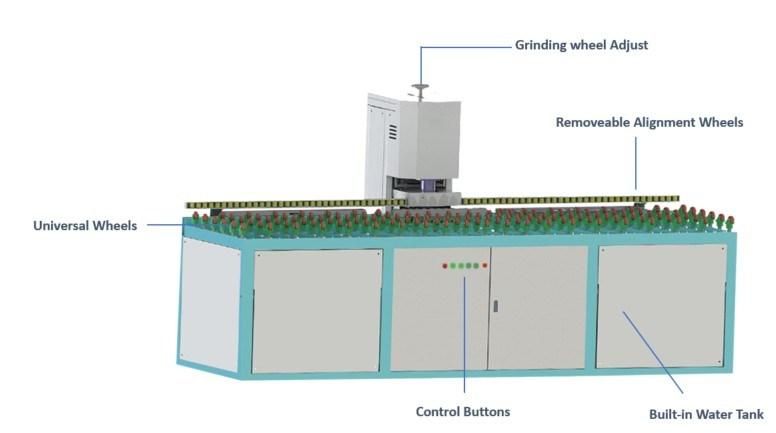

• Universal wheels and roller brushes types could meet your different business needs
• Easy attached to the washing machine
• Extensible platforms give you more flexibilities on your glass size
• Workable to the special-shaped edging, like the straight-edged, rounded, triangular, wavy and other shapes
• Adjustable grinding wheel and removeable alignment wheels

Specification


Model	RSY-08A	RSY-08B
Power	2.3KW	2.3KW
Overall size	2840*1250*850mm	2800*1250*850mm
Adaptive glass thickness	3mm-12mm	3mm-12mm
Minimum processing size	280*280mm	300*300mm
Maximum processing size	2000*2000mm	2000*2000mm

Pictures Showing




Frequently Asked Questions

Q: Your machine is for rough grinding or polishing?
A: Our edging machine is for rough grinding, suitable for chamfering before the glass is tempered and insulated.

Q: Is your machine suitable for the irregular shapes make?
A: Our edging machine cannot grind the special shaped glass, because there is a row of standard wheels on the back of the platform. Our machine named TYRSY-08B is workable to the irregular shaped glass, like the triangles, waves, circles, etc.

Q: What structure does the grinding wheel of this edging machine use?
A: This edging machine uses a grinding wheel structure similar to a four-side grinding machine. It has two resin wheels or two diamond wheels. The two wheels are placed one on top of the other to form an included angle. The glass passes through the angles made by the two wheels.

Q: How long can the grinding wheels be used?
A: Based on working eight hours a day, the resin wheel can be used for more than one month, and the diamond wheel can be used for six months.
