• Model NO.：PZG
• Power：1.5 Kw or 2.2 Kw
• PU Lining Thickness：20mm
• Weight：260 Kg
• Size：1020*1020*860mm
• Transport Package：Wooden Box
• Specification：100L
• Trademark：HUMO
• Origin：Zhejiang, China
• HS Code：84639000
• Production Capacity：5000

Basic Info.

Model NO. PZG Power 1.5 Kw or 2.2 Kw PU Lining Thickness 20mm Weight 260 Kg Size 1020*1020*860mm Transport Package Wooden Box Specification 100L Trademark HUMO Origin Zhejiang, China HS Code 84639000 Production Capacity 5000

Product Description

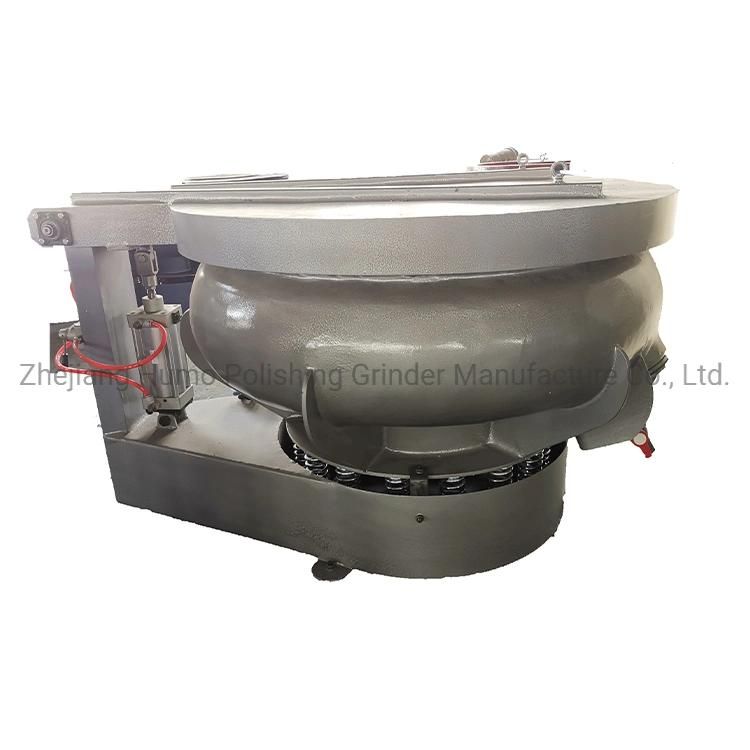

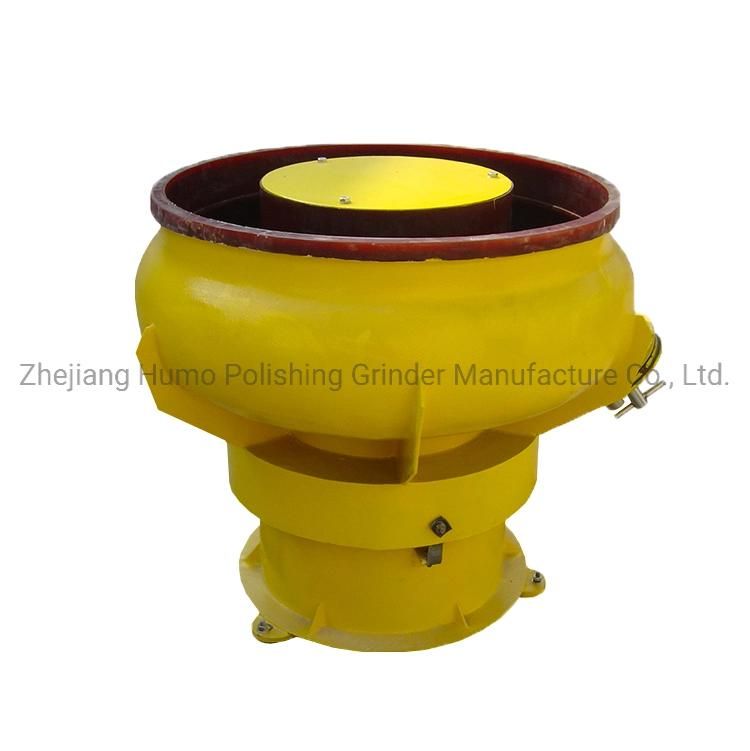

Vibratory finishing machine with curved wall bowl
Our vibratory polishing machines PZG (A) are suitable for deburring and metal polishing of aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts. Aluminum polishing and steel polishing are a typical application.


Vibratory Polishing Machine Feature:

• Digital process timer
• Low profile design
• Wide opening for big size parts
• Wear resistant PU lining from Dow Chemicals

Vibratory Polishing Machine Optional Items:

• Noise Cover
• Compound Dosing Pump
• Variable Frequency Drives
• Control box standing on the floor or hang on the wall



Vibratory Polishing Machine Technical Drawing:

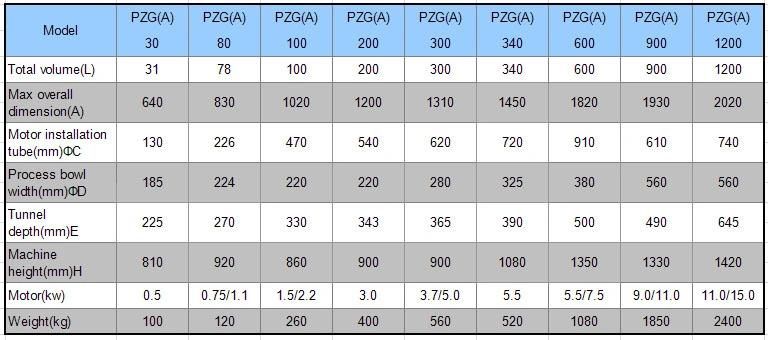

Model	Total volume(L)	Max overall dimension A (mm)	Motor installation tube C(mm)	Process bowl width D(mm)	Tunnel depth E(mm)	Machine height H(mm)	Motor(kw)	Weight(kg)
PZG(A)  100	100	1020	470	220	330	860	1.5/2.2	260

Vibratory Polishing Machine Technical Data:

Vibratory Finishing Equipment Optional settings:
















FAQ:

Q: How is HUMO ?
Zhejiang HUMO Polishing Grinder Manufacture Co., Ltd. is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 200000 square meters factory
-more than 500 employees
-outputs over 60,000 tons of media chips,over 5000 sets of finishing machines and over 10000 tons of compounds annually
-our products sell well both in domestic and world markets, such as United States of America, Japan, Korea, Australia, Singapore, Malaysia, Turkey, UK, Italy, Spain, Germany, France, Sweden, Switzerland etc, over 50 countries total

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is the equipment warranty?
1 year warranty for all  Machinery equipment

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram;

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
