• Model NO.：VBS
• Working Style：Shaking
• Disc Diameter：Customer
• Variable Speed：With Variable Speed
• Machine Size：300L, 10 Cubic Feet
• Size：1370X1370X960mm
• Weight：650kg
• Power：3.7,5 Kw
• Separation Hole：20mm, 25mm, or Customized
• Dosing Pump：Andose 9L,H
• Sound Cover：Airtec
• Speed Converter：Bosch Rexroth
• Control Box：Standing on Floor or Hang on Wall
• PU：20mm
• PU Material：Dow Chemicals
• Transport Package：Wooden Box
• Specification：300L
• Trademark：Inovatec
• Origin：Huzhou, China
• HS Code：84639000
• Production Capacity：3000

Basic Info.

Model NO. VBS Working Style Shaking Disc Diameter Customer Variable Speed With Variable Speed Machine Size 300L, 10 Cubic Feet Size 1370X1370X960mm Weight 650kg Power 3.7/5 Kw Separation Hole 20mm, 25mm, or Customized Dosing Pump Andose 9L/H Sound Cover Airtec Speed Converter Bosch Rexroth Control Box Standing on Floor or Hang on Wall PU 20mm PU Material Dow Chemicals Transport Package Wooden Box Specification 300L Trademark Inovatec Origin Huzhou, China HS Code 84639000 Production Capacity 3000

Product Description

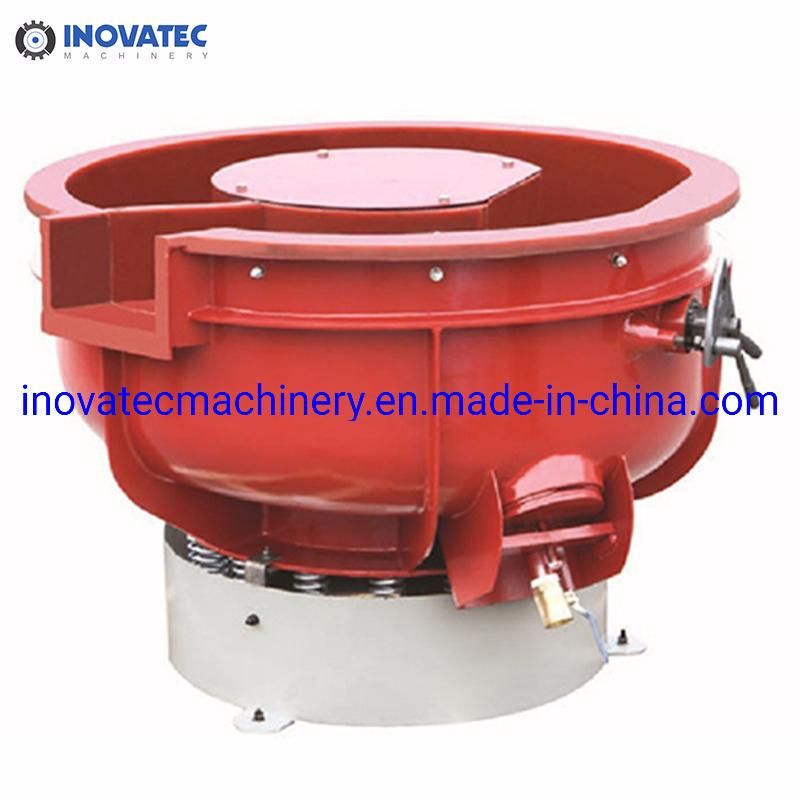

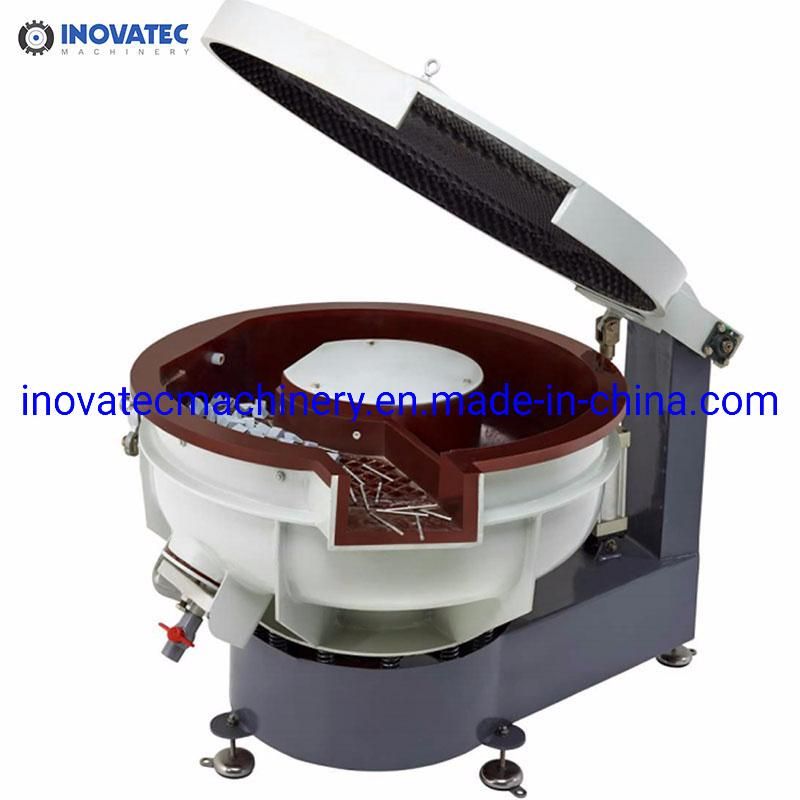

Bowl Shape Surface Deburring Vibratory Finishing Polishing
Catalog Download
https://inovatecmachinery.en.made-in-china.com/Product-Catalogs/


Our vibratory finishing equipment VBS (B) are suitable for deburring and metal polishing of aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.

Vibratory Finishing Equipment Product Description:

In the mass finishing process, a container consisting of the workpieces and tumbling media is subjected to a controlled gyratory vibration. The vibration causes the tumbling media and workpieces to rub against each other, resulting in a polished look. Vibratory deburring is one of the most cost-effective mass finishing processes as it requires minimal or no labor.

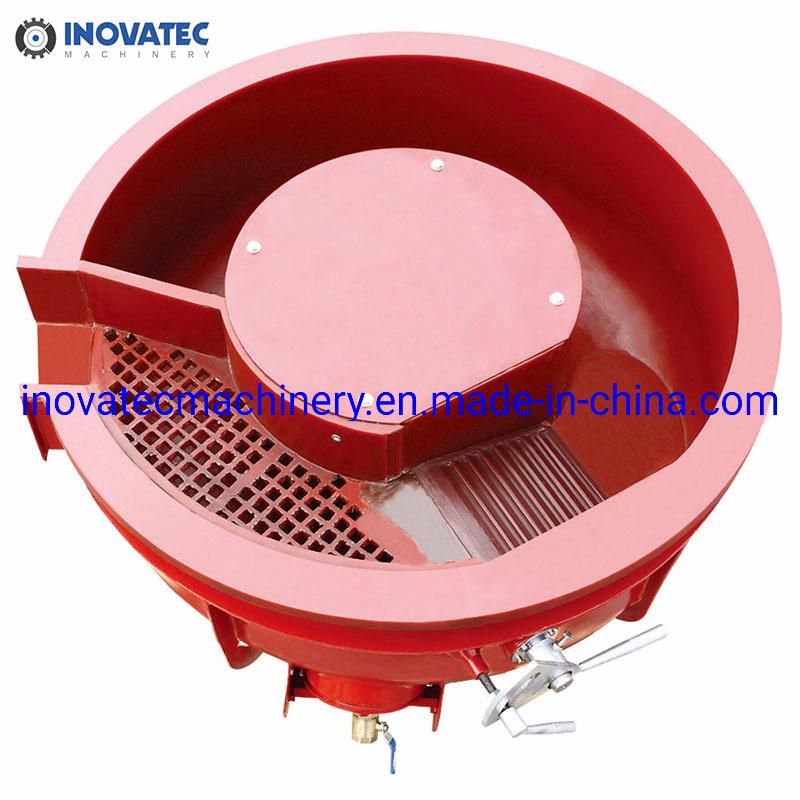

Inovatec offers continuous feed and batch feed variants of tumbling equipment. The unload flap and separation screen allows quick separation of workpieces from the tumbling media. Our VBS (B) series machine has an extended separation deck with multiple separation holes.

Applications includes: what is deburring, types of deburring process, steel deburring

Vibratory Finishing Equipment Feature:

• Digital process timer
• Low profile design
• Wide opening for big size parts
• Stress relieved and enhanced with blasting
• Default manual parts media separation
• Extended separation deck
• Wear resistant PU lining from Dow Chemicals

Vibratory Finishing Equipment Optional setting:

• Optional Items
• Sound Cover
• Compound Dosing Pump
• Pneumatic flap control
• Variable Frequency Drives
• Control box standing on the floor or hang on the wall

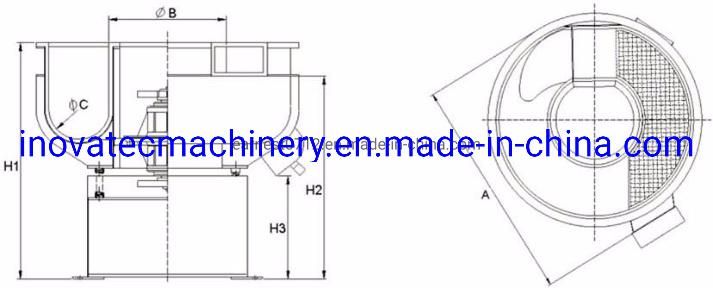

Vibratory Finishing Equipment Technical Drawing:



Vibratory Finishing Equipment Technical Data:

Model	VBS(B)100	VBS(B)150	VBS(B)200	VBS(B)300	VBS(B)400	VBS(B)600
Total volume(L)	100	150	200	270	480	660
Max overall dimension(mm) A	1080	1170	1200	1370	1430	1860
Motor installation tube(mm) B	φ460	φ460	φ530	φ630	φ630	φ900
Process bowl width(mm) C	φ220	φ260	φ252	φ275	φ330	φ390
Unload width(mm)	250	210	250	320	380	470
Machine height(mm) H1	980	860	940	960	1270	1140
Unload height(kw) H2	800	710	770	760	1090	925
Media unload height(kg) H3	470	440	360	290	570	400
Motor(kw)	1.5/2.2	2.2	3	3.7/5.0	5	5.5/7.5
Weight(kg)	280	320	460	650	780	1180

Vibratory Finishing Equipment Product info:

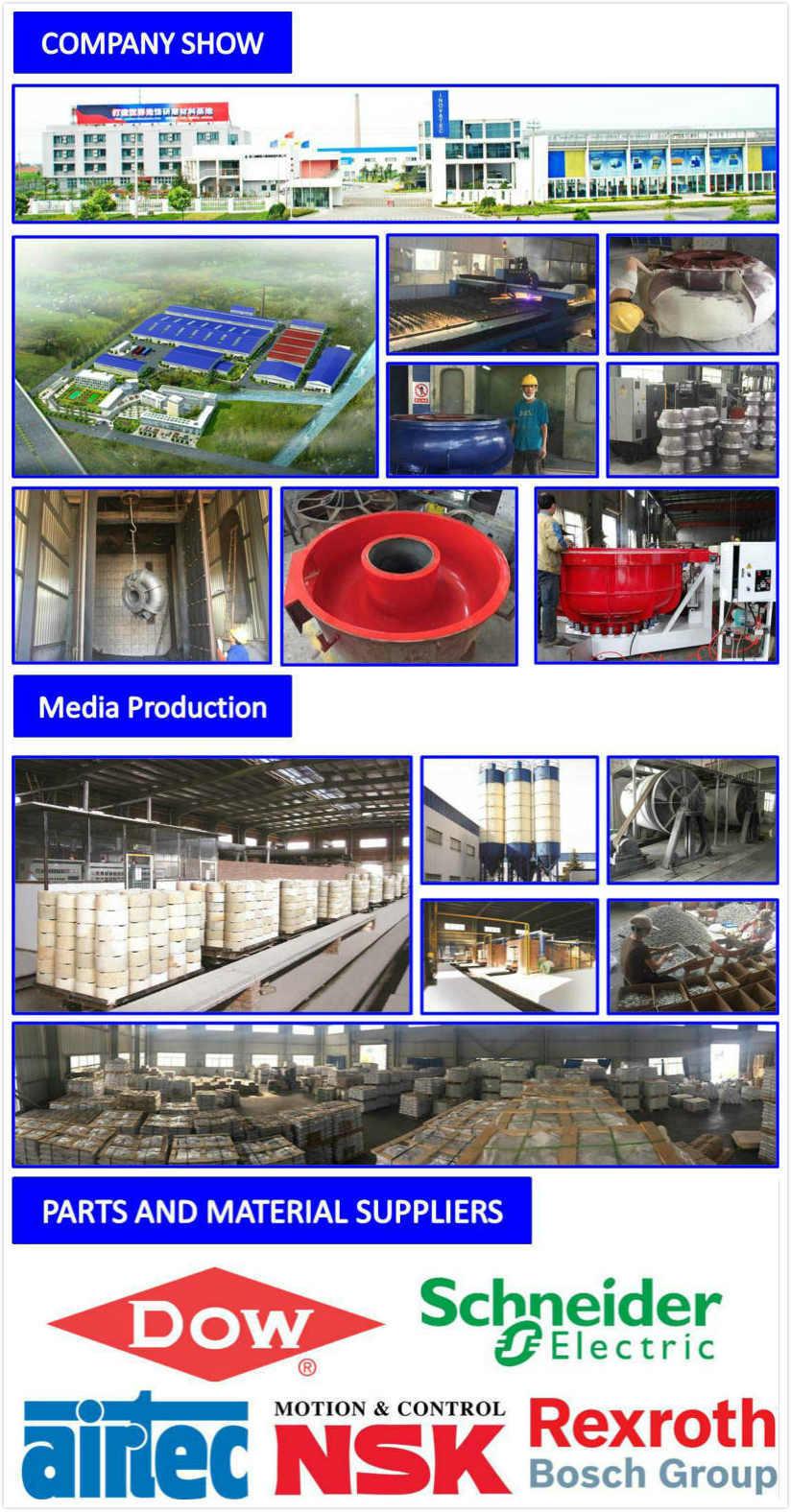

Vibratory Finishing Equipment Company introduction:

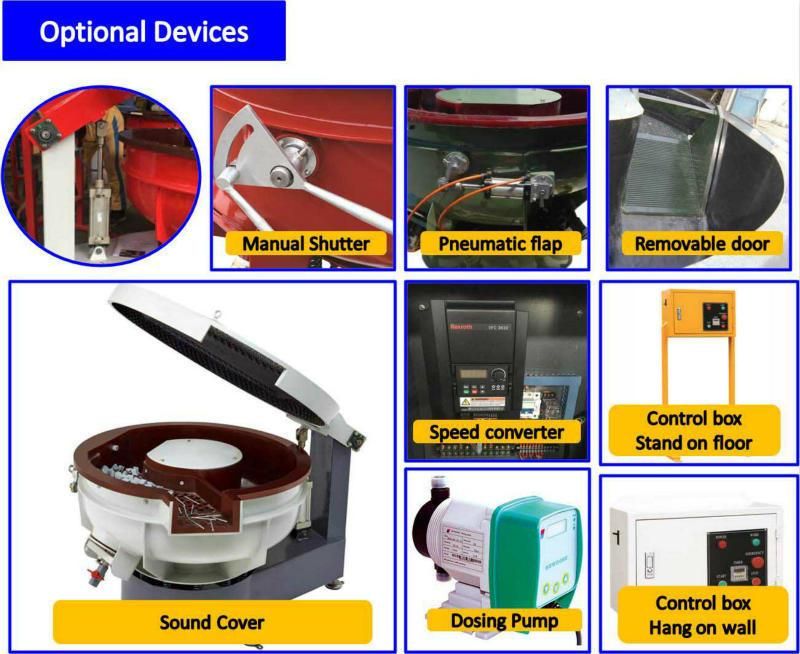

Vibratory Finishing Equipment Optional settings:

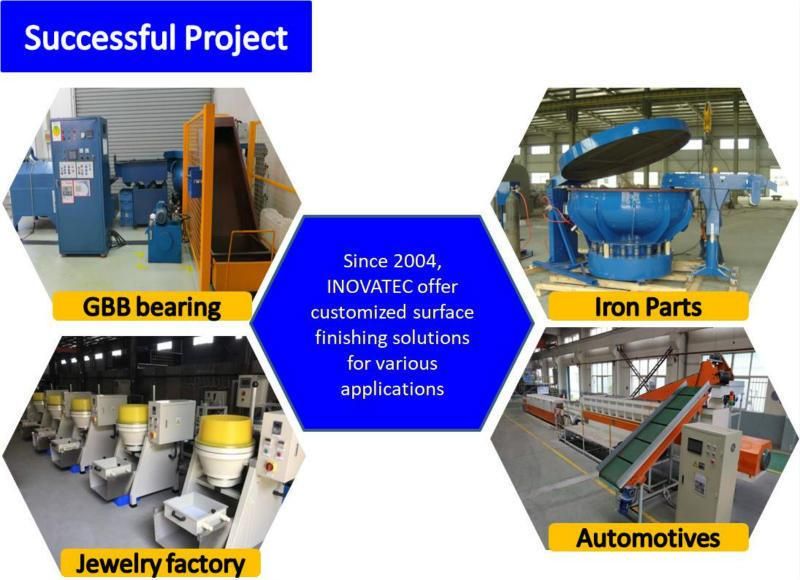

Metal Surface Finishing Treatment Successful Project:

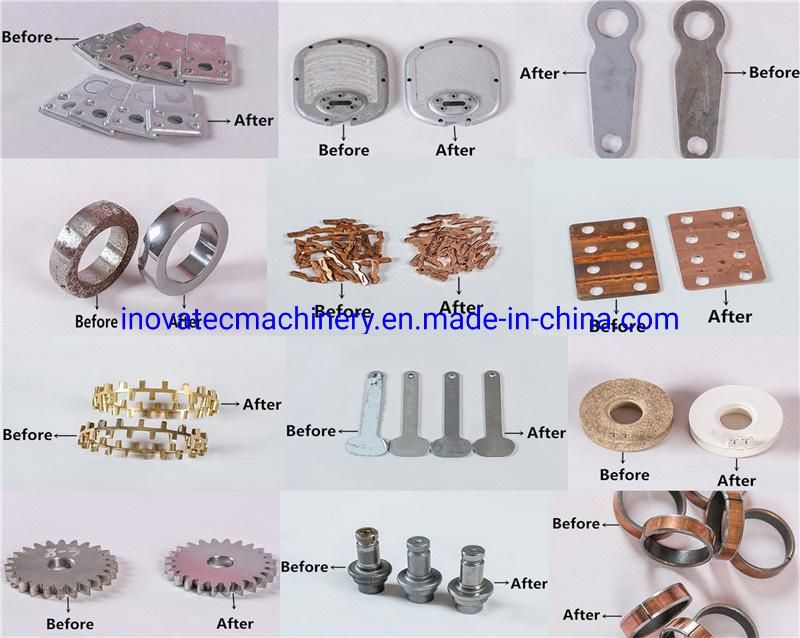

Parts before and after vibratory polishing, vibratory deburring, cleaning, edge rounding, descaling, degreasing, de-oiling, cleaning, edge breaking,radiusing:

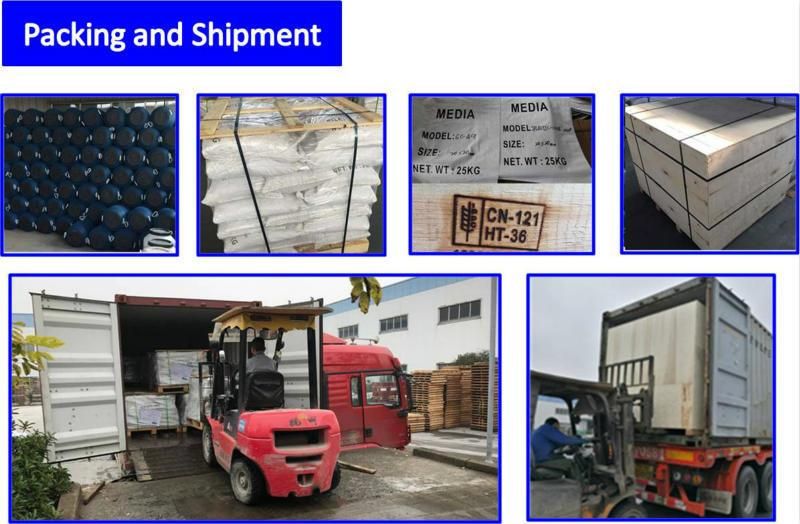

Mass Finishing Equipment and Tumbling Media Packing and shipment:




Payment:



FAQ:

Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.

Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
