• Model NO.：ENW-5
• Working Style：Centrifugal
• Disc Diameter：115mm
• Variable Speed：With Variable Speed
• Lead Time：30-45days
• Usage：Industrial
• Product Type：Cosmetic
• Grinding Rotor：Turbo
• Transport Package：Wooden Case
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：879820090
• Production Capacity：200-2000L

Basic Info.

Model NO. ENW-5 Working Style Centrifugal Disc Diameter 115mm Variable Speed With Variable Speed Lead Time 30-45days Usage Industrial Product Type Cosmetic Grinding Rotor Turbo Transport Package Wooden Case Trademark ELE Origin Shanghai, China HS Code 879820090 Production Capacity 200-2000L

Product Description

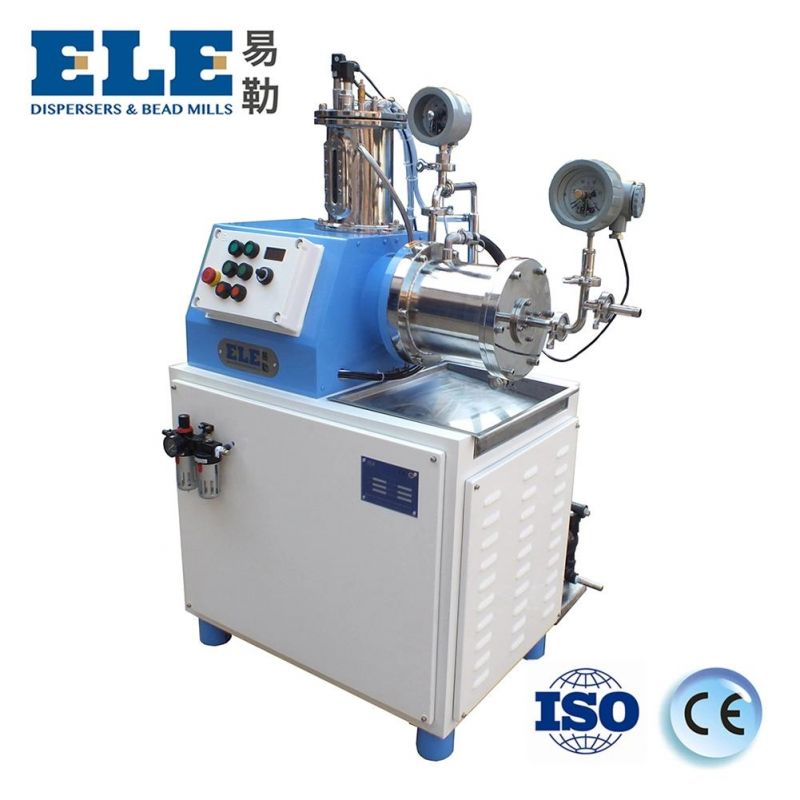

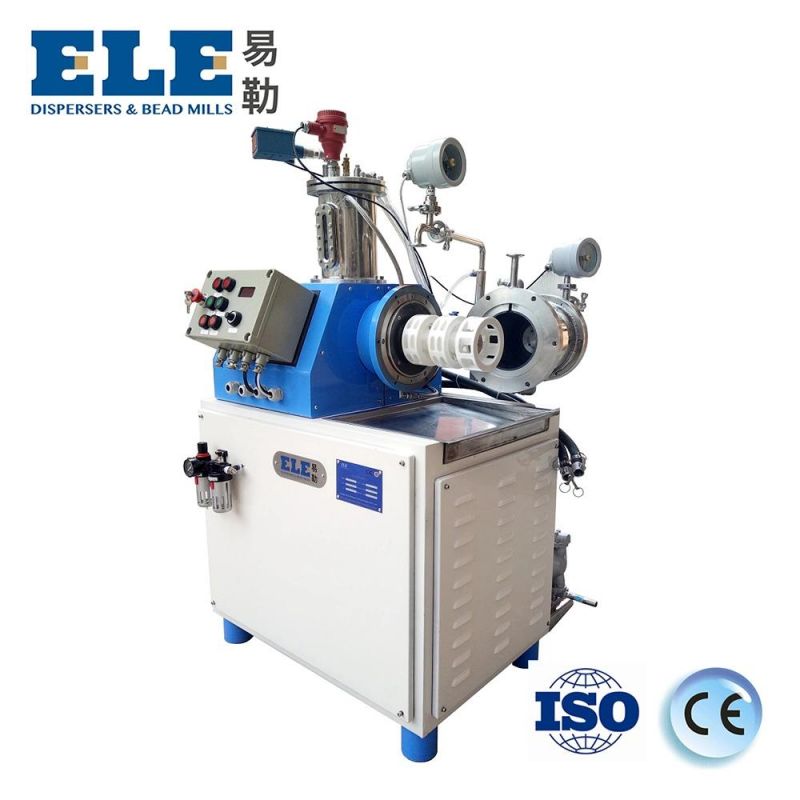

Paint wet Grinder beads mill (EDW)

Features:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, German BURGMANN double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production
6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption





Specifications:

Model	Chamber Volume (ml)	Main Power(kw)	Rotation Speed      (rpm)	Capacity (L/h)	Dimension(mm)	Weight (kgs)
ENW-5	5	7.5	1440	200	1300*1050*450	650
ENW-15	15	18.5	1440	500	1600*1450*650	1200
ENW-30	30	37	1260	1200	1650*1550*750	1700
ENW-50	50	55	980	2000	1900*1850*850	2300
ENW-100	100	110	860	3000	2300*2150*950	3800
